Description

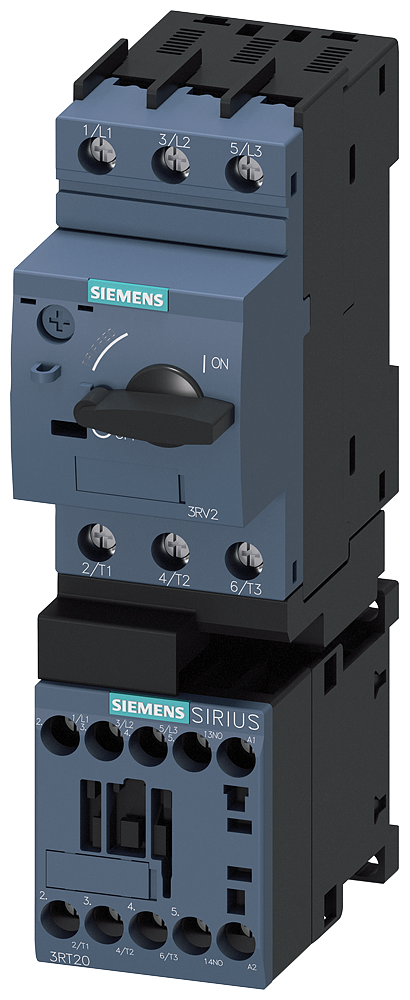

LOAD FEEDER FUSELESS DIRECT START, AC 400V, SZ S00 0.35. . .0.5A, AC 230V SCREW CONNECTION FOR RAIL-MOUNTING, TYPE OF COORDINATION 2, IQ = 150KA (ALSO FULFILLS TYPE OF COORDINATION 1) 1NO (CONTACTOR)STARTER DOL S00 0.35-0.5A 230VAC SCREW
Siemens 3RA21100FA151AP0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Ambient temperature, upper operating limit
- 60 °C
- Coordination class according to IEC 60947-4-3
- Class 2
- Country of Origin
- DE
- Degree of protection (IP)
- IP20
- Degree of protection (NEMA)
- Other
- Depth
- 97 mm
- External reset possible
- false
- Height
- 167 mm
- Kind of motor starter
- Other
- Number of command positions
- 1
- Number of indicator lights
- 0
- Overload release current setting
- 0.35 A
- Rail mounting possible
- true
- Rated conditional short-circuit current, type 1, 480 Y/277 V
- 65000 A
- Rated conditional short-circuit current, type 1, 600 Y/347 V
- 30000 A
- Rated conditional short-circuit current, type 2, 230 V
- 150000 A
- Rated conditional short-circuit current, type 2, 400 V
- 150000 A
- Rated control supply voltage Us at AC 50HZ
- 230 V
- Rated control supply voltage Us at AC 60HZ
- 230 V
- Rated operation current at AC-3, 400 V
- 0.5 A
- Rated operation current Ie
- 0.5 A
- Rated operation power at AC-3, 400 V
- 0.12 kW
- Release class
- CLASS 10
- Suitable for emergency stop
- true
- Supporting protocol for ASI
- false
- Supporting protocol for AS-Interface Safety at Work
- false
- Supporting protocol for CAN
- false
- Supporting protocol for Data-Highway
- false
- Supporting protocol for DeviceNet
- false
- Supporting protocol for DeviceNet Safety
- false
- Supporting protocol for EtherNet/IP
- false
- Supporting protocol for Foundation Fieldbus
- false
- Supporting protocol for INTERBUS
- false
- Supporting protocol for INTERBUS-Safety
- false
- Supporting protocol for LON
- false
- Supporting protocol for MODBUS
- false
- Supporting protocol for other bus systems
- false
- Supporting protocol for PROFIBUS
- false
- Supporting protocol for PROFINET CBA
- false
- Supporting protocol for PROFINET IO
- false
- Supporting protocol for PROFIsafe
- false
- Supporting protocol for SafetyBUS p
- false
- Supporting protocol for SERCOS
- false
- Supporting protocol for SUCONET
- false
- Supporting protocol for TCP/IP
- false
- Temperature compensated overload protection
- true
- Type of electrical connection of main circuit
- Screw connection
- Voltage type for actuating
- AC
- Width
- 45 mm
- With fuse
- false
- With short-circuit release
- true
- With transformer
- false
