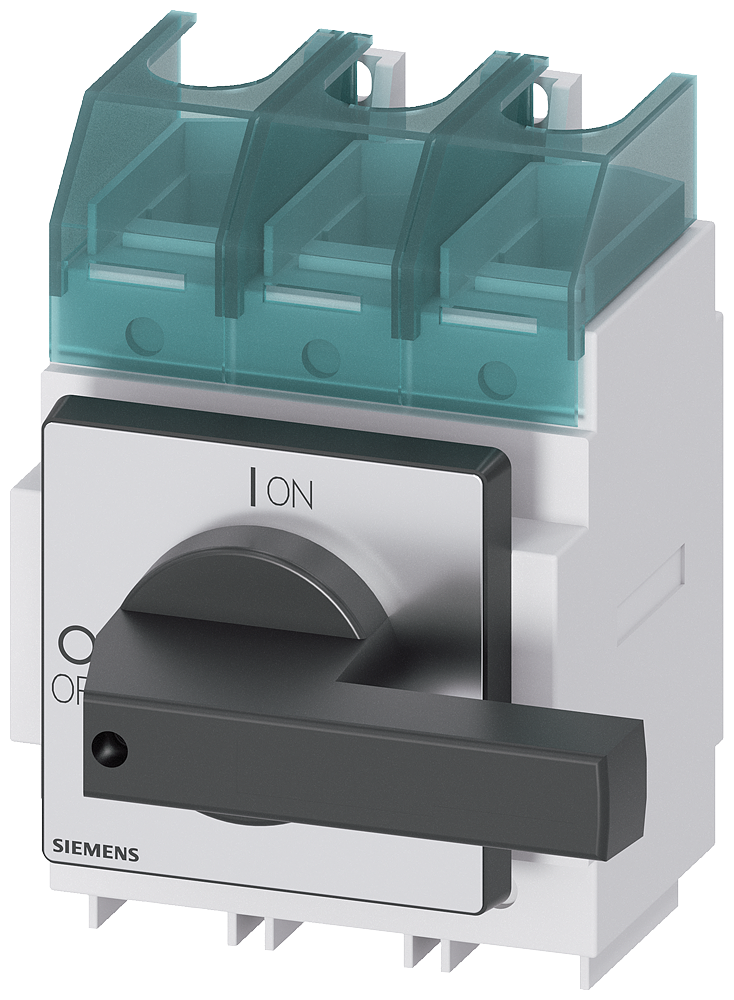

Siemens 3LD2330-0TK11
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Siemens 3LD2330-0TK11 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Colour control element
- Black
- Country of Origin
- DE
- Degree of protection (IP), front side
- IP40
- Degree of protection (NEMA)
- Other
- Device construction
- Built-in device fixed built-in technique
- Interlockable
- true
- Max. rated operation voltage Ue AC
- 690 V
- Motor drive integrated
- false
- Motor drive optional
- false
- Number of auxiliary contacts as change-over contact
- 0
- Number of auxiliary contacts as normally closed contact
- 0
- Number of auxiliary contacts as normally open contact
- 0
- Number of poles
- 3
- Number of switches
- 1
- Rated operation power at AC-23, 400 V
- 132 kW
- Rated operation power at AC-3, 400 V
- 50 kW
- Rated permanent current at AC-21, 400 V
- 160 A
- Rated permanent current at AC-23, 400 V
- 132 A
- Rated permanent current Iu
- 160.0 A
- Rated short-time withstand current lcw
- 4 kA
- Suitable for front mounting 4-hole
- false
- Suitable for front mounting centre
- false
- Suitable for ground mounting
- true
- Type of control element
- Toggle
- Type of electrical connection of main circuit
- Frame clamp
- Version as emergency stop installation
- false
- Version as main switch
- true
- Version as maintenance-/service switch
- true
- Version as reversing switch
- false
- Version as safety switch
- true
- Voltage release optional
- false
