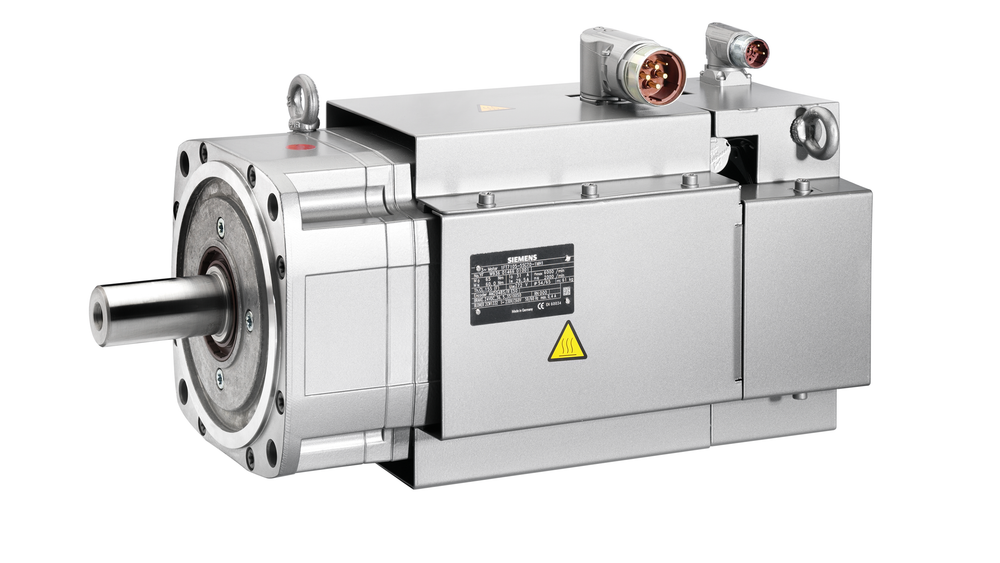

Siemens 1FT7084-5SF71-1BA0

Additional Product Information

• Commodity Code
  • 85015220
• Country of origin
  • Germany
• EAN
  • Not available
• LKZ_FDB/ CatalogID
  • SD.NC61KT-1FT7
• Obligation Category for taking back electrical and electronic equipment after use
  • No obligation to take back electrical and electronic equipment after use
• Product Group
  • 9693
• Returnable
  • No
• RoHS Compliance
  • Since: 07/01/2006
• UPC
  • Not available

Delivery Information

• Delivery Time
  • 30 Day/Days
• Export Control Regulations
  • AL : N / ECCN : N
• Net Weight (lb)
  • 55,124 lb
• Package size unit of measure
  • in
• Packaging Dimension
  • Not available
• Packaging Quantity
  • 1
• Product Dimensions (W x L x H)
  • Not available
• Quantity Unit
  • 1 Piece

Specifications

• 1 m measuring surface sound pressure level acc. to DIN EN ISO 1680 maximum [dB]
  • 70
• Arrangement of electrical connectors
  • Connector turnable
• Axial runout tolerance
  • N
• Color of the enclosure
  • Pearl dark grey RAL 9023 (standard)
• Concentricity tolerance
  • N
• Consumed current at winding overtemperature 100 K rated value [A]
  • 18.5
• Consumed current maximum [A]
  • 77
• Consumed standby current of the brake [A]
  • 1
• Current for converter-fed operation maximum [A]
  • 56
• Current for converter-fed operation rated value [A]
  • 30
• DC link voltage [V]
  • 720
• Design of rotating electrical machines acc. to code I
  • IM B5 (compatible with 1FT6)
• Design of the AS shaft end on drive side
  • Fitted key and keyway
• Design of the AS shaft end on drive side abnormal
  • no
• Design of the motor
  • Permanent-magnet synchronous motor
• Design of the sensor Integrated
  • Encoder AS24DQI: absolute encoder single-turn 24 bits
• Efficiency in percent [%]
  • 94
• Electrical time constant [ms]
  • 15.6
• Impedance of stator phase at winding overtemperature 100 K [Ohm]
  • 0.18
• Material of the permanent magnets
  • Rare-earth magnet material
• Mechanical power output at winding overtemperature 100 K calculated [W]
  • 8482
• Mechanical power output at winding overtemperature 100 K rated value [kW]
  • 7.2
• Mechanical power output at winding overtemperature 60K calculated [W]
  • 6754
• Mechanical power output for duty type S3-25% at winding overtemperature 100 K calculated [W]
  • 13257
• Mechanical power output for duty type S3-40% at winding overtemperature 100 K calculated [W]
  • 13257
• Mechanical power output for duty type S3-60% at winding overtemperature 100 K calculated [W]
  • 10336
• Mechanical time constant [ms]
  • 1.4
• Moment of inertia of rotor [kg.m2]
  • 0.0045
• Moment of inertia of rotor with brake [kg.m2]
  • 0.006
• Motor type
  • Compact
• Net Weight in Kg
  • 25.004
• Net weight of the motor [kg]
  • 25
• Net weight of the motor with brake [kg]
  • 29
• Net weight of the motor without brake [kg]
  • 25
• Number of motor poles
  • 10
• Operating power optimum [kW]
  • 7.2
• Power loss [W] iron [W]
  • 274.002784
• Power loss [W] of the harmonic [W]
  • 36
• Product component Drive-CLiQ interface
  • yes
• Product component Holding brake
  • no
• Protection class IP
  • IP64
• Radial rigidity [Nm/rad]
  • 65100
• Radial runout tolerance
  • N
• Rotary voltage coefficient (kE) at winding overtemperature 100 K [V/s]
  • 0.001383
• Rotating field inductance of the transverse axis [mH]
  • 2.8
• shaft height [mm]
  • 80
• Size of connector at the connection for three-phase motors
  • 1.5
• Speed at winding overtemperature 100 K maximum [1/min]
  • 7000
• Speed at winding overtemperature 60K maximum [1/min]
  • 7000
• Speed for converter-fed operation maximum [1/min]
  • 7000
• Speed maximum permissible [1/min]
  • 8000
• Speed optimum [1/min]
  • 3000
• Speed rated value [1/min]
  • 3000
• Stall current at winding overtemperature 100 K [A]
  • 21
• Stall current at winding overtemperature 60K [A]
  • 16.5
• Stall current for duty type S3-25% [A]
  • 32.4
• Stall current for duty type S3-40% [A]
  • 28
• Stall current for duty type S3-60% [A]
  • 25.3
• Static torque for duty type S1 at winding overtemperature 100 K [N.m]
  • 27
• Static torque for duty type S1 at winding overtemperature 60K [N.m]
  • 21.5
• Static torque for duty type S3-25% [N.m]
  • 42.2
• Static torque for duty type S3-40% [N.m]
  • 36.5
• Static torque for duty type S3-60% [N.m]
  • 32.9
• Supply voltage [V]
  • 400
• Thermal time constant [min]
  • 35
• Torque at winding overtemperature 100 K rated value [N.m]
  • 23
• Torque constant at winding overtemperature 100 K [N.m/A]
  • 1.3
• Torque maximum [N.m]
  • 81
• Type of cooling
  • Forced ventilation
• Type of insulation of stator phase acc. to EN 60034-1
  • Temperature class 155 (F) for a winding temperature rise of ΔT = 100 K at an ambient temperature of 40 °C (104 °F)
• Type of the temperature monitoring
  • KTY84 temperature sensor in the stator winding
• Vibration severity
  • Grade A
