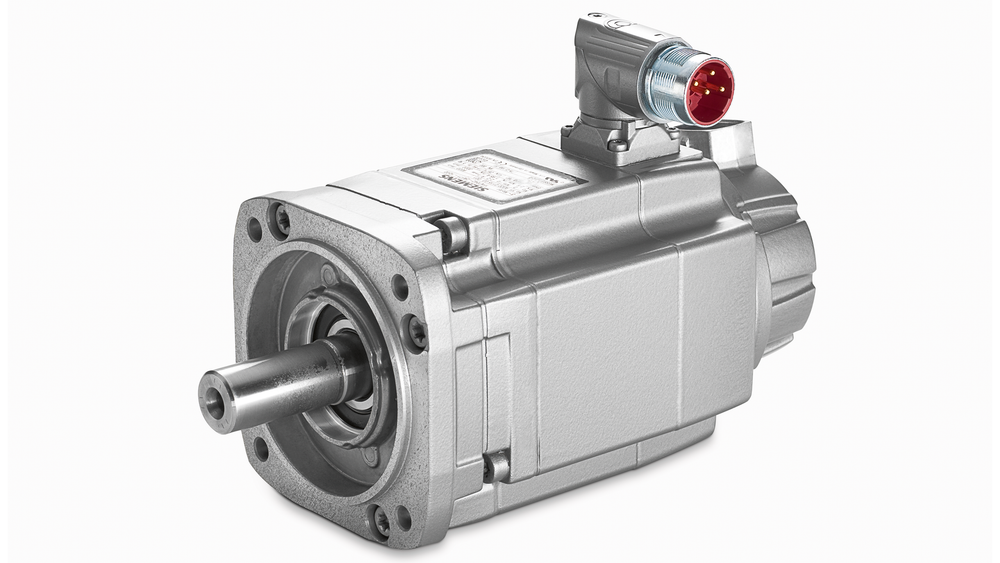

Siemens 1FK7042-2AF71-1QG0

Additional Product Information

• Commodity Code
  • 85015220
• Country of origin
  • Germany
• EAN
  • Not available
• LKZ_FDB/ CatalogID
  • SD.NC60KT-1FK7
• Obligation Category for taking back electrical and electronic equipment after use
  • No obligation to take back electrical and electronic equipment after use
• Product Group
  • 9621
• Returnable
  • No
• RoHS Compliance
  • Since: 07/01/2006
• UPC
  • 887621241261

Delivery Information

• Delivery Time
  • 10 Day/Days
• Export Control Regulations
  • AL : N / ECCN : N
• Net Weight (lb)
  • 10,143 lb
• Package size unit of measure
  • in
• Packaging Dimension
  • Not available
• Packaging Quantity
  • 1
• Product Dimensions (W x L x H)
  • Not available
• Quantity Unit
  • 1 Piece

Specifications

• 1 m measuring surface sound pressure level acc. to DIN EN ISO 1680 maximum [dB]
  • 55
• Arrangement of electrical connectors
  • Connectors for signals and power rotatable
• Axial runout tolerance [mm]
  • 0.08
• Certificate of suitability
  • cURus
• Closing time of the holding brake [ms]
  • 30
• Coil current of the holding brake at DC at 24 V maximum [A]
  • 0.5
• Color of the enclosure
  • Standard painting (Anthracite RAL 7016)
• Concentricity tolerance [mm]
  • 0.08
• Consumed current at winding overtemperature 100 K rated value [A]
  • 1.95
• Consumed current maximum [A]
  • 7.6
• Current for converter-fed operation maximum [A]
  • 6
• Current for converter-fed operation rated value [A]
  • 3
• DC link voltage [V]
  • 720
• Design of rotating electrical machines acc. to code I
  • IM B5 (IM V1, IM V3)
• Design of the AS shaft end on drive side
  • Plain shaft
• Design of the motor
  • Permanent-magnet synchronous motor
• Design of the sensor Integrated
  • Encoder AS20DQI: absolute encoder single-turn 20 bits
• Efficiency in percent [%]
  • 89
• Electrical time constant [ms]
  • 7.5
• Holding torque of the holding brake maximum [N.m]
  • 4
• Holding torque of the holding brake minimum [N.m]
  • 3
• Impedance of stator phase at winding overtemperature 100 K [Ohm]
  • 4.67
• Material of the permanent magnets
  • Rare-earth magnet material
• Maximum switching energy of the holding brake [J]
  • 150
• Mechanical power output at winding overtemperature 100 K rated value [kW]
  • 0.82
• Mechanical time constant [ms]
  • 2.15
• Moment of inertia of rotor [kg.cm2]
  • 2.9
• Moment of inertia of rotor with brake [kg.cm2]
  • 3.2
• Motor type
  • Compact
• Net Weight in Kg
  • 4.601
• Net weight of the motor with brake [kg]
  • 5.3
• Net weight of the motor without brake [kg]
  • 4.6
• Number of motor poles
  • 8
• Opening time of the holding brake [ms]
  • 70
• Operating power optimum [kW]
  • 0.82
• Primer of the enclosure
  • without primer
• Product component Drive-CLiQ interface
  • yes
• Radial rigidity [Nm/rad]
  • 15500
• Radial runout tolerance [mm]
  • 0.04
• Rotating field inductance of the transverse axis [mH]
  • 35
• shaft height Rated value Note
  • 48
• Size of connector at the connection for three-phase motors
  • 1
• Speed for converter-fed operation maximum [1/min]
  • 6400
• Speed maximum permissible [1/min]
  • 9000
• Speed optimum [1/min]
  • 3000
• Speed rated value [1/min]
  • 3000
• Stall current at winding overtemperature 100 K [A]
  • 2.2
• Stall current at winding overtemperature 60K [A]
  • 1.8
• Static torque for duty type S1 at winding overtemperature 100 K [N.m]
  • 3
• Static torque for duty type S1 at winding overtemperature 60K [N.m]
  • 2.5
• Thermal time constant [min]
  • 30
• Torque at Imax Inv maximum [N.m]
  • 8.2
• Torque at winding overtemperature 100 K rated value [N.m]
  • 2.6
• Torque constant at winding overtemperature 100 K [N.m/A]
  • 1.375
• Torque maximum [N.m]
  • 10.5
• Type of cooling
  • Natural cooling
• Type of the temperature monitoring
  • KTY84 temperature sensor in the stator winding
• Vibration severity
  • Grade A
