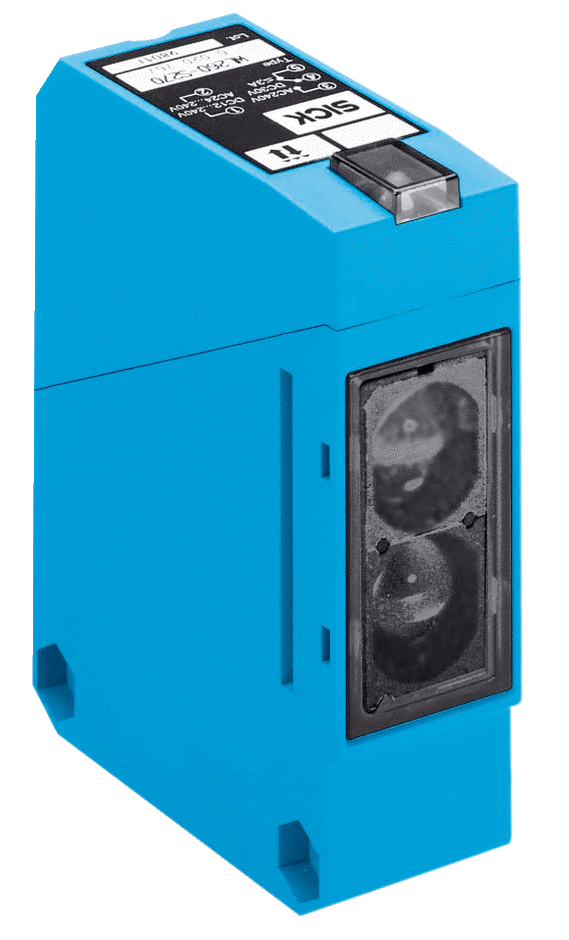

SICK 6020977
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SICK 6020977 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ECl@ss 5.0
- 27270902
- ECl@ss 5.1.4
- 27270902
- ECl@ss 6.0
- 27270902
- ECl@ss 6.2
- 27270902
- ECl@ss 7.0
- 27270902
- ECl@ss 8.0
- 27270902
- ECl@ss 8.1
- 27270902
- ECl@ss 9.0
- 27270902
- ETIM 5.0
- EC002717
- ETIM 6.0
- EC002717
- UNSPSC 16.0901
- 39121528
Features
- Adjustment
- Potentiometer, 270°
- Angle of Dispersion
- Approx. 1.7°
- Dimensions (W x H x D)
- 25 mm x 78 mm x 63 mm
- Housing Design (Light emission)
- Rectangular
- Light Source
- LED (Average service life: 100,000 h at TU = +25 °C)
- Light Spot Size (distance)
- Ø 240 mm (8 m)
- Sensing Range
- 0.01 m ... 9.5 m (P250)
- 0.01 m ... 11.5 m (Reflector PL80A)
- Sensing Range Max.
- 0.01 m ... 14 m (Reflector PL80A)
- Sensor/Detection Principle
- Photoelectric retro-reflective sensor, Dual lens
- Type of Light
- Visible red light
Mechanics/Electronics
- Ambient Operating Temperature
- –25 °C ... +55 °C
- Ambient Storage Temperature
- –40 °C ... +70 °C
- Circuit Protection
- B (B = inputs and output reverse-polarity protected)
- A (A = VS connections reverse-polarity protected)
- C (C = interference suppression)
- D (D = outputs overcurrent and short-circuit protected)
- Connection Type
- Male connector M12, 4-pin
- Enclosure Rating
- IP 67
- Housing Material
- ABS plastic
- Items Supplied
- Reflector P250, mounting bracket BEF-W260
- Optics Material
- Plastic, PMMA
- Output Current IMax.
- 100 mA
- Output Type
- PNP, Open Collector
- Polarisation Filter
- Yes
- Power Consumption
- ≤ 35 mA (Without load)
- Protection Class
- II (Reference voltage: 50 V DC)
- Response Time
- ≤ 1.5 ms (Signal transit time with resistive load)
- Ripple
- ≤ 5 Vpp (May not exceed or fall below Uv tolerances)
- Supply Voltage
- 10 V DC ... 30 V DC (Limit values when operated in short-circuit protected network: max. 8 A)
- Switching Frequency
- 333 Hz (With light/dark ratio 1:1)
- Switching Mode
- Light/dark switching
- Switching Mode Selector
- Selectable via light/dark selector
- Test Input sender off
- TE to VS
- UL File No.
- NRNT2.E128350 & NRNT8.E128350
- Weight
- 120 g
