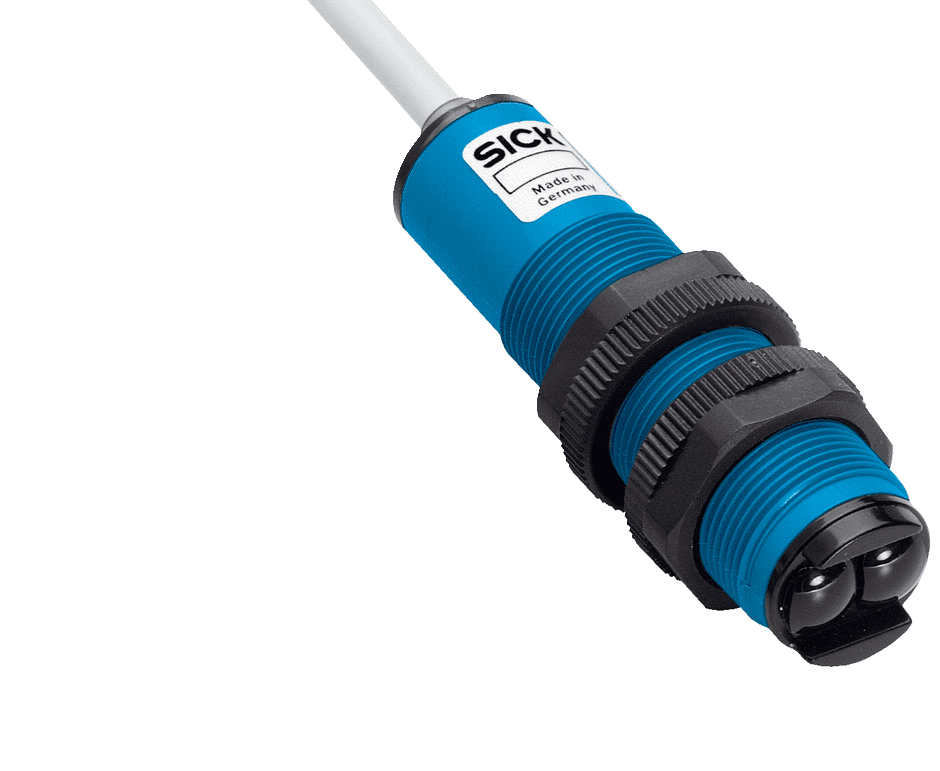

SICK 6013551
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SICK 6013551 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ECl@ss 5.0
- 27270902
- ECl@ss 5.1.4
- 27270902
- ECl@ss 6.0
- 27270902
- ECl@ss 6.2
- 27270902
- ECl@ss 7.0
- 27270902
- ECl@ss 8.0
- 27270902
- ECl@ss 8.1
- 27270902
- ECl@ss 9.0
- 27270902
- ETIM 5.0
- EC002717
- ETIM 6.0
- EC002717
- UNSPSC 16.0901
- 39121528
Features
- Adjustment
- Potentiometer, 270° (Sensitivity)
- Angle of Dispersion
- Approx. 2.8°
- Housing Design (Light emission)
- Cylindrical, straight
- Housing Length
- 78 mm
- Light Source
- LED (Average service life: 100,000 h at TU = +25 °C)
- Light Spot Size (distance)
- Ø 150 mm (3 m)
- Optical Axis
- Axial
- Sensing Range
- 0.05 m ... 3 m (Reflector C110A)
- Sensing Range Max.
- 0.05 m ... 3.7 m (Reflector C110A)
- Sensor/Detection Principle
- Photoelectric retro-reflective sensor
- Thread Diameter (housing)
- M18 x 1
- Type of Light
- Visible red light
Mechanics/Electronics
- Ambient Operating Temperature
- –25 °C ... +70 °C
- Circuit Protection
- B (B = inputs and output reverse-polarity protected)
- C (C = interference suppression)
- D (D = outputs overcurrent and short-circuit protected)
- A (A = VS connections reverse-polarity protected)
- Connection Type
- Male connector M12, 4-pin
- Enclosure Rating
- IP 67
- Housing Material
- Nickel-plated brass metal
- Optics Material
- Plastic, PMMA
- Output Current IMax.
- 100 mA
- Output Type
- PNP, Open Collector (Control wire open: dark switching D.ON)
- Polarisation Filter
- Yes
- Power Consumption
- ≤ 30 mA (Without load)
- Protection Class
- III
- Response Time
- ≤ 2 ms (Signal transit time with resistive load)
- Ripple
- ≤ 10 % (May not exceed or fall below Uv tolerances)
- Supply Voltage
- 10 V DC ... 30 V DC (Limit values)
- Switching Frequency
- 250 Hz (With light/dark ratio 1:1)
- Switching Mode
- Light/dark switching (Control wire open: dark switching D.ON)
- Switching Mode Selector
- Selectable via L/D control cable
- UL File No.
- NMFT2.E175606
- Weight
- 120 g
