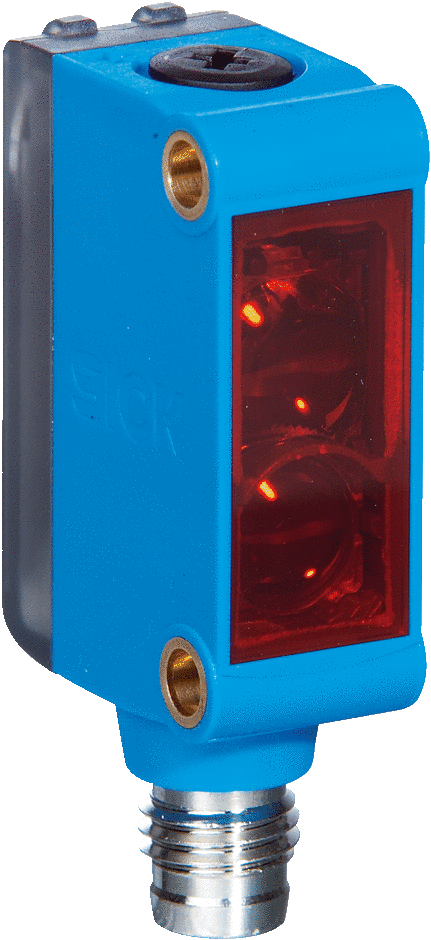

SICK 1052438
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SICK 1052438 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Classifications
- ECl@ss 5.0
- 27270904
- ECl@ss 5.1.4
- 27270904
- ECl@ss 6.0
- 27270904
- ECl@ss 6.2
- 27270904
- ECl@ss 7.0
- 27270904
- ECl@ss 8.0
- 27270904
- ECl@ss 8.1
- 27270904
- ECl@ss 9.0
- 27270904
- ETIM 5.0
- EC002719
- ETIM 6.0
- EC002719
- UNSPSC 16.0901
- 39121528
Features
- Adjustment
- Mechanical spindle, 5 turns
- Dimensions (W x H x D)
- 12 mm x 31.5 mm x 21 mm
- Housing Design (Light emission)
- Rectangular
- Light Source
- PinPoint LED (Average service life: 100,000 h at TU = +25 °C)
- Light Spot Size (distance)
- Ø 6 mm (100 mm)
- Sensing Range
- 35 mm ... 140 mm
- Sensing Range Max.
- 5 mm ... 250 mm (Object with 90 % reflectance (referred to standard white, DIN 5033))
- Sensor/Detection Principle
- Photoelectric proximity sensor, Background suppression
- Type of Light
- Visible red light
- Wave Length
- 650 nm
Mechanics/Electronics
- Ambient Operating Temperature
- –25 °C ... +55 °C (Temperature stability following adjustment +/-10 °C)
- Ambient Storage Temperature
- –40 °C ... +70 °C
- Circuit Protection
- D (D = outputs overcurrent and short-circuit protected)
- B (B = inputs and output reverse-polarity protected)
- A (A = VS connections reverse-polarity protected)
- Connection Type
- Connector M8, 4-pin
- Enclosure Rating
- IP 67
- Housing Material
- ABS/PC plastic
- Optics Material
- Plastic, PMMA
- Output Current IMax.
- ≤ 100 mA (At Uv > 24 V, IA max. = 50 mA)
- Output Type
- PNP
- Power Consumption
- ≤ 30 mA (Without load)
- Protection Class
- III
- Response Time
- < 625 µs (Signal transit time with resistive load)
- Ripple
- ± 10 % (May not exceed or fall below Uv tolerances)
- Signal Voltage PNP HIGH/LOW
- VS - (≤ 3 V) / approx. 0 V
- Supply Voltage
- 10 V DC ... 30 V DC (Limit values when operated in short-circuit protected network: max. 8 A)
- Switching Frequency
- 1,000 Hz (With light/dark ratio 1:1)
- Switching Mode
- Light/dark switching
- Switching Mode Selector
- Selectable via light/dark selector
- UL File No.
- NRKH.E348498 & NRKH7.E348498
- Weight
- 20 g
