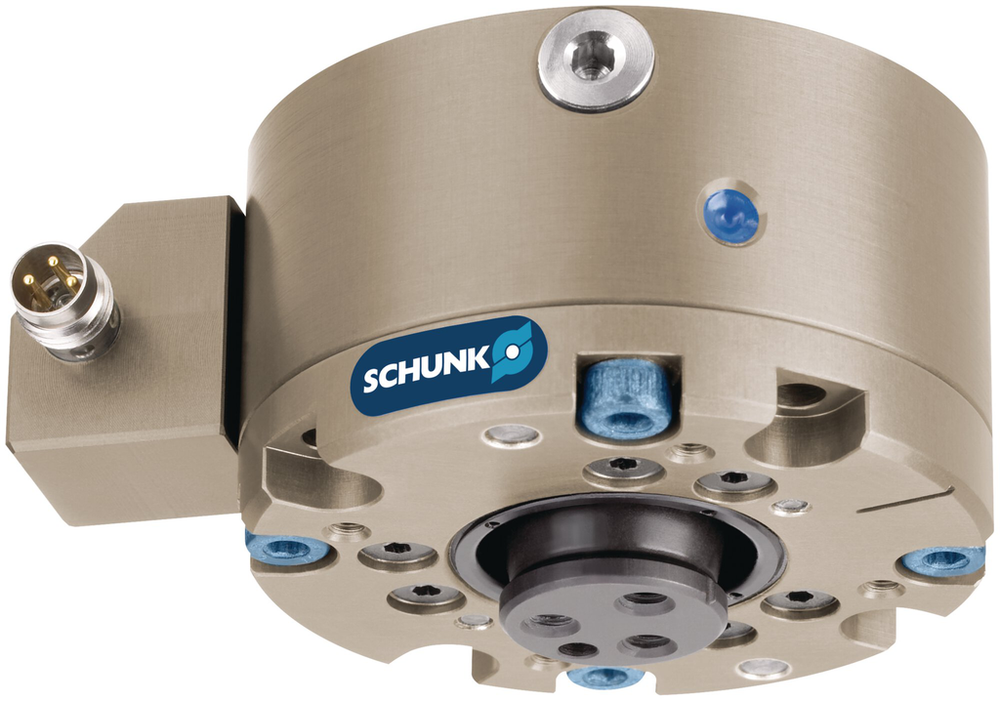

SCHUNK 321361
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
SCHUNK 321361 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Angular deflection
- ± 11 °
- Axial deflection
- 5.6 mm
- Deflection rotatory
- ± 20 °
- Diameter D
- 60 mm
- Height Z
- 45.1 mm
- max.
- 880 N
- Max. ambient temperature
- 60 °C
- Max. force Fd
- 880 N
- Max. operating pressure
- 6.2 bar
- Max. supply voltage
- 30 V
- Min. ambient temperature
- 5 °C
- Min. operating pressure
- 1.4 bar
- Min. supply voltage
- 10 V
- Min. triggering force, axial Fd
- 193 N
- Min. triggering moment, angular Mx, My
- 6.8 Nm
- Min. triggering torque, rotatory Mz
- 6.8 Nm
- Moment Mx max.
- 28 Nm
- Moment My max.
- 28 Nm
- Moment Mz max.
- 24.4 Nm
- Repeat accuracy
- ± 0.025 mm
- Repeat accuracy, rotary
- 5 min
- Responsiveness
- 0.5 mm
- Weight
- 0.32 kg
Williams Automation sells SCHUNK parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
