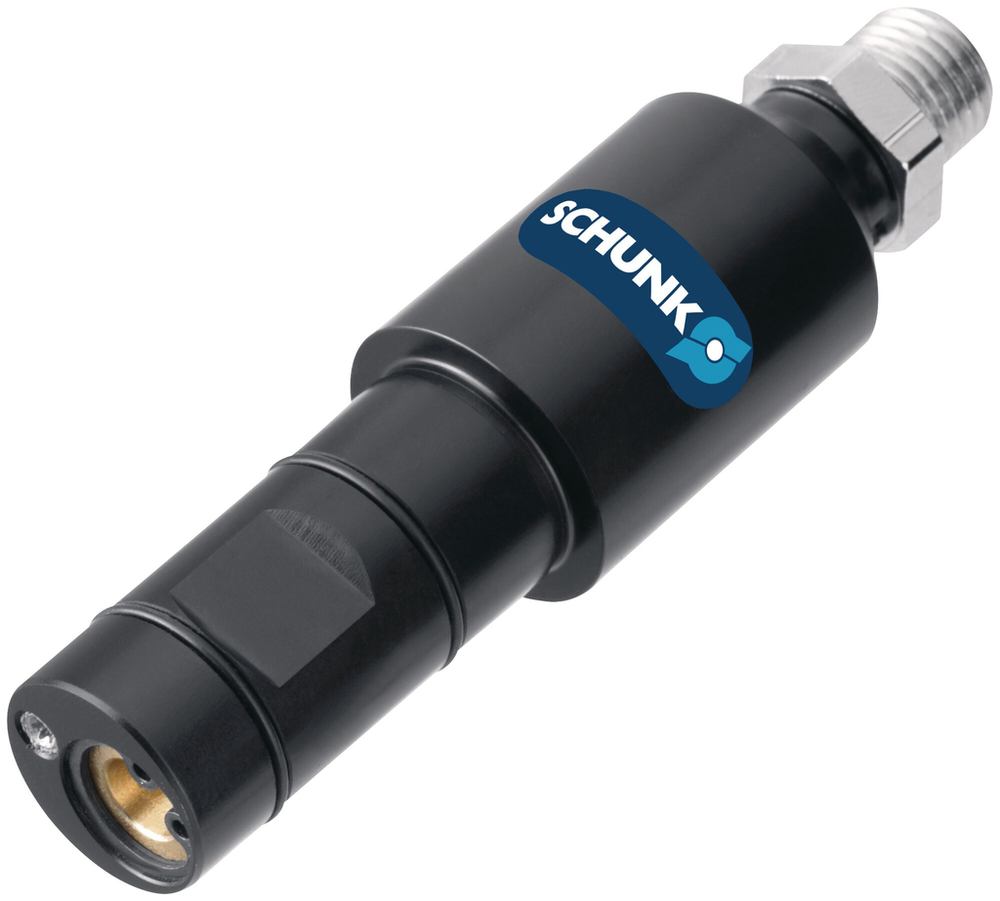

SCHUNK 309121
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
SCHUNK 309121 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Diameter D
- 34 mm
- Height Z
- 110 mm
- Max. ambient temperature
- 90 °C
- Max. operating pressure of the compressed air
- 8 bar
- Max. operating pressure of the coolant
- 60 bar
- Max. permissible RPM
- 20 1/min
- Min. ambient temperature
- 5 °C
- Min. flow rate compressed air
- 220 l/min
- Minimum operating pressure compressed air
- 4 bar
- Min. operating pressure coolant
- 20 bar
- Min. vacuum
- -0.6 bar
- Noise pressure level
- 90 dB(A)
- Nominal flow rate compressed air
- 300 l/min
- Nominal flow rate coolant
- 25 l/min
- Nominal operating pressure compressed air
- 6 bar
- Nominal operating pressure coolant
- 40 bar
- Nominal vaccuum
- -0.8 bar
- Recommended workpiece weight
- 0.28 kg
- Shank diameter
- 20 mm
- Suction cup dimensions
- 30 mm
- Suction force
- 55 N
- Time evacuation
- 1 s
- Time for putting down
- 0.7 s
- Weight
- 0.14 kg
Williams Automation sells SCHUNK parts at huge savings. Search to find the part you need today. If you can't find what you are looking for please Request A Quote from us and we will provide a timely response. You can also call us at 803-761-7027. We look forward to working with you to assist in the best way we can for your industrial needs.
