Description

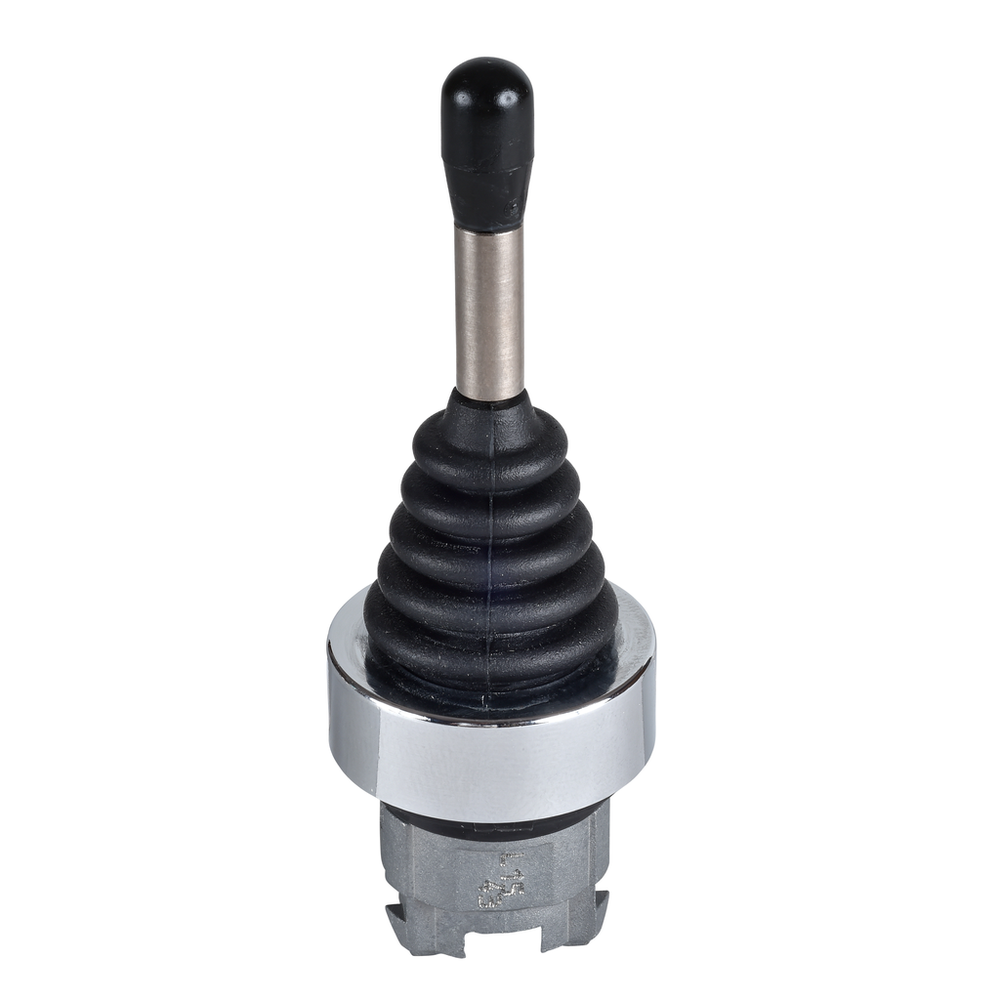

This Harmony XB4 head for joystick controller operates with 4 direction stay-put mechanism. It has a chromium-plated metal bezel. This head with operating shaft provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible joystick controllers and provide a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.Head for joystick controller, Harmony XB4, black metal, 22mm, 4 directions, stay put
Schneider Electric ZD4PA14 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Device Presentation
- basic element
- Mechanical Durability
- 1000000 cycles
- Net Weight
- 0.022 kg
- Operator Position Information
- 5 positions
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class I IEC 60536
- Ik Degree Of Protection
- IK03 IEC 50102
- Ip Degree Of Protection
- IP66 IEC 60529
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Product Certifications
- UL Listed || DNV || LROS (Lloyds register of shipping) || GL || CSA || BV
- Protective Treatment
- TH
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards
- JIS C8201-5-1 || EN/IEC 60947-5-5 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP110718EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bezel Material
- chromium plated metal
- Device Short Name
- ZB4
- Mounting Diameter
- 22 mm
- Operator Direction Information
- 4 directions
- Operator Profile
- 54 mm long operating shaft
- Product Or Component Type
- head for joystick controller
- Range Of Product
- Harmony XB4
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- stay put
