Description

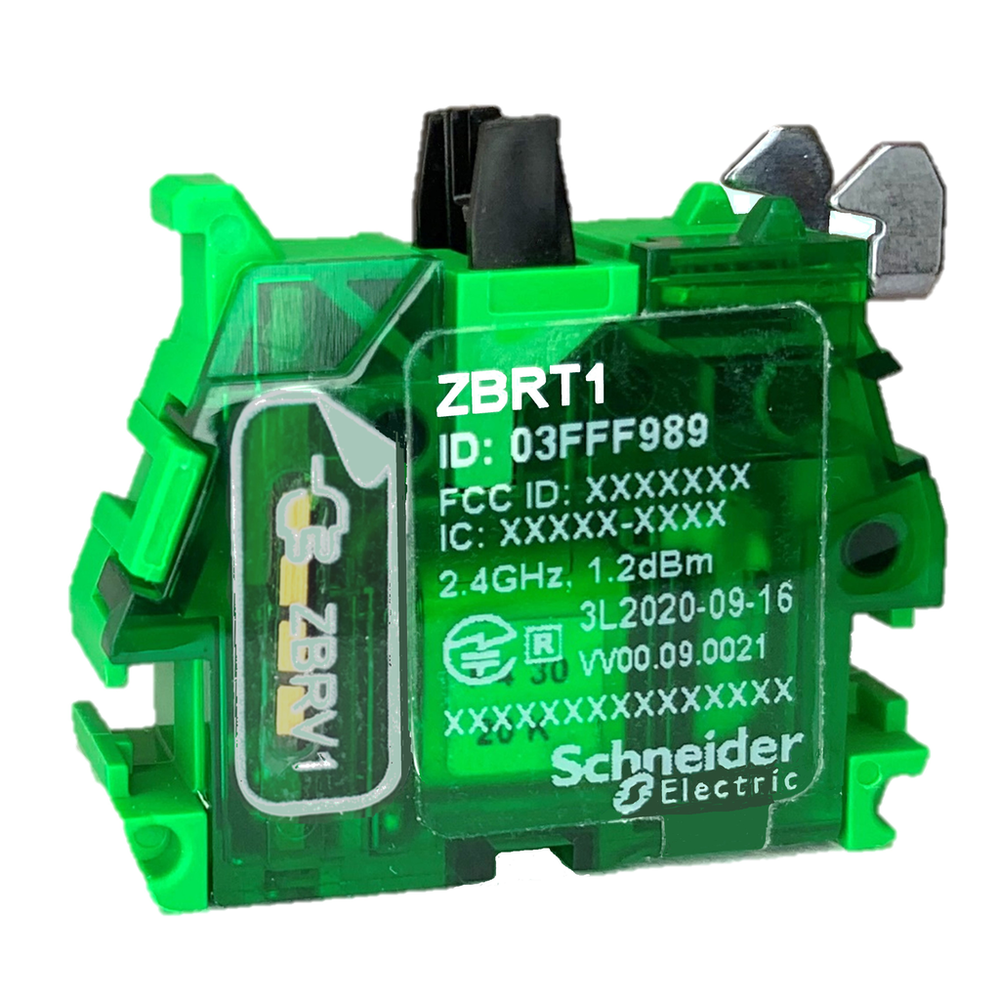

Schneider Electric ZBRT1 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Acquisition Time
- 2 ms
- Antenna Gain
- 0 dBi
- Bandwidth
- 5-5 MHz
- Cad Overall Depth
- 43 mm
- Cad Overall Height
- 41.5 mm
- Cad Overall Width
- 30 mm
- Communication Port Protocol
- Zigbee green power 2.4 GHz IEEE 802.15.4
- Electrical Composition Code
- PW1
- Embedding Depth
- 42 mm
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- Maximum Sensing Distance
- 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
- Max Power Consumption In W
- 1 mW
- Mechanical Robustness
- free fall resistance 1000 mm IEC 60068-2-32
- Modulation Technique
- O-QPSK
- Net Weight
- 0.025 kg
- Number Of Channels
- 16
- Operating Force
- 10 N C/O changing electrical state
- Operating Travel
- 4.3 mm total travel)
- Radio Agreement
- ANATEL || ARIB T66 || FCC || ICASA || RSS
- Response Time
- < 2 ms
- Standards
- CSA C22.2 No 14 || IEC 60947-1 || IEC 60947-5-1 || UL 508
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Directives
- 1999/5/EC - R&TTE directive || 2004/108/EC - electromagnetic compatibility
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
- Ik Degree Of Protection
- IK03 IEC 50102
- Ip Degree Of Protection
- IP30 IEC 60529 back face)
- Mechanical Durability
- 1000000 cycles
- Product Certifications
- CSA || GOST || CCC || C-tick || UL || BT 2006/95/EC
- Relative Humidity
- 95-95 % -40-70 °C without condensation
- Shock Resistance
- 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance
- 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2009013EN
- Environmental Disclosure
- ENVPEP2009013EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Silicon Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Antenna Type
- omnidirectional
- Bezel Material
- plastic
- Device Short Name
- XB5R
- Level Or Class
- 5M00G7W
- Mounting Diameter
- 22 mm
- Product Or Component Type
- wireless and batteryless transmitter
- Range Of Product
- Harmony XB5
- Transmission Frequency
- 2405 MHz
