Description

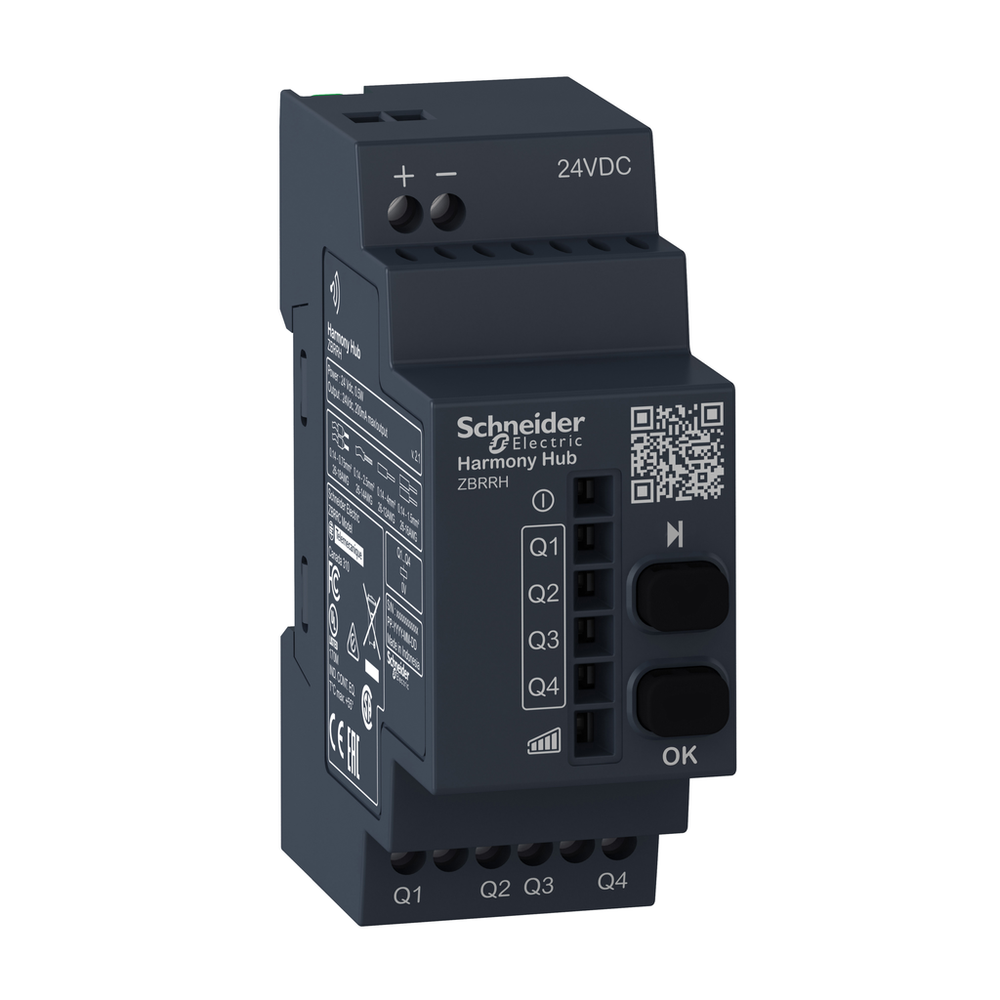

Schneider Electric ZBRRH is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Antenna Gain
- 0 dBi
- Bandwidth
- 5-5 MHz
- Breaking Capacity
- 4.8 W per output)
- Channels Utilisation
- 1 Harmony Hub per receiver
- Communication Port Protocol
- Zigbee green power 2.4 GHz IEEE 802.15.4
- Depth
- 75 mm
- Electrical Connection
- 1 conductor cable 0.14-2.5 mm² - AWG 26...AWG 14 - solid - without cable end IEC 60947-1 || 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - solid - without cable end IEC 60947-1 || 1 conductor cable 0.14-4 mm² - AWG 26...AWG 12 - flexible - with cable end IEC 60947-1 || 2 conductors cable 0.14-1.5 mm² - AWG 26...AWG 16 - flexible - with cable end IEC 60947-1
- Height
- 108 mm
- Housing Material
- self-extinguishing plastic
- Maximum Power Consumption In Va
- 20 VA DC
- Maximum Power Consumption In W
- 20 W DC
- Maximum Sensing Distance
- 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 40 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
- Maximum Switching Current
- 0.2 mA DC
- Maximum Voltage Drop
- <2 V DC 2 A
- Max Power Consumption In W
- 1 mW
- Minimum Switching Current
- 10 mA 5 V DC
- Modulation Technique
- O-QPSK
- Mounting Support
- 35 mm symmetrical DIN rail conforming to EN/IEC 60715 || mounting plate
- Net Weight
- 0.13 kg
- Number Of Channels
- 1
- Operating Position
- any position without derating
- Output Contacts
- 4 PNP
- Output Type
- transistor PNP
- Rated Short-Duration Power Frequency Withstand Voltage
- 1 kV 50 Hz EN/IEC 60947-5-1
- Response Time
- < 30 ms after transmitter clicks
- Short-Circuit Protection
- 0.4 A fuse fast blow
- Status Led
- 1 LED Green power ON || 1 LED green and yellow reception signal || 4 LEDs Green relay ON
- Surge Withstand
- 0.5 kV differential mode IEC 61000-4-5 || 1 kV common mode IEC 61000-4-5
- Tightening Torque
- 0.5-1 N.m EN/IEC 60947-1
- Time Delay Range
- 0.5 s - 15...15 %)
- [Uimp] Rated Impulse Withstand Voltage
- 0.8 kV
- [Us] Rated Supply Voltage
- 24 V DC - 15...20 %
- Utilisation Category
- DC-13 EN/IEC 60947-5-1
- Width
- 36 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Electromagnetic Compatibility
- immunity for industrial environments conforming to EN/IEC 61000-6-2 || conducted and radiated emissions class B conforming to CISPR 22 || electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) conforming to IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m) conforming to IEC 61000-4-3 || electrical fast transient/burst immunity test - test level: 2 kV (power supply wires) conforming to IEC 61000-4-4 || conducted RF disturbances - test level: 10 V conforming to IEC 61000-4-6 || radiated emission conforming to ETSI EN 300 440-1 || conducted emission conforming to EN 300-489-1 || conducted emission conforming to ETSI EN 300 489-3 || radiated emission conforming to ETSI EN 300 440-2 || electrical fast transient/burst immunity test - test level: 1 kV (PNP output wires) conforming to IEC 61000-4-4 || 1.2/50 µs shock waves immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5 || 1.2/50 µs shock waves immunity test - test level: 1 kV (common mode) conforming to IEC 61000-4-5 || immunity to microbreaks and voltage drops - test level: 7 ms conforming to IEC 61000-4-11
- Insulation Resistance
- > 500 MOhm 500 V DC NF C 20-030
- Ip Degree Of Protection
- IP20 IEC 60529 casing) || IP20 terminals)
- Marking
- CE
- Overvoltage Category
- III IEC 60664-1
- Pollution Degree
- 2 IEC 60664-1
- Product Certifications
- CCC || CSA || GOST || C-tick || UL
- Radio Agreement
- RSS || SRRC || ANATEL || ARIB T66 || FCC || ICASA
- Relative Humidity
- 90-90 % -20-55 °C, without condensation ETSI EN 300 440-1
- Shock Resistance
- 10 gn 16 ms) 6000 shocks IEC 60068-2-27
- Standards
- EN/IEC 60947-5-1
- [Ui] Rated Insulation Voltage
- 60 V IEC 60664-1
- Vibration Resistance
- +/- 7.5 mm 5-14 Hz)IEC 60068-2-6 || 2 gn 8-150 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1103010EN
- Environmental Disclosure
- ENVPEP101106EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Antenna Type
- omnidirectional
- Device Short Name
- ZBRRH
- Function Of Module
- bi-stable
- Level Or Class
- 5M00G7W
- Product Or Component Type
- wireless receiver
- Product Specific Application
- interface to Harmony hub
- Range Of Product
- Harmony
- Reset Time
- 2 ms time delay
- Transmission Frequency
- 2405 MHz
