Description

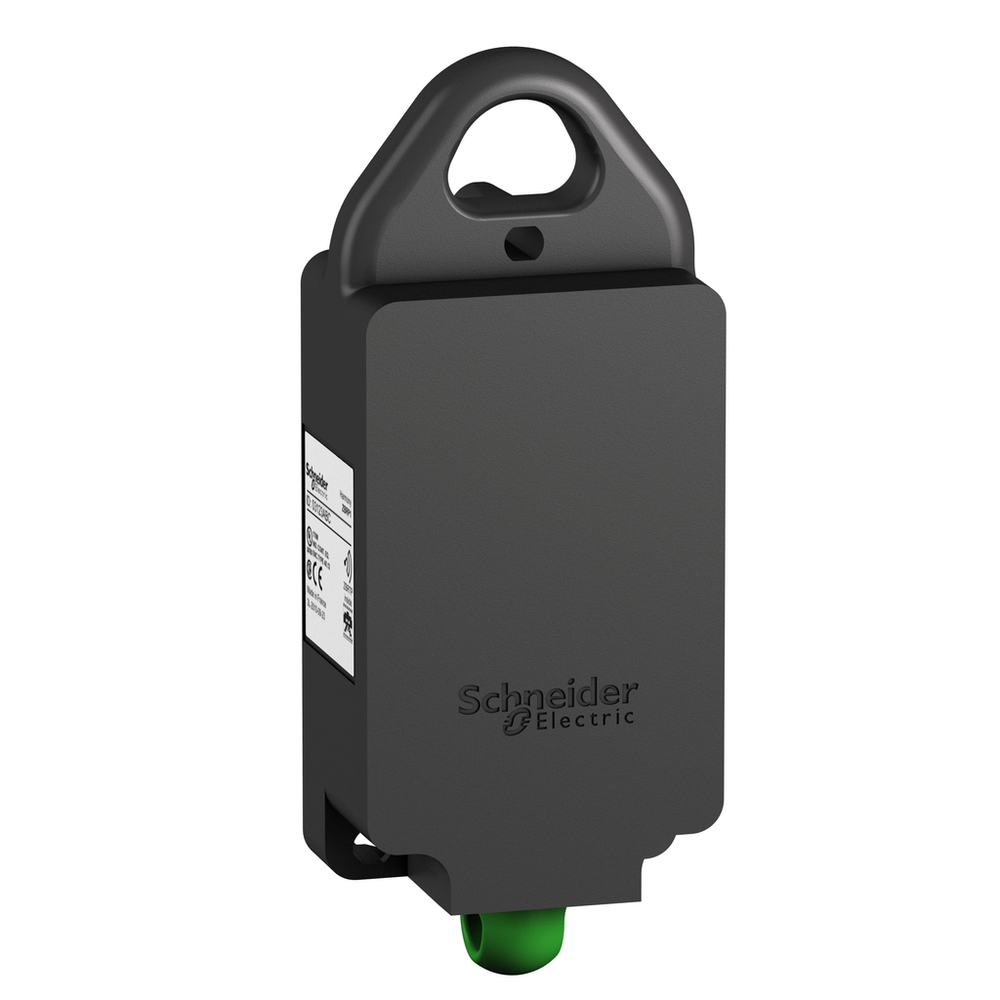

Schneider Electric ZBRP1 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Antenna Gain
- 0 dBi
- Cad Overall Depth
- 38 mm
- Cad Overall Height
- 144 mm
- Cad Overall Width
- 56 mm
- Communication Port Protocol
- Zigbee green power 2.4 GHz IEEE 802.15.4
- Emission Power
- 3 mW
- Fixing Mode
- by screw 1.8-2.2 N.m
- Maximum Sensing Distance
- 100 m in free field
- Mechanical Robustness
- free fall resistance 1000 mm EN/IEC 60068-2-32
- Modulation Technique
- O-QPSK
- Mounting Mode
- between 2 ropes || panel-mounted
- Net Weight
- 0.15 kg
- Number Of Channels
- 16
- Operating Position
- any position
- Radio Agreement
- ICASA
- Standards
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Directives
- 1999/5/EC - R&TTE directive || 2004/108/EC - electromagnetic compatibility
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) || susceptibility to electromagnetic fields - test level: 10 V/m (80...2000 MHz) || susceptibility to electromagnetic fields - test level: 3 V/m (80...2700 MHz, distance = 20 m)
- Ik Degree Of Protection
- IK05 IEC 50102
- Ip Degree Of Protection
- IP66 IEC 60529 outdoor)
- Mechanical Durability
- 1000000 cycles
- Nema Degree Of Protection
- NEMA 4X outdoor
- Product Certifications
- CCC || BT 2006/95/EC || CSA || UL || C-tick || GOST
- Relative Humidity
- 95-95 % -25-70 °C without condensation
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1103010EN
- Environmental Disclosure
- ENVPEP101106EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Antenna Type
- omnidirectional
- Bezel Material
- plastic
- Device Short Name
- XB5R
- Level Or Class
- 5M00G7W
- Product Or Component Type
- wireless and batteryless transmitter
- Range Of Product
- Harmony XB5
- Transmission Frequency
- 2405 MHz
