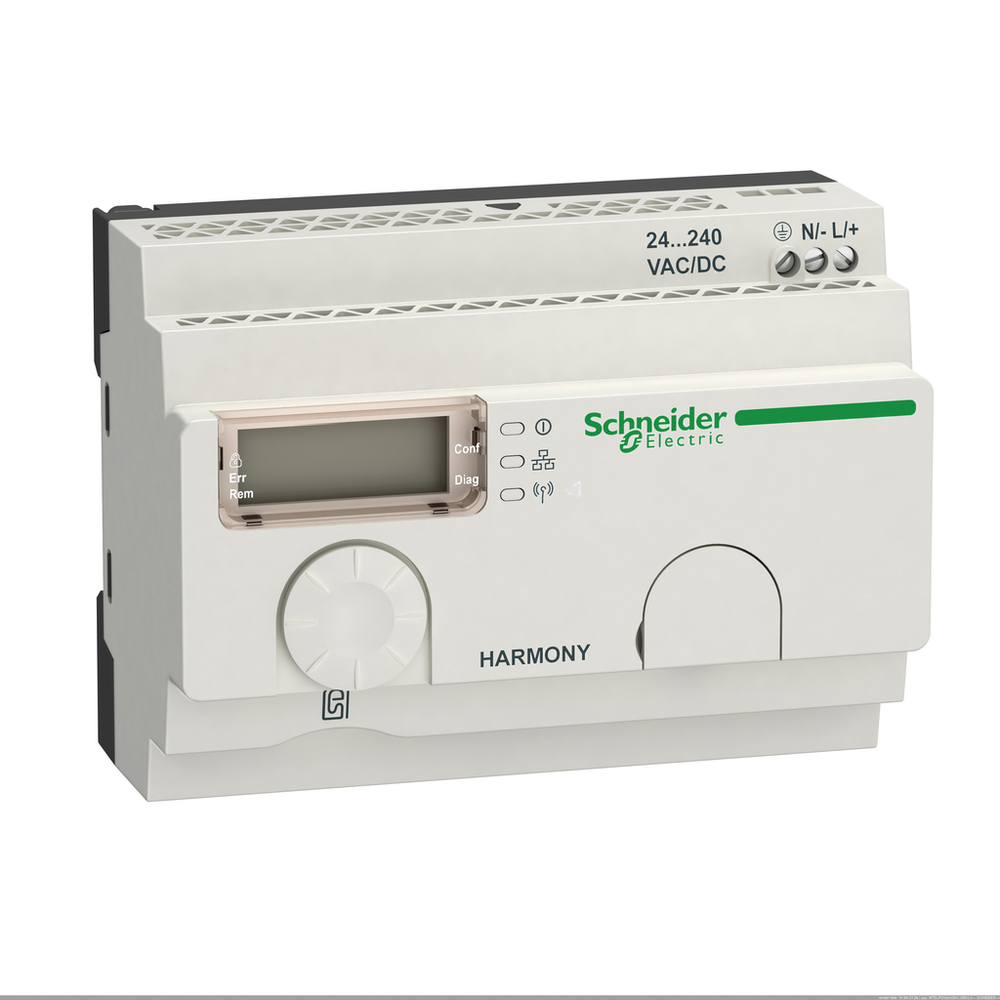

Schneider Electric ZBRN32
Description
Schneider Electric ZBRN32 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Breaking Capacity
- 750 VA
- 15 W
- Control Circuit Frequency
- 50...60 Hz +/- 10 %
- Depth
- 60 mm
- Height
- 90 mm
- Immunity To Microbreaks
- 10 ms
- Maximum Power Consumption In W
- 4 W AC/DC
- Net Weight
- 0.27 kg
- Rated Short-Duration Power Frequency Withstand Voltage
- 1.5 kV 50 Hz IEC 60947-5-1
- Response Time
- < 30 ms after transmitter clicks
- Short-Circuit Protection
- 16 A GB2 circuit breaker
- Surge Withstand
- 1 kV differential mode IEC 61000-4-5 || 2 kV common mode IEC 61000-4-5
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz - 10...10 %
- Width
- 122 mm
Environment
- Ambient Air Temperature For Storage
- -40-70 °C
- Directives
- 2006/95/EC - low voltage directive || 1999/5/EC - R&TTE directive || 2004/108/EC - electromagnetic compatibility
- Ip Degree Of Protection
- IP20 IEC 60529 casing) || IP20 terminals)
- Marking
- CE
- Product Certifications
- GOST || C-tick || UL || CE || CSA || CCC
- Standards
- IEC 62311 || IEC 60950-1 || ETSI EN 300 328 || CSA C22.2 No 14 || ETSI EN 300 440-2 || UL 508 || IEC 61131-2
- Vibration Resistance
- +/- 3.5 mm 5-14 Hz) IEC 60068-2-6 || 1 gn 5-150 Hz) on panel mounting IEC 60068-2-6 || 2 gn 8-150 Hz) on DIN rail IEC 60068-2-6
Offer Sustainability
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- ZBRN2
- Function Of Module
- monostable
- Product Or Component Type
- wireless access point
- Product Specific Application
- interface to PLC
- Range Of Product
- Harmony
