Description

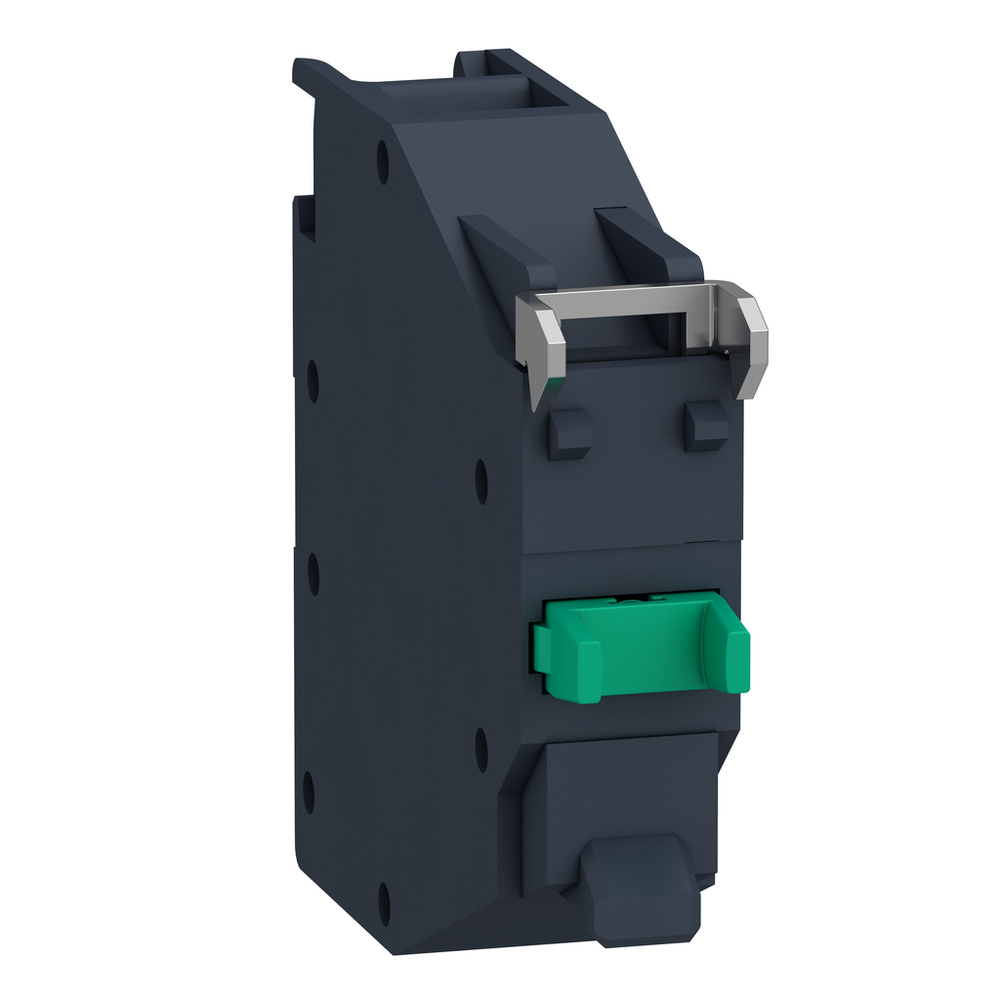

Contact block, Harmony XB4 - ATEX D, single contact, gas protected contact, screw clamp terminals, 1NO
Schneider Electric ZBE101GEX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cad Overall Depth
- 42.4 mm
- Cad Overall Height
- 10 mm
- Cad Overall Width
- 38 mm
- Contacts Type And Composition
- 1 NO
- [Ie] Rated Operational Current
- 1.9 A 380 V, AC, A600 IEC 60947-5-1 || 3 A 240 V, AC, A600 IEC 60947-5-1 || 6 A 120 V, AC, A600 IEC 60947-5-1 || 0.27 A 250 V, DC, Q300 IEC 60947-5-1 || 0.55 A 125 V, DC, Q300 IEC 60947-5-1 || 2.87 A 24 V, DC, Q300 IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Marking
- Ex db eb IIC Gb
- Mechanical Durability
- 1000000 cycles
- Mounting Of Block
- front mounting
- Net Weight
- 0.018 kg
- Operating Force
- 3.962 N
- Operating Travel
- 1.657 mm engagement point) || 4.622 mm changing state point) || 4.452 mm total travel)
- Positive Opening
- without
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- [Ui] Rated Insulation Voltage
- 415 V
Environment
- Ambient Air Temperature For Operation
- -50-75 °C
- Ambient Air Temperature For Storage
- -50-70 °C
- Environmental Characteristic
- hazardous location class I division 2
- Product Certifications
- cULus
- Protective Treatment
- TH
- Standards
- EN/IEC 60079-7 || EN/IEC 60079-0 || EN/IEC 60079-1 || EN/IEC 60079-31 || UL 60079-31 || UL 60079-0 || CSA C22.2 No 213 || UL 60079-1 || ANSI/ISA 12.12.01
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1808008EN
- Environmental Disclosure
- ENVPEP1808008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Connections - Terminals
- screw clamp terminals, 2 x 1.5 mm² without cable end || screw clamp terminals, 1 x 2.5 mm² with cable end
- Contact Block Type
- single
- Contact Operation
- standard
- Contacts Usage
- gas protected contact
- Device Short Name
- ZBE
- Product Or Component Type
- contact block
- Range Of Product
- Harmony XB4
- Sale Per Indivisible Quantity
- 1
