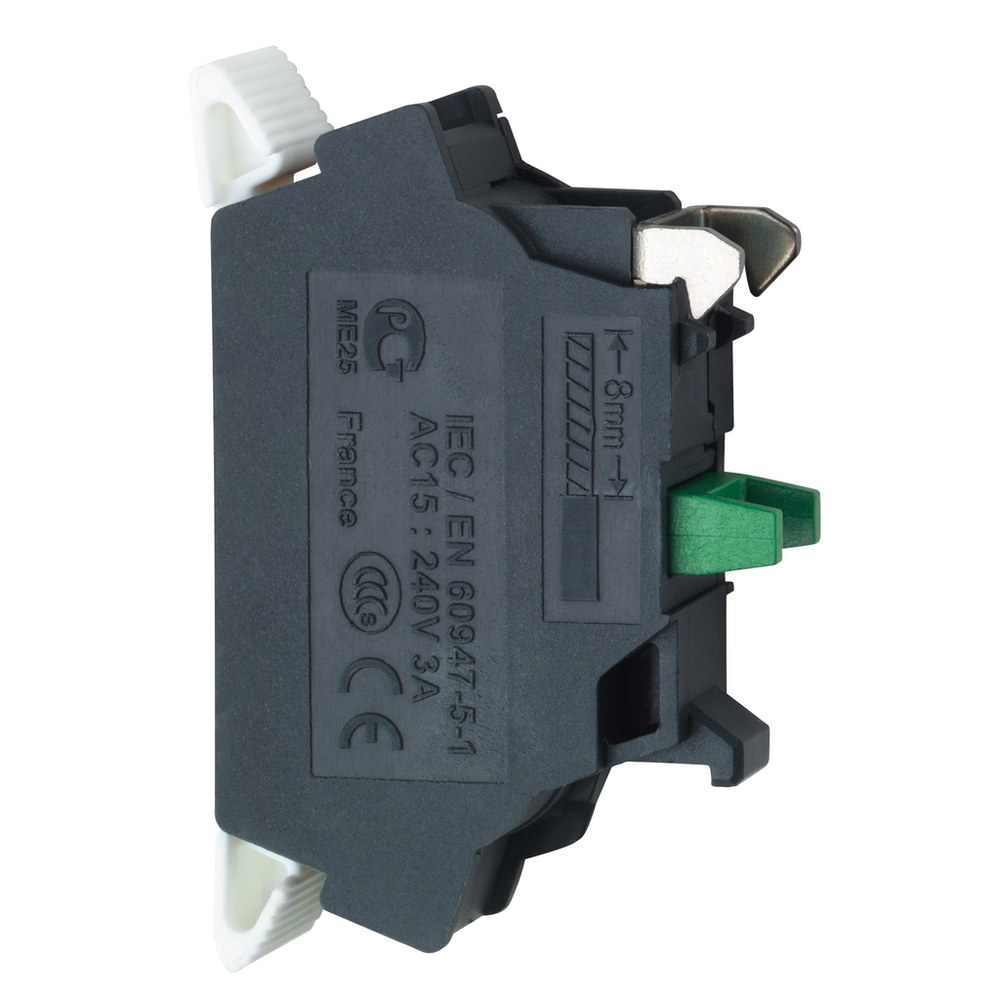

Schneider Electric ZBE1015
Free Shipping
1 Year Warranty
A+ Rated On The BBB
Next Day Delivery
Based In The USA
Description
This Harmony ZB, XB5 single contact block contact block uses spring clamp connection. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme for NO and NC contact block types. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.Single contact block, Harmony XB4, silver alloy, spring clamp terminal, 1NO
Schneider Electric ZBE1015 is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Type And Composition
- 1 NO
- Device Presentation
- basic element
- Electrical Composition Code
- C11 3 ) || C14 2 ) || M10 2 )
- Electrical Durability
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Mechanical Durability
- 10000000 cycles
- Mounting Of Block
- front mounting
- Net Weight
- 0.011 kg
- Operating Force
- 2.3 N NO changing electrical state
- Operating Travel
- 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Positive Opening
- without
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Product Certifications
- GOST || BV || CCC || DNV || GL || LROS (Lloyds register of shipping) || UL || CSA
- Protective Treatment
- TH
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards
- JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1808008EN
- Environmental Disclosure
- ENVPEP1808008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Connections - Terminals
- spring clamp terminals
- Contact Block Type
- single
- Contact Operation
- slow-break
- Contacts Usage
- standard contacts
- Device Short Name
- ZBE
- Ip Degree Of Protection
- IP20 IEC 60529
- Product Or Component Type
- contact block
- Range Of Product
- Harmony XB5 || Harmony XB4
- Sale Per Indivisible Quantity
- 4
