Schneider Electric ZB5FH53C0
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

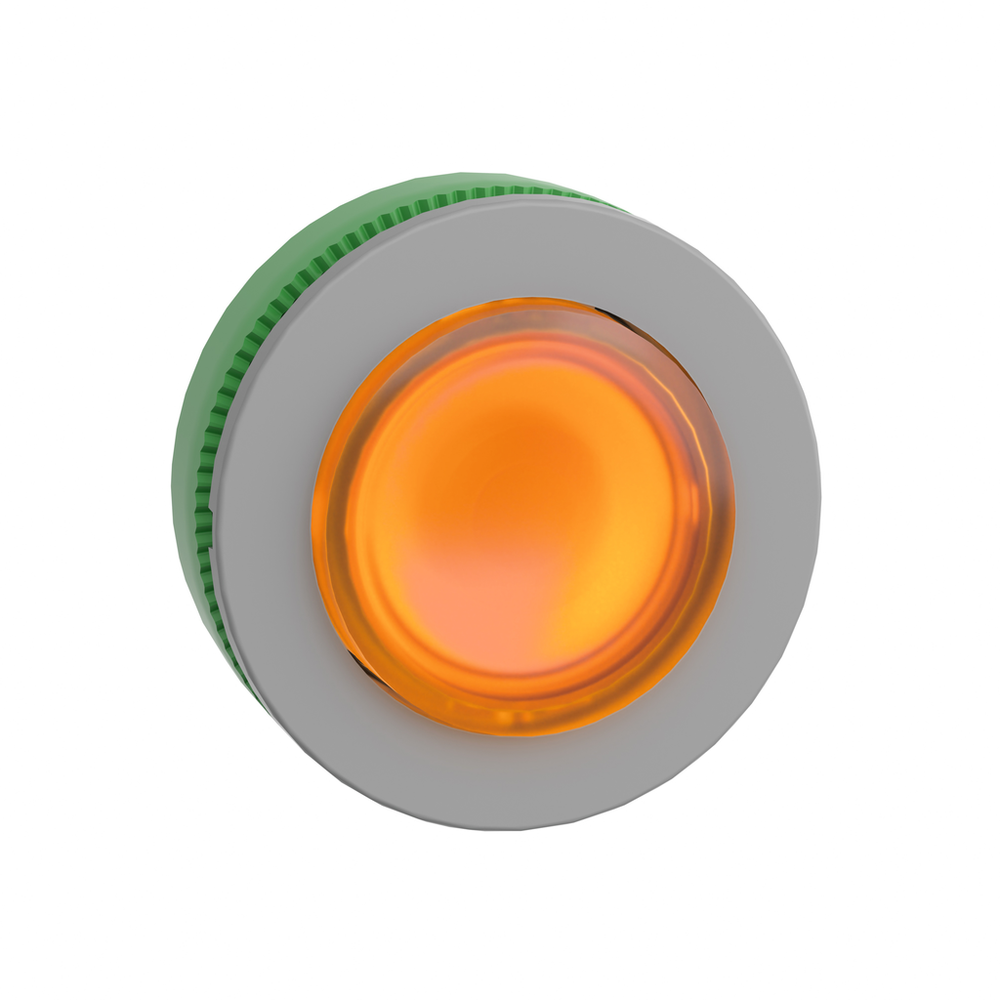

This 30.5mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.Head for illuminated push button, Harmony XB5, grey bezel, orange projecting, 30mm, universal LED, push-push, unmarked
Schneider Electric ZB5FH53C0 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cad Overall Depth
- 32 mm
- Cad Overall Height
- 37 mm
- Cad Overall Width
- 37 mm
- Device Presentation
- basic element
- Electrical Composition Code
- C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || C9 3 single front mounting
- Mechanical Durability
- 500000 cycles
- Net Weight
- 0.031 kg
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ik Degree Of Protection
- IK03 IEC 50102
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529
- Overvoltage Category
- class II IEC 60536
- Product Certifications
- UL Listed || CSA
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Standards
- UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Vibration Resistance
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
Specifications
- Bezel Material
- plastic colour plated grey
- Device Short Name
- ZB5F
- Head Type
- built-in-flush
- Mounting Diameter
- 30.5 mm
- Operator Profile
- yellow projecting, unmarked
- Product Compatibility
- universal LED
- Product Or Component Type
- head for illuminated push-button
- Range Of Product
- Harmony XB5
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- push-push
