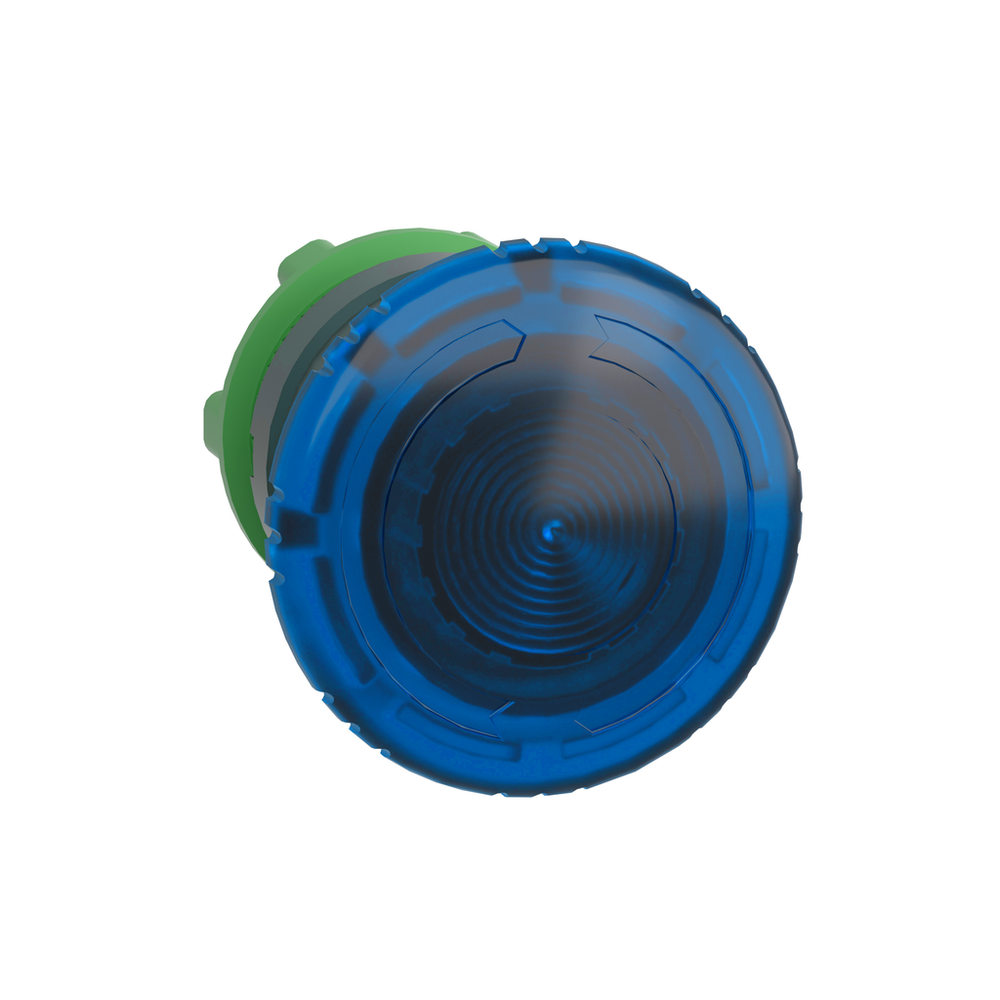

Schneider Electric ZB5AW763
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This blue illuminated 40mm mushroom shape button head for universal LED is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.Head for illuminated push button, Harmony XB5, plastic, blue mushroom 40mm, 22mm, latching turn to release, clear boot
Schneider Electric ZB5AW763 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cad Overall Depth
- 50 mm
- Cad Overall Height
- 40 mm
- Cad Overall Width
- 40 mm
- Cap/Operator Or Lens Colour
- blue
- Device Presentation
- basic sub-assemblies
- Electrical Composition Code
- M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || MR1 2 single rear mounting integral LED || M3 4 single front mounting integral LED || M4 4 single and double front mounting integral LED
- Group Of Product
- mush. turn to release illum
- Main Group
- mushroom head
- Marking
- unmarked
- Mechanical Durability
- 300000 cycles
- Net Weight
- 0.022 kg
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Station Name
- XALD 1 cut-out || XALK 1 cut-out
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ik Degree Of Protection
- IK05 EN 50102
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69 || IP69K
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Overvoltage Category
- class II IEC 60536
- Product Certifications
- UL Listed || CSA || DNV || GL || LROS (Lloyds register of shipping) || BV
- Protective Treatment
- TC
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards
- JIS C8201-5-1 || EN/IEC 60947-5-4 || UL 508 || GB 14048.5 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710010EN
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Bezel Material
- dark grey plastic
- Device Short Name
- ZB5
- Head Type
- standard
- Mounting Diameter
- 22 mm
- Operator Profile
- blue mushroom Ø 40 mm, unmarked
- Product Compatibility
- universal LED
- Product Or Component Type
- head for illuminated push-button
- Range Of Product
- Harmony XB5
- Reset
- turn to release
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- latching
