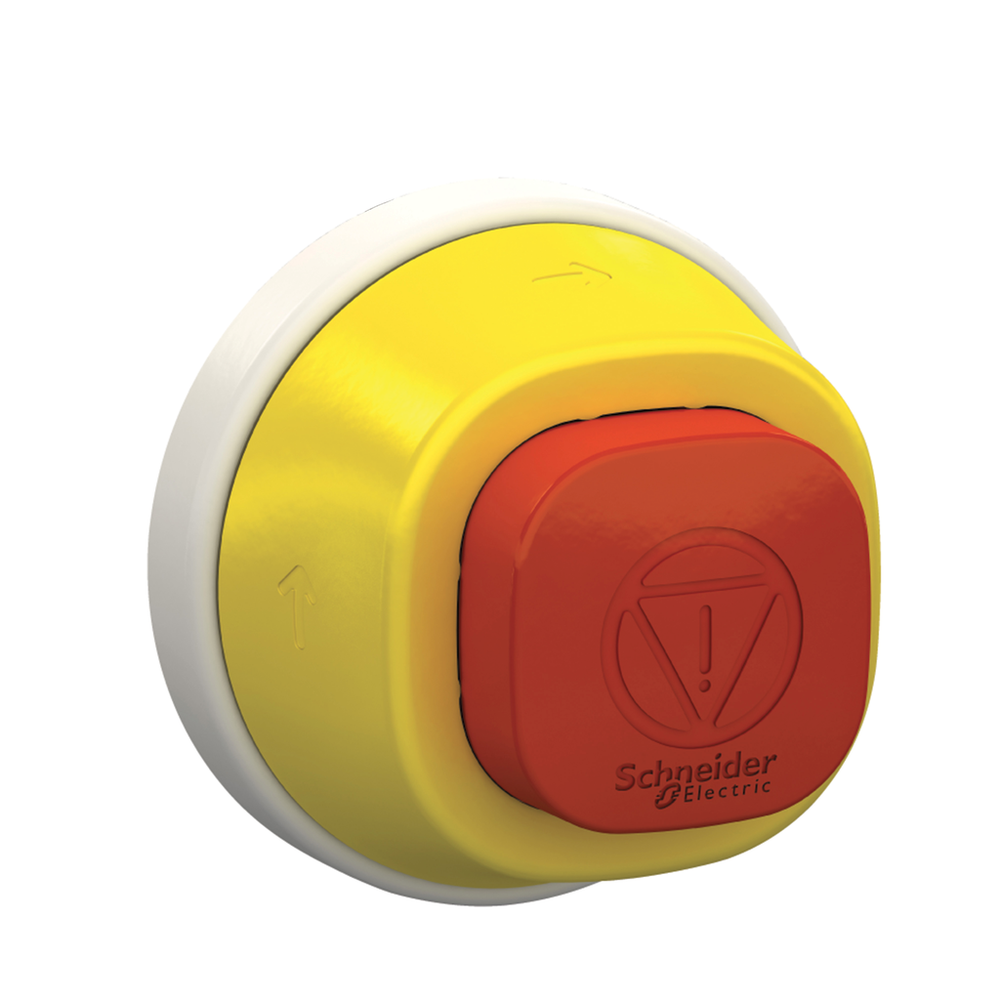

Schneider Electric ZB5AS84W2M
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This emergency stop / shutdown button head is easily combined with contact blocks and installed into standard 22mm diameter cut-outs. It comes with antimicrobial characteristics. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 32mm red square push button. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67, IP69 / IP69K, making it ideal for operation in harsh environments.Antimicrobial Illuminated emergency stop head, Harmony XB5, plastic, red, 22mm, trigger latching turn to release, red LED, 230...240V AC
Schneider Electric ZB5AS84W2M is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cad Overall Depth
- 40 mm
- Cad Overall Height
- 60 mm
- Cad Overall Width
- 60 mm
- Compatibility Code
- ZB5
- Electrical Composition Code
- C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || SR1 3 single rear mounting || C10 4 single and double front mounting
- Electrical Insulation Class
- class II IEC 61140
- Light Source Colour
- red
- Mechanical Durability
- 300000 cycles
- Net Weight
- 0.063 kg
- Product Compatibility
- ZB5
- Resistance To Electrostatic Discharge
- 4 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Supply Voltage Limits
- 195-264 V AC
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- [Us] Rated Supply Voltage
- 230 V
- 230...240 V AC 50...60 Hz
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ik Degree Of Protection
- IK05 IEC 50102
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Product Certifications
- UL Listed || CSA || EAC
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Standards
- IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || ISO 21702 || ISO 22196:2011
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710010EN
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Bezel Material
- plastic
- Device Presentation
- basic element
- Device Short Name
- ZB5
- Head Type
- standard
- Mounting Diameter
- 22 mm
- Operator Profile
- red square 32 mm
- Product Or Component Type
- head for illuminated emergency stop push-button
- Range Of Product
- Harmony XB5
- Reset
- turn to release
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- trigger action and mechanical latching
