Schneider Electric ZB5AA79
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

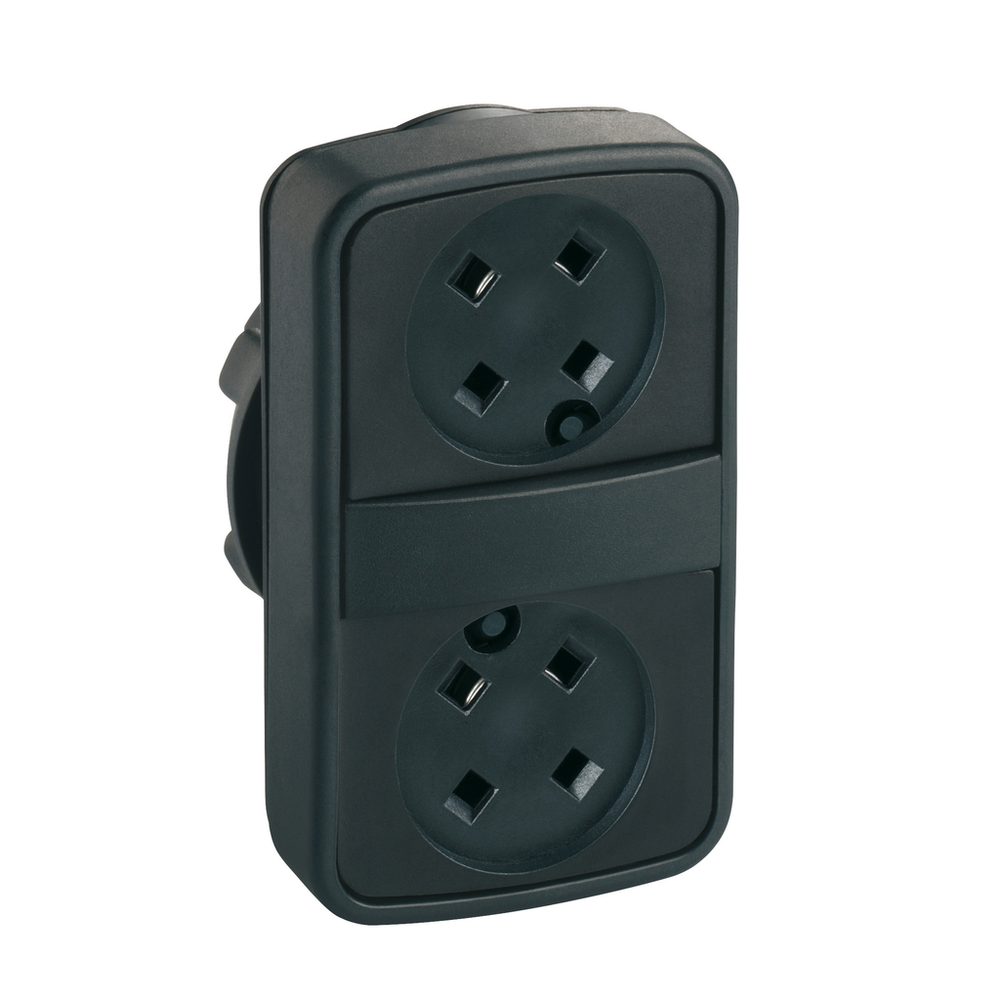

This double head is supplied without cap. This allows users to customize control functions with desired caps for their machines operations. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.Head for double headed push button, Harmony XB5, 2 rectangular flush, without cap, 22mm, spring return, unmarked
Schneider Electric ZB5AA79 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cad Overall Depth
- 30 mm
- Cad Overall Height
- 50 mm
- Cad Overall Width
- 30 mm
- Colour Of Marking
- black marking when white caps || white marking when green, red or black caps
- Device Presentation
- basic element
- Electrical Composition Code
- C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting || SF2 2 single front mounting || SR2 2 single rear mounting
- Mechanical Durability
- 1000000 cycles
- Net Weight
- 0.023 kg
- Operator Profile
- without cap
- Station Name
- XALD 1 cut-out
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 60536
- Ik Degree Of Protection
- IK03 IEC 50102
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69K IEC 60529
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Product Certifications
- LROS (Lloyds register of shipping) || DNV || GL || UL Listed || BV || CSA
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards
- IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-5-1 || IEC 60947-1 || UL 508 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1710010EN
- Environmental Disclosure
- ENVPEP1710010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Bezel Material
- dark grey plastic
- Device Short Name
- ZB5
- Head Type
- standard
- Mounting Diameter
- 22 mm
- Operator Profile
- 2 flush push-buttons
- Operators Description
- black pushes without cap
- Product Or Component Type
- head for double-headed push-button
- Range Of Product
- Harmony XB5
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- rectangular
- Type Of Operator
- spring return
