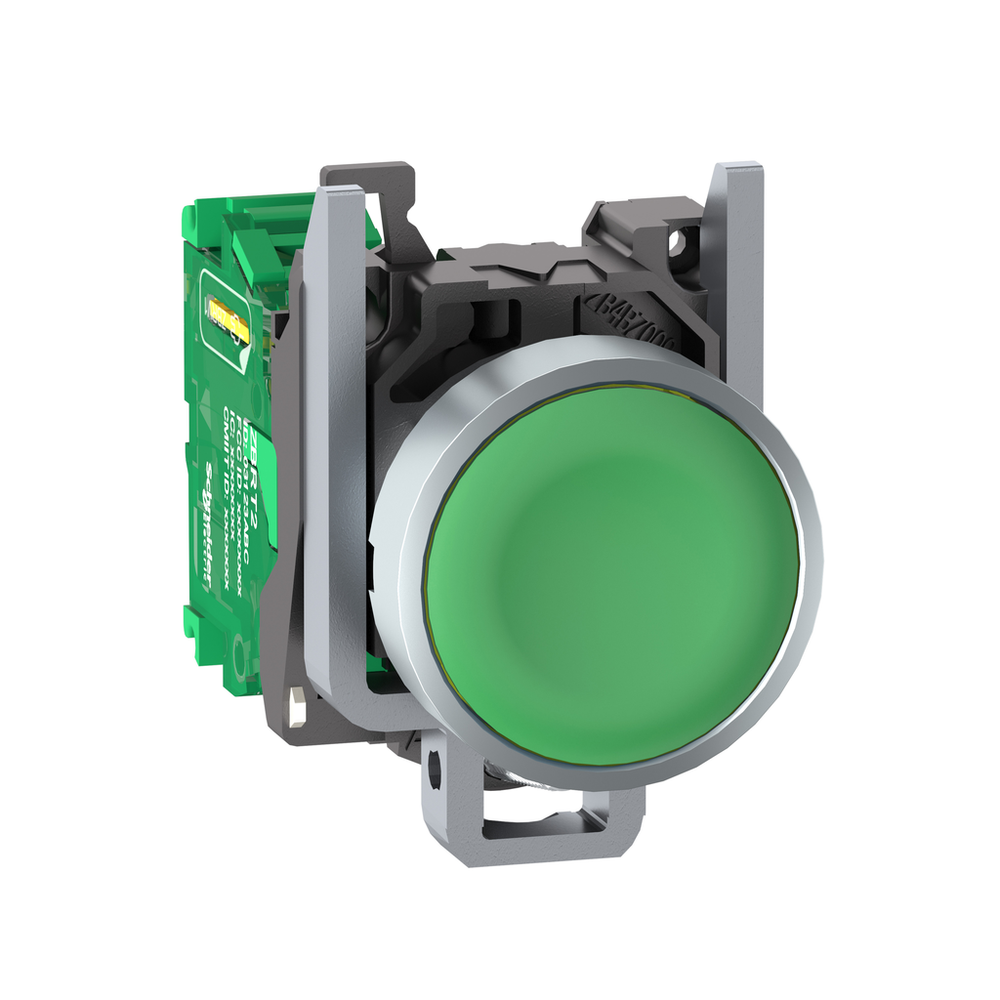

Schneider Electric ZB4RTA3
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This wireless batteryless transmitter push-button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its clear color It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP30 and IP65, making it ideal for operation in harsh environments It is easily combined with Harmony range of contact blocks to perform a large variety of control functions The cap is greenWireless and batteryless transmitter, Harmony XB5R, push button, metal, green, 22mm, spring return
Schneider Electric ZB4RTA3 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Acquisition Time
- 2 ms
- Antenna Gain
- 0 dBi
- Bandwidth
- 5-5 MHz
- Cad Overall Depth
- 43 mm
- Cad Overall Height
- 41.5 mm
- Cad Overall Width
- 30 mm
- Communication Port Protocol
- Zigbee green power 2.4 GHz IEEE 802.15.4
- Electrical Composition Code
- PW1
- Embedding Depth
- 42 mm
- Emission Power
- 3 mW
- Fixing Mode
- fixing screw beneath head 0.8-1.2 N.m
- Maximum Sensing Distance
- 100 m in free field || 25 m transmitter in a plastic box type XAL D and receiver in a metal enclosure || 300 m transmitter in box type XAL D, receiver in metal enclosure and use relay-antenna
- Max Power Consumption In W
- 1 mW
- Mechanical Robustness
- free fall resistance 1000 mm EN/IEC 60068-2-32
- Modulation Technique
- O-QPSK
- Net Weight
- 0.045 kg
- Number Of Channels
- 16
- Operating Force
- 10 N C/O changing electrical state
- Operating Travel
- 4.3 mm total travel)
- Operator Profile
- green flush
- Radio Agreement
- ANATEL || ARIB T66 || FCC || ICASA || RSS
- Response Time
- < 2 ms
- Shape Of Signaling Unit Head
- round
- Standards
- CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || UL 508
- Type Of Operator
- spring return push-button with transmitter
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Directives
- 1999/5/EC - R&TTE directive || 2004/108/EC - electromagnetic compatibility
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 20 V/m (80...3000 MHz) conforming to IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 6 V/m (3000...6000 MHz, distance = 20 m) conforming to IEC 61000-4-3
- Ik Degree Of Protection
- IK03 IEC 50102
- Ip Degree Of Protection
- IP66 IEC 60529 front face) || IP67 IEC 60529 front face) || IP69 IEC 60529 front face) || IP69K IEC 60529 front face)
- Mechanical Durability
- 1000000 cycles
- Product Certifications
- BT 2006/95/EC || C-tick || UL || GOST || CSA
- Protective Treatment
- TH
- Relative Humidity
- 95-95 % -40-70 °C without condensation
- Shock Resistance
- 25 gn 6 ms) 6000 shocks IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance
- 5 gn 11-500 Hz)IEC 60068-2-6 || +/- 10 mm 2-11 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1103010EN
- Environmental Disclosure
- ENVPEP101106EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Antenna Type
- omnidirectional
- Bezel Material
- chromium plated metal
- Device Short Name
- XB5R
- Fixing Collar Material
- zamak
- Level Or Class
- 5M00G7W
- Mounting Diameter
- 22 mm
- Product Or Component Type
- wireless and batteryless transmitter
- Range Of Product
- Harmony XB5
- Transmission Frequency
- 2405 MHz
