Schneider Electric ZB4BZ1055
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

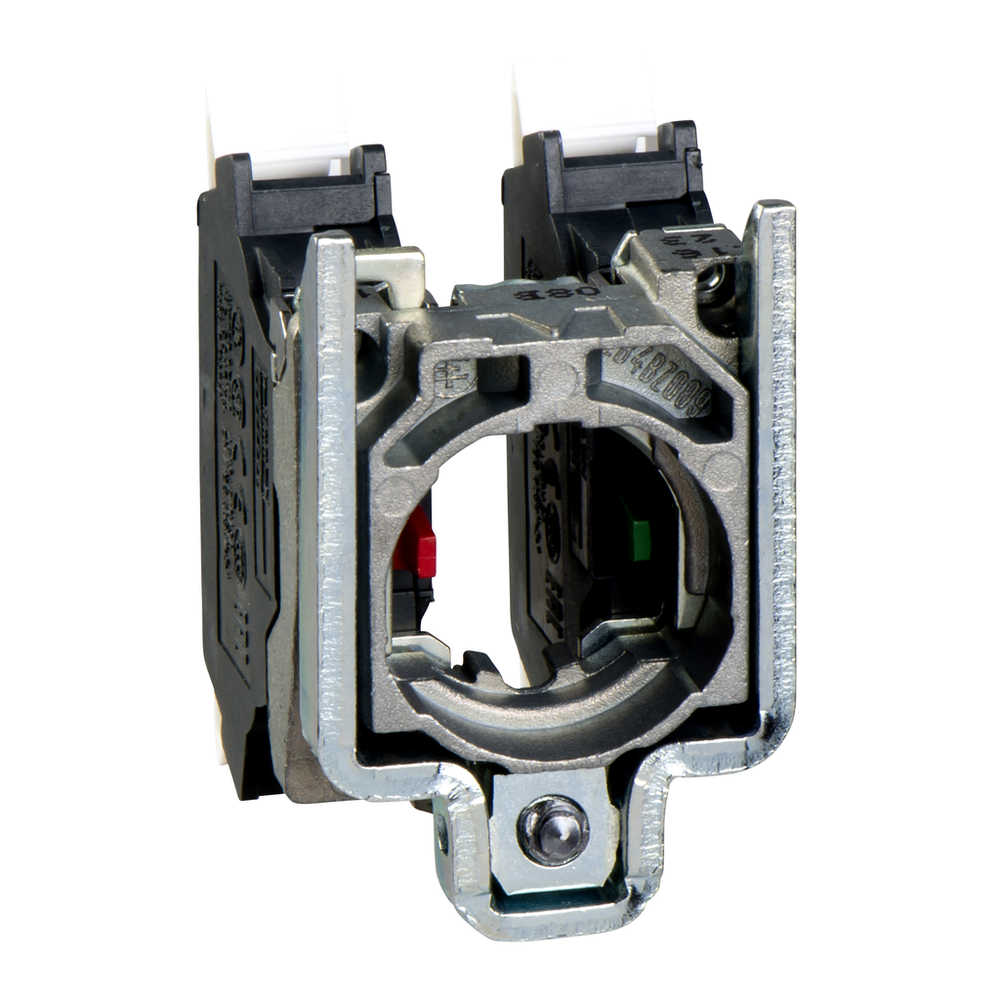

This Harmony XB4, single contact block is pre-assembled on a body/collar fixing unit. It has 1 x NO + 1 x NC contacts. It is compatible with Harmony XB4 This body fixing collar is pre-mounted with a contact block. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.Single contact block with body fixing collar, Harmony XB4, metal, spring clamp terminal, 1NO+1NC
Schneider Electric ZB4BZ1055 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cad Overall Width
- 30 mm
- Contacts Material
- silver alloy (Ag/Ni)
- Device Presentation
- basic sub-assemblies
- Electrical Durability
- 10000000 cycles, 10 A
- [Ie] Rated Operational Current
- 10 A, Q600 || 10 A, A600
- Mechanical Durability
- 10000000 cycles
- Net Weight
- 0.064 kg
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP20 IEC 60529
- Protective Treatment
- TH
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1808008EN
- Environmental Disclosure
- ENVPEP1808008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Contact Block Type
- single
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO + 1 NC
- Device Composition
- fixing collar || contact block
- Device Short Name
- ZB4
- Fixing Collar Material
- zamak
- Head Type
- standard
- Product Or Component Type
- complete body/contact assembly
- Range Of Product
- Harmony XB4
- Sale Per Indivisible Quantity
- 1
