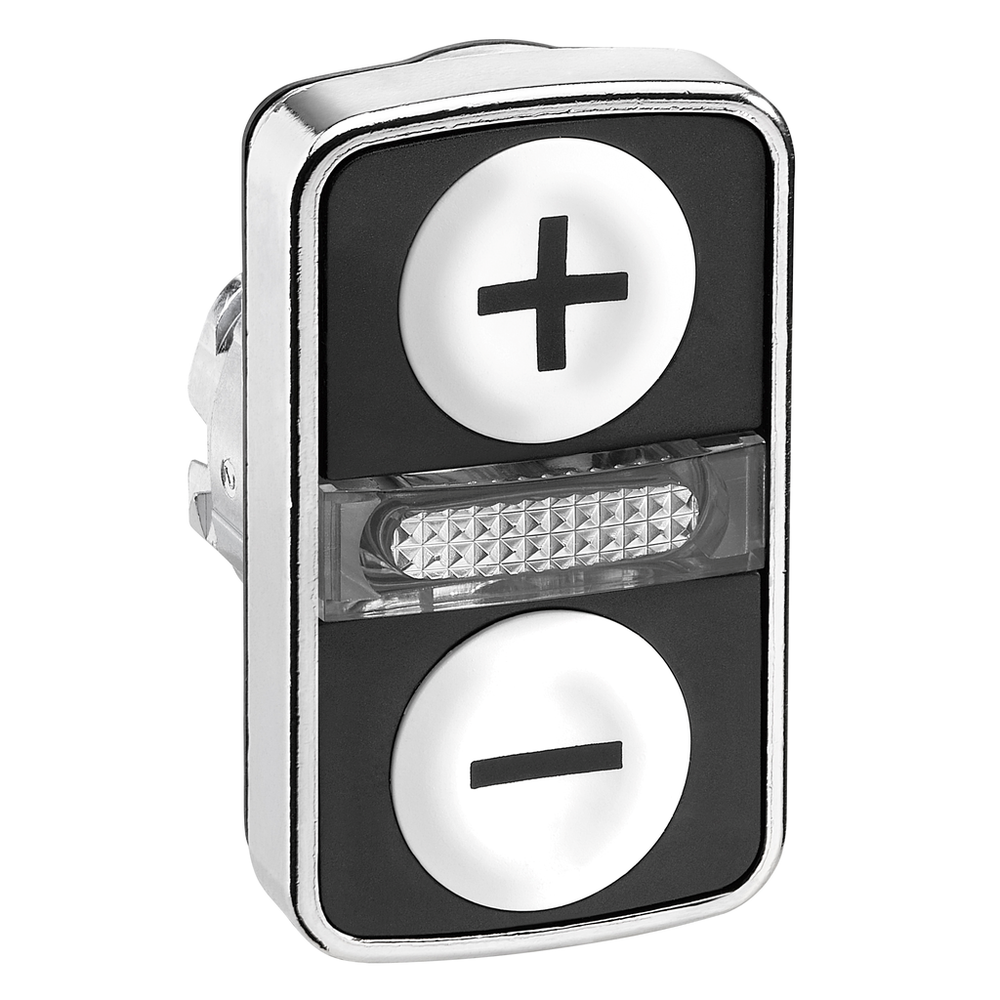

Schneider Electric ZB4BW7A1715
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Harmony XB4, illuminated double head has 2 white buttons and 1 central white pilot light, operates with a spring return / impulse mechanism. It is marked with "+" and "-"symbols. This double head provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its pilot light and illuminated head with clear colors, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.Head for illuminated double headed push button, Harmony XB4, white flush/white flush pushbutton Ø22 mm with marking
Schneider Electric ZB4BW7A1715 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cad Overall Depth
- 30 mm
- Cad Overall Height
- 50 mm
- Cad Overall Width
- 30 mm
- Colour Of Marking
- white marking when green, red or black caps || black marking when white caps
- Device Presentation
- basic sub-assemblies
- Electrical Composition Code
- M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Mechanical Durability
- 1000000 cycles
- Net Weight
- 0.056 kg
- Operator Profile
- white flush, - black) || white flush, + black)
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class I IEC 61140
- Ik Degree Of Protection
- IK06 IEC 50102
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 || IP69K
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Product Certifications
- GL || DNV || LROS (Lloyds register of shipping) || UL Listed || BV || CSA
- Protective Treatment
- TH
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards
- EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1808008EN
- Environmental Disclosure
- ENVPEP1808008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Bezel Material
- chromium plated metal
- Device Short Name
- ZB4
- Head Type
- standard
- Mounting Diameter
- 22 mm
- Operator Profile
- 2 flush push-buttons - 1 central pilot light
- Operators Description
- white ''+'' - white ''-''
- Product Compatibility
- integral LED
- Product Or Component Type
- head for illuminated double-headed push-button
- Range Of Product
- Harmony XB4
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- rectangular
- Type Of Operator
- spring return
