Description

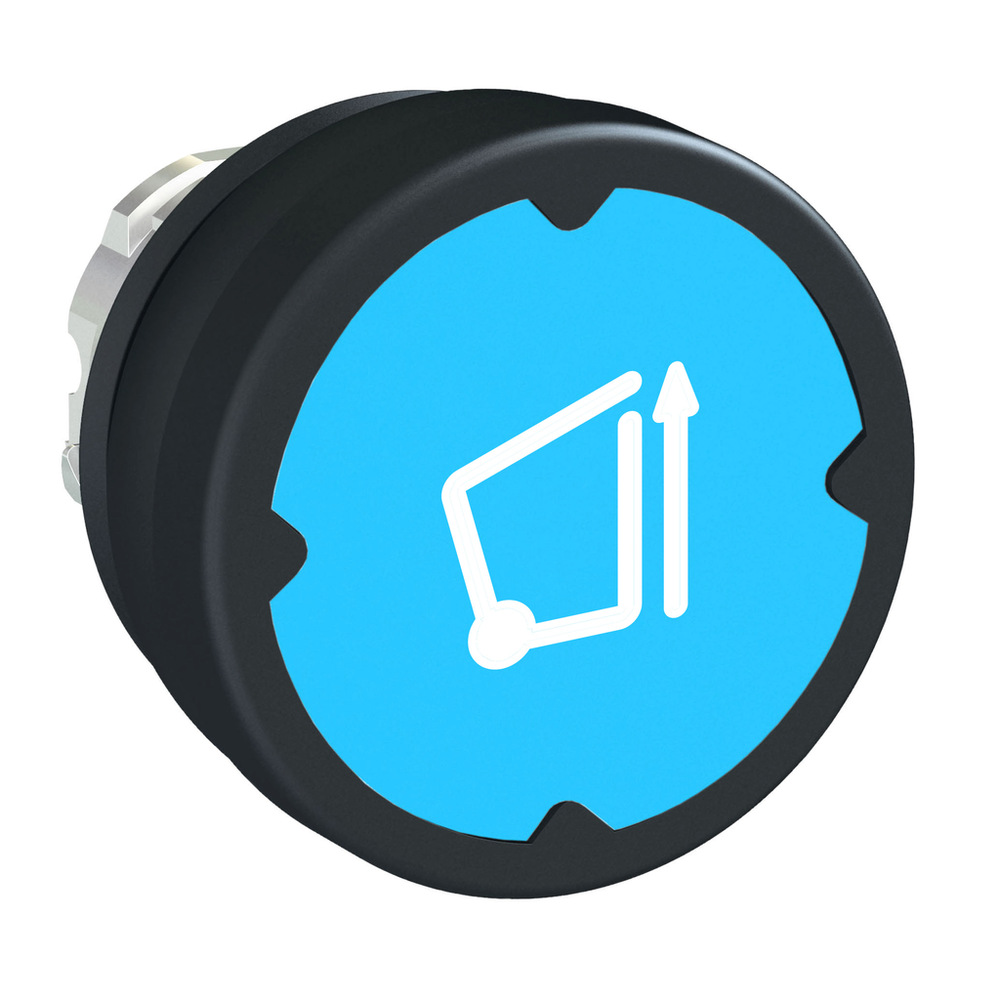

Head for push button, Harmony XB4, harsh environment, metal, light blue, 22mm,Vertical mounting, marked type h005
Schneider Electric ZB4BC98005 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cad Overall Depth
- 37 mm
- Cad Overall Height
- 18.5 mm
- Cad Overall Width
- 37 mm
- Cap/Operator Or Lens Colour
- light blue
- Colour Of Marking
- white
- Electrical Composition Code
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Electrical Shock Protection Class
- class I IEC 61140
- Group Of Product
- flush marked type H005
- Main Group
- harsh environment
- Marking
- type H005
- Mechanical Durability
- 10000000 cycles
- Net Weight
- 0.036 kg
- Operator Additional Information
- vertical mounting
- Operator Profile
- light blue flush, type H005 white)
- Shape Of Signaling Unit Head
- round
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Type Of Operator
- spring return
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -40-85 °C
- Ik Degree Of Protection
- IK06 IEC 62262
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69K || IP67 || IP69
- Nema Degree Of Protection
- NEMA 4 UL 508 || NEMA 13 || NEMA 12
- Product Certifications
- CSA || CE || UL
- Resistance To High Pressure Washer
- 90 Pa 82.5 °C
- Standards
- IEC 60947-5-1 || IEC 60947-1 || UL 508 || CSA C22.2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1808008EN
- Environmental Disclosure
- ENVPEP1808008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Bezel Material
- chromium plated metal
- Device Short Name
- ZB4
- Head Type
- standard
- Mounting Diameter
- 22 mm
- Product Or Component Type
- head for push-button
- Range Of Product
- Harmony XB4
- Sale Per Indivisible Quantity
- 1
