Schneider Electric ZB4BA71124
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

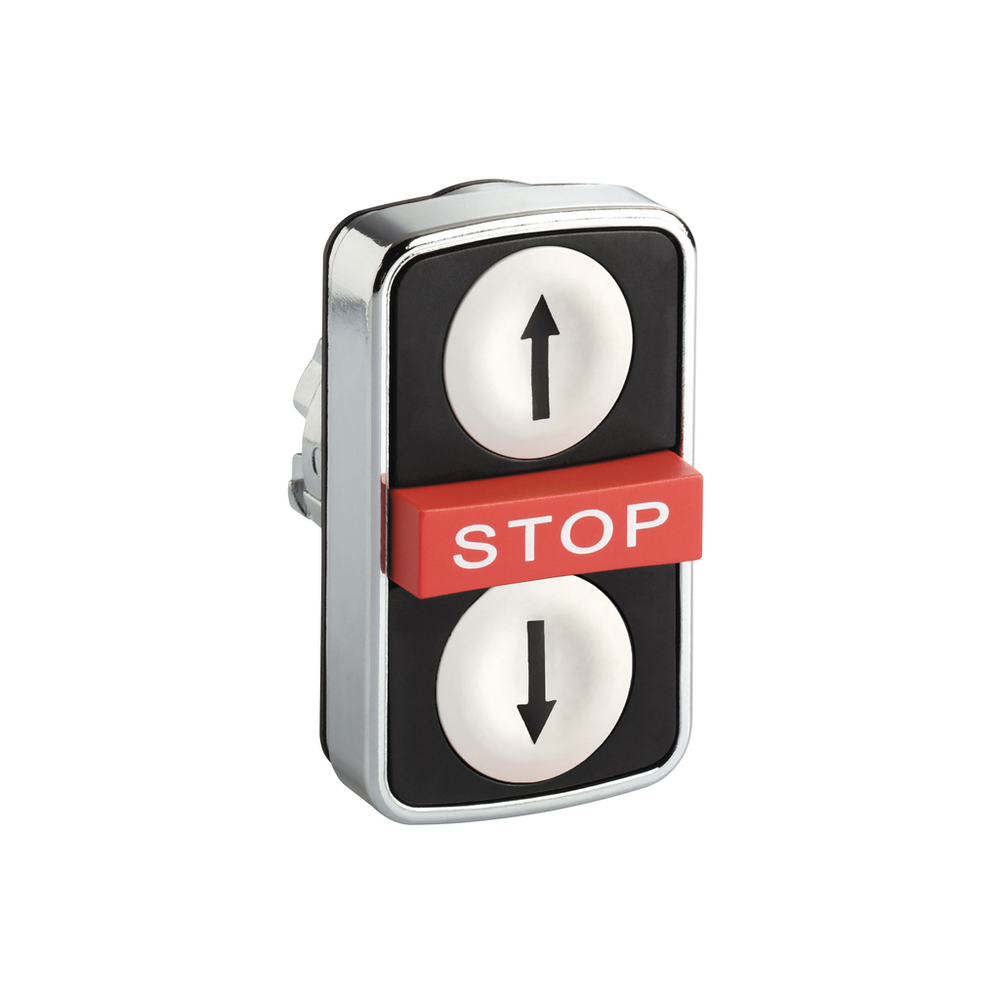

This Harmony XB4, triple head has 1 red and 2 green buttons, operates with a spring return mechanism. It is marked with a "up arrow", "STOP" and "down arrow" symbols. This 3-function head provides a complete 3 button interface to your machines with a single panel cut-out. It is easily assembled with a collar and contact blocks to fulfills a large variety of functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.Triple headed push button head, Harmony XB4, metal, 22mm, 1 white flush UP ARROW + 1 red projecting STOP + 1 black flush DOWN ARROW
Schneider Electric ZB4BA71124 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Colour Of Marking
- white marking when green, red or black caps || black marking when white caps
- Device Presentation
- basic element
- Electrical Composition Code
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting
- Mechanical Durability
- 1000000 cycles
- Net Weight
- 0.056 kg
- Operator Profile
- red projecting, STOP white) || white flush, up arrow black) || black flush, down arrow white)
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class I IEC 60536
- Ik Degree Of Protection
- IK06 IEC 50102
- Ip Degree Of Protection
- IP69 IEC 60529
- Nema Degree Of Protection
- NEMA 13 || NEMA 4X
- Product Certifications
- LROS (Lloyds register of shipping) || DNV || UL Listed || GL || CSA || BV
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Standards
- EN/IEC 60947-5-5 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1808008EN
- Environmental Disclosure
- ENVPEP1808008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
Specifications
- Bezel Material
- chromium plated metal
- Device Short Name
- ZB4
- Head Type
- standard
- Mounting Diameter
- 22 mm
- Operator Profile
- 2 flush - 1 central projecting STOP push-buttons
- Operators Description
- white ''up arrow'' - black ''down arrow'' - red ''STOP''
- Product Or Component Type
- head for triple-headed push-button
- Range Of Product
- Harmony XB4
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- rectangular
- Type Of Operator
- spring return
