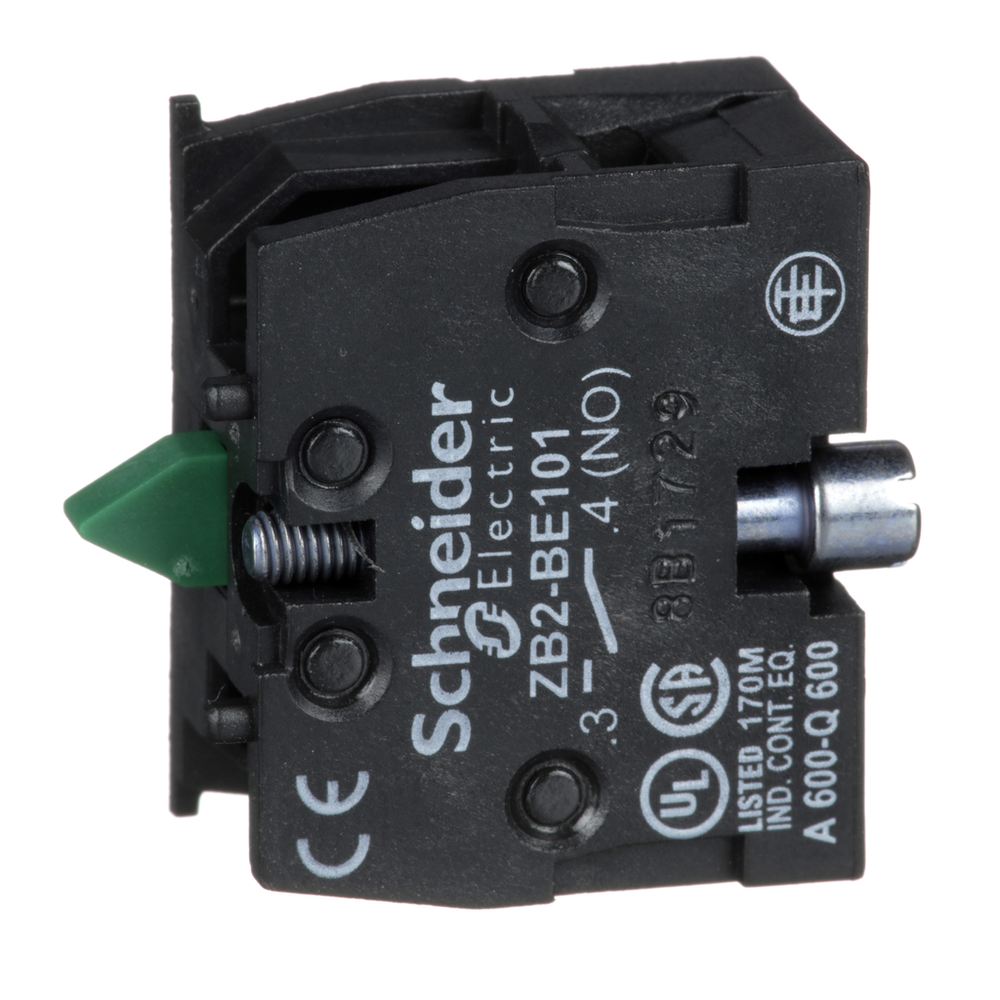

Schneider Electric ZB2BE101
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal
Schneider Electric ZB2BE101 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- screw clamps terminals, 1 x 2.5 mm² with or without cable end || screw clamps terminals, 2 x 1.5 mm² with or without cable end
- Contact Code Designation
- A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Maximum Resistance Across Terminals
- 25 MOhm
- Mechanical Durability
- 1000000 cycles
- Net Weight
- 0.02 kg
- Operating Force
- 13-15 N
- Rated Operational Power In W
- 40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-1 || 48 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-1 || 65 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1
- Short-Circuit Protection
- 10 A fuse protection cartridge gG (gl)
- Terminals Description Iso N°1
- (13-14)NO
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
- Standards
- EN/IEC 60947-5-1 || UL 508 || EN/IEC 60204-32 || CSA C22.2 No 14
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Component Name
- ZB2
- Contact Block Application
- single speed
- Contact Block Type
- single
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO
- Electrical Circuit Type
- control circuit
- Mounting Of Block
- front mounting
- Product Compatibility
- XB4 || XAPS2 || XACA || XB5
- Product Or Component Type
- contact block
- Range Of Product
- Harmony XAC
- Type Of Operator
- spring return
