Schneider Electric ZART12D
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

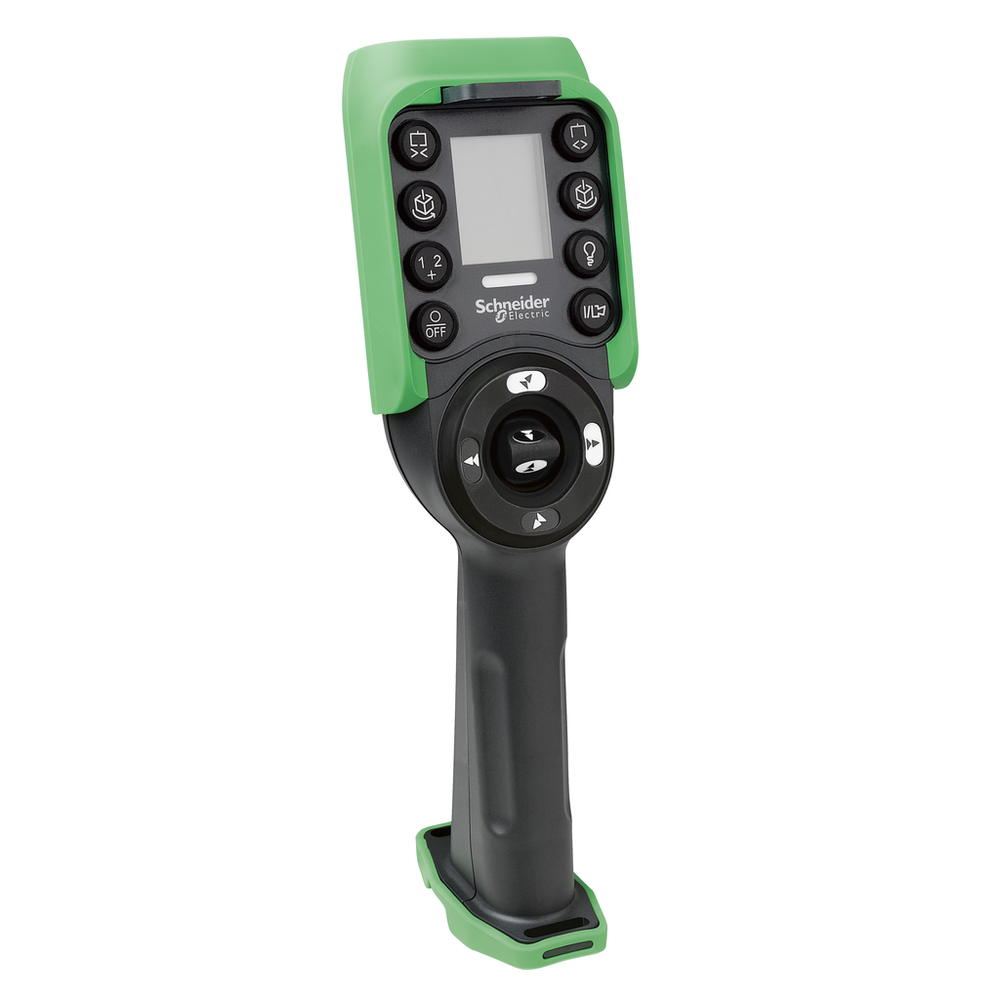

This Harmony eXLhoist / XAR black remote control (transmitter) has 6 configurable auxiliary push buttons with 6 configurable motion push buttons. It has LCD display with rechargeable battery. This remote control (transmitter) with display is designed as a transmitter for wireless remote control system. It has 6 configurable motion push buttons and 6 configurable auxiliary push buttons and can operate at a distance of 50m. It is compatible with base station ZARB18W and ZARB18H. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh (heavy) environments. It provides complete innovative crane operator control solutions to help improve machine and crane operator efficiency. Wireless transmission allows remote control (transmitter) to transmit steady signal, commands and information from the operator to the machine.Remote control, Harmony eXLhoist, standard, display, 6 motion push buttons, 6 auxiliary push buttons
Schneider Electric ZART12D is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Autonomy
- 30 h
- Charging Time
- 900 s
- Communication Network Type
- wireless bluetooth low energy
- Depth
- 90 mm
- Display Type
- LCD display 34 x 42 mm
- Function Available
- accelerometer function || vibrator function
- Height
- 340 mm
- Material
- enclosure PC (polycarbonate) || enclosure PBT (polybutylene terephthalate) || Cover PP (polypropylene) || protective cover EPDM rubber
- Maximum Sensing Distance
- 100 m in free field
- Mechanical Durability
- 5000000 cycles
- Mechanical Robustness
- free fall resistance 4.5 m IEC 60068-2-27
- Net Weight
- 0.65 kg
- Operating Distance
- 50 m
- Response Time
- < 300 ms full duplex
- Service Life
- 5 year(s)
- Transmission Frequency
- 2.4 GHz
- Width
- 100 mm
Environment
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -20-45 °C
- Ip Degree Of Protection
- IP65
- Nema Degree Of Protection
- NEMA 4
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Product Certifications
- C-tick || CSA || CE || JIS || KC || EAC || UL
- Radio Agreement
- FCC || ARIB || RSS || ICASA || ANATEL || SRRC
- Relative Humidity
- 0-95 % -20-60 °C operating
- Shock Resistance
- 100 gn IEC 60068-2-27
- Storage Altitude
- 0-3000 m
- Vibration Resistance
- 0.075 mm 10-55 Hz)IEC 60068-2-6
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1403029EN
- Environmental Disclosure
- ENVPEP1403029EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Control Button Type
- 6 configurable motion push-button || 6 configurable auxiliary push-button
- Device Short Name
- ZART
- Product Or Component Type
- hand-held remote control
- Range Of Product
- Harmony eXLhoist
