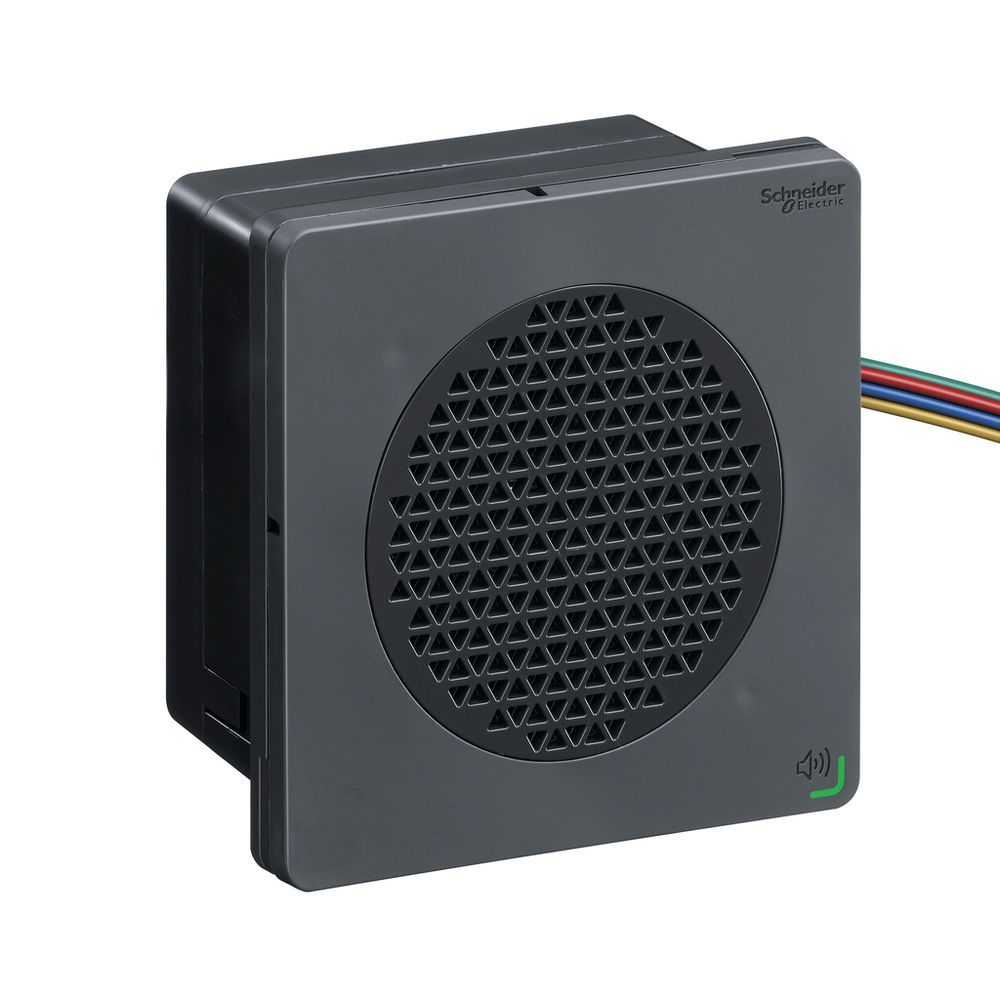

Schneider Electric XVSV9BBP
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This editable electronic alarm is an accessory designed as an audible and signaling unit for custom assembly. It has a voice signal and its sound acoustic level is adjustable. It has a DIN96 connector and is dust resistant, impact resistant, high pressure washer resistant, vibration resistant, corrosion resistant thanks to its IP69 / IP67, IP66 protection, making it ideal for operation in harsh environments.Editable voice alarms, Harmony XVS, black, mounting 96mm DIN rail, PNP, 12...24V DC
Schneider Electric XVSV9BBP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Assembly Style
- ready assembled
- Associated Fuse Rating
- 1 A
- Clamping Connection Capacity
- <= 1 x 1.5 mm²
- Color
- dark grey
- Current Consumption
- 160 mA 24 V DC
- Depth
- 50.1 mm
- Device Application
- printing || packaging || subway
- Height
- 105 mm
- Input Type
- bit 6 channel input || binary 63 channel input
- Inrush Current
- 30 A
- Marking
- CE
- Material
- PC (polycarbonate) body || PC (polycarbonate) back cover || TPE (thermoplastic elastomer) front panel || NBR (nitrile butadiene rubber)
- Mounting Diameter
- 105 mm
- Mounting Support
- 96 mm DIN rail
- Net Weight
- 0.268 kg
- Overvoltage Category
- class II IEC 61140
- Power Consumption In W
- 3.8 W
- [Ue] Rated Operational Voltage
- 10...30 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V
- [Us] Rated Supply Voltage
- 12...24 V DC
- Width
- 105 mm
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -20-60 °C
- Discrete Output Type
- PNP
- Ip Degree Of Protection
- panel mounted IP65 IEC 60529 || wall mounted IP20
- Noise Level
- 0-97 dB stop or suppress)1 m
- Pollution Degree
- 2
- Protective Treatment
- TC
- Relative Humidity
- 35-85 % without condensation
- Signalling Type
- adjustable vocal sound
- Standards
- IEC 60947-5-1
- Vibration Resistance
- 7 gn
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1311010EN
- Environmental Disclosure
- ENVPEP1311010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Beacon Or Indicator Bank Unit Type
- sound unit
- Device Short Name
- XVSV
- Product Or Component Type
- editable electronic alarm
- Range Of Product
- Harmony XVS
