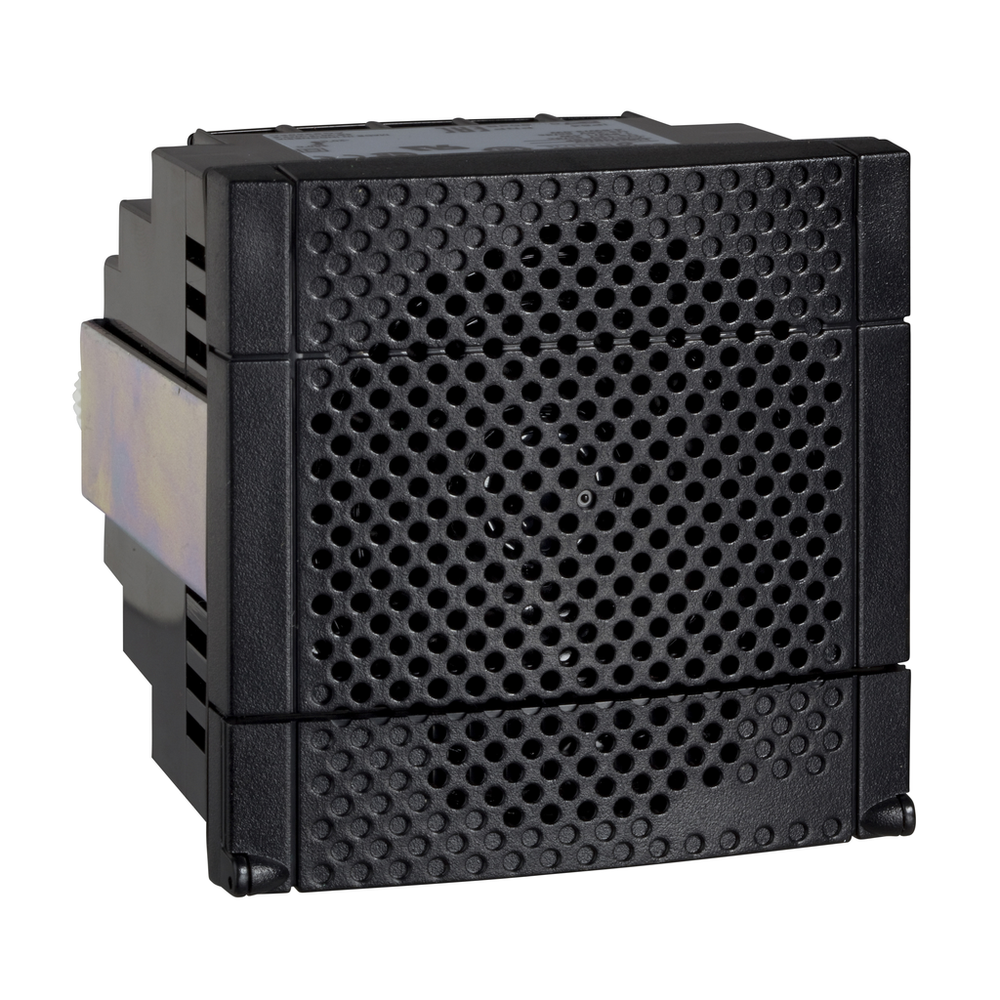

Schneider Electric XVS72BMBN
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This black electronic alarm is part of the range of multi sound sirens and alarms Harmony XVS. This multisound alarm provides 16 tones and is supplied pre-cabled. It can be supplied with 12V to 24V AC/DC and features NPN output type. It allows imple integration with your applications featuring a compact body that’s 20% thinner than the competition. Its protection index is IP54. It weighs 180g. It provides PC (polycarbonate) terminal cover and ABS (acrylonitrile butadiene-styrene) body part. It is designed for long distance signaling applications, used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels. It is CE, UL and CSA certified. It can be mounted on 72mm DIN rail.Electronic alarm, Harmony XVS, black, NPN, mounting support DIN 72, 0…90dB, 16tones, 4 channels, 12…24V AC DC
Schneider Electric XVS72BMBN is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Clamping Connection Capacity
- <= 1 x 1.5 mm²
- Color
- Black
- Current Consumption
- 117 mA 12 V || 125 mA 24 V || 158 mA 12 V || 200 mA 24 V
- Depth
- 69.3 mm
- Height
- 72 mm
- Marking
- CE
- Material
- ABS (acrylonitrile butadiene-styrene) body || PC (polycarbonate) terminal cover
- Mounting Support
- 72 mm DIN rail
- Net Weight
- 0.18 kg
- Overvoltage Category
- class II IEC 61140
- [Uimp] Rated Impulse Withstand Voltage
- 0.8 kV
- [Us] Rated Supply Voltage
- 12...24 V DC
- Width
- 72 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-50 °C
- Ambient Air Temperature For Storage
- -35-70 °C
- Discrete Output Type
- NPN
- Ip Degree Of Protection
- panel mounted IP54 IEC 60529
- Noise Level
- 0-90 dB continuous or intermittent tone)1 m
- Product Certifications
- UR
- Protective Treatment
- TC
- Signalling Type
- 16 tones alarm
- Standards
- UL 464 || IEC 61000-6-3 || IEC 61000-6-2
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1311010EN
- Environmental Disclosure
- ENVPEP1311010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- XVS
- Product Or Component Type
- electronic alarm
- Range Of Product
- Harmony XVS
