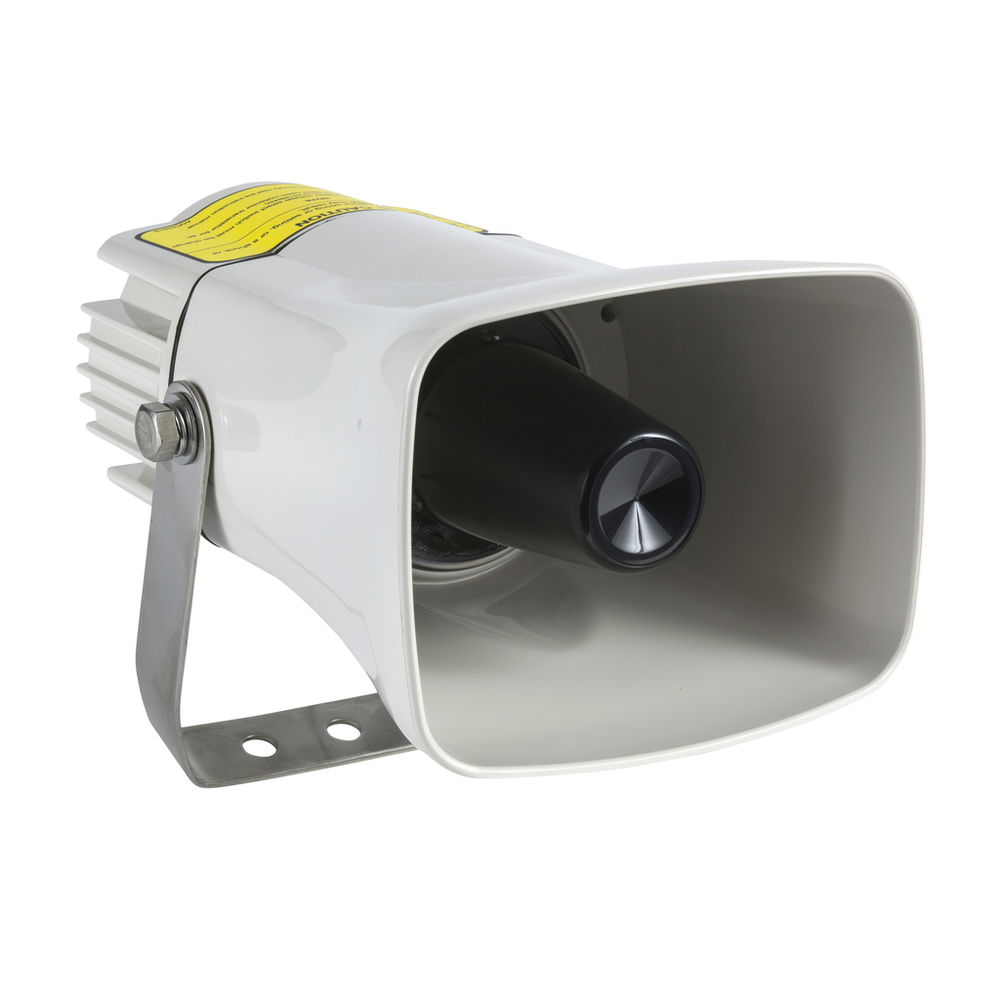

Schneider Electric XVS14MMW
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This white multi-sound siren is part of the range Harmony type XVS multi sound sirens and alarms. It is supplied complete and pre-cabled. Supply voltage is 240V AC and degree of protection is IP 53. It features a sound with continuous or intermittent tone that can be adjusted from 0 to 105dB at 1m and 43 tones. It is designed for long distance indication of the operating status of a machine. It is used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels.Multisound siren, Harmony XVS, prewired, white colour, 0...105dB, 43tones, 240V AC
Schneider Electric XVS14MMW is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Color
- White
- Current Consumption
- 50 mA 240 V
- Depth
- 223 mm
- Electrical Connection
- cable 6.5-8.5 mm, 0.33-0.33 mm² / AWG 22 signalling circuit) || cable 6.5-8.5 mm, 0.52-0.52 mm² / AWG 20 power circuit)
- Fixing Mode
- 3 holes Ø 9 mm
- Height
- 114 mm
- Marking
- CE
- Material
- PC (polycarbonate) back cover || PC (polycarbonate)/ABS (acrylonitrile butadiene-styrene) front || PC (polycarbonate)/ABS (acrylonitrile butadiene-styrene) back
- Mounting Support
- bracket
- Net Weight
- 1.2 kg
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV
- Width
- 140 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-50 °C
- Ambient Air Temperature For Storage
- -35-70 °C
- Ip Degree Of Protection
- IP53 conforming to IEC 60529
- Noise Level
- 0-105 dB continuous or intermittent tone)1 m
- Overvoltage Category
- class II IEC 61140
- Product Certifications
- UL
- Protective Treatment
- TC
- Signalling Type
- 43 tones siren
- Standards
- IEC 61000-6-3 || IEC 60947-5-1 || EN 60947-01 || IEC 61000-6-2
- [Us] Rated Supply Voltage
- 240 V AC
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1411024EN
- Environmental Disclosure
- ENVPEP1411024EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Rohs Exemption Information
- Yes
Specifications
- Device Short Name
- XVS
- Product Or Component Type
- multisound siren
- Range Of Product
- Harmony XVS
