Schneider Electric XVR13M04L
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

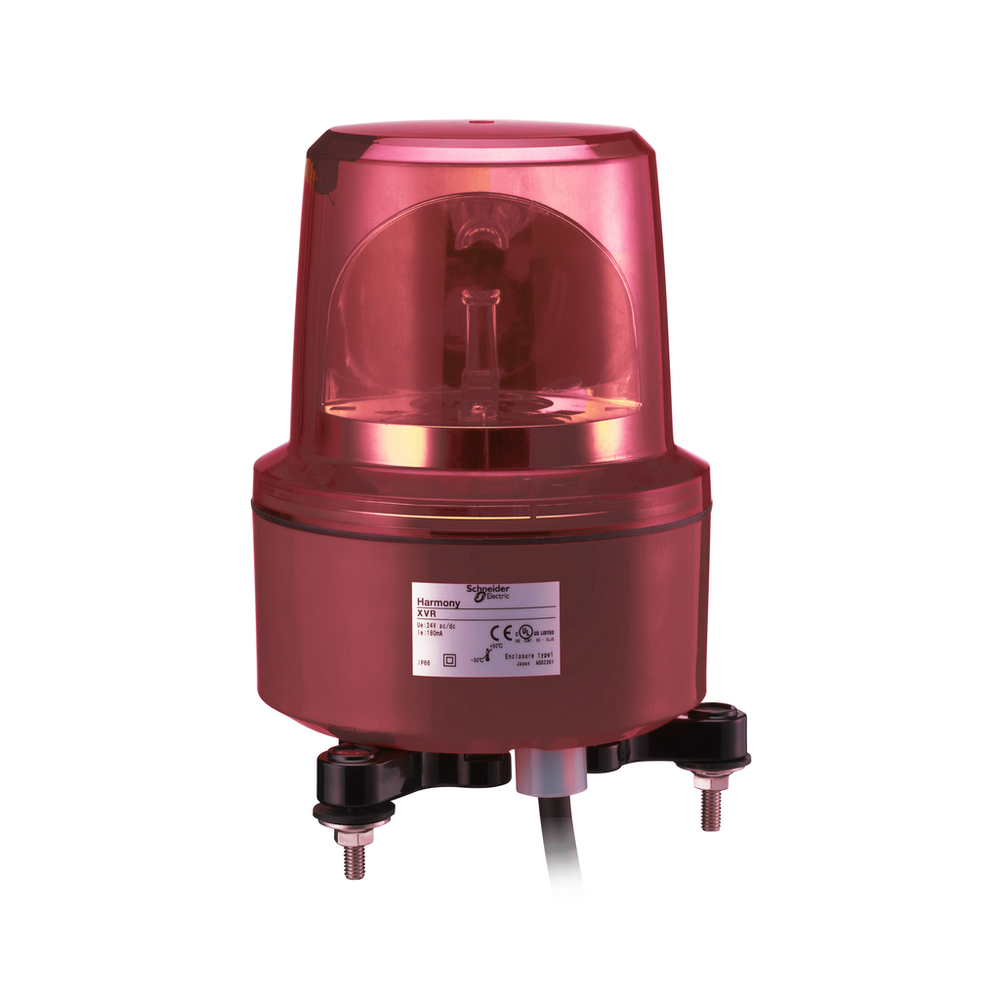

This red beacon is part of the range of rotating beacons Harmony XVR diameter 130mm. It is supplied complete and pre-cabled. Supply voltage is 230V AC and degree of protection is IP 66 and IP 67. It is designed for long distance signaling applications, thanks to the use of “super-bright” LED which provides good illuminating power, a long service life and reduced time for maintenance and also energy saving. It is used mainly in the iron and steel industry, on industrial handling vehicles or for safety applications.Rotating beacon, Harmony XVR, 130mm, red, without buzzer, 230V AC
Schneider Electric XVR13M04L is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Awg Gauge
- AWG 18
- Cable Length
- 400 mm
- Cad Overall Depth
- 130 mm
- Cad Overall Width
- 130 mm
- Clamping Connection Capacity
- 1.25 mm²
- Current Consumption
- 22 mA
- Flashing Frequency
- 2.7 Hz
- Marking
- CE
- Material
- ABS (acrylonitrile butadiene-styrene) body part || PC globe
- Net Weight
- 0.99 kg
- Product Mounting
- by 3 M6 screws
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -30-50 °C
- Ambient Air Temperature For Storage
- -35-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
- Protective Treatment
- TC
- Standards
- EN/IEC 60947-5-1 || EN/IEC 60947-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1402018EN
- Environmental Disclosure
- ENVPEP1402018EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
Specifications
- Device Short Name
- XVR
- Ip Degree Of Protection
- IP66 IEC 60529 || IP67 IEC 60529
- Light Source
- high luminosity LED, red
- Mounting Diameter
- 130 mm
- Product Or Component Type
- prewired rotating mirror beacon
- Range Of Product
- Harmony XVR
- Sound Signalling
- without
- [Us] Rated Supply Voltage
- 230 V AC
