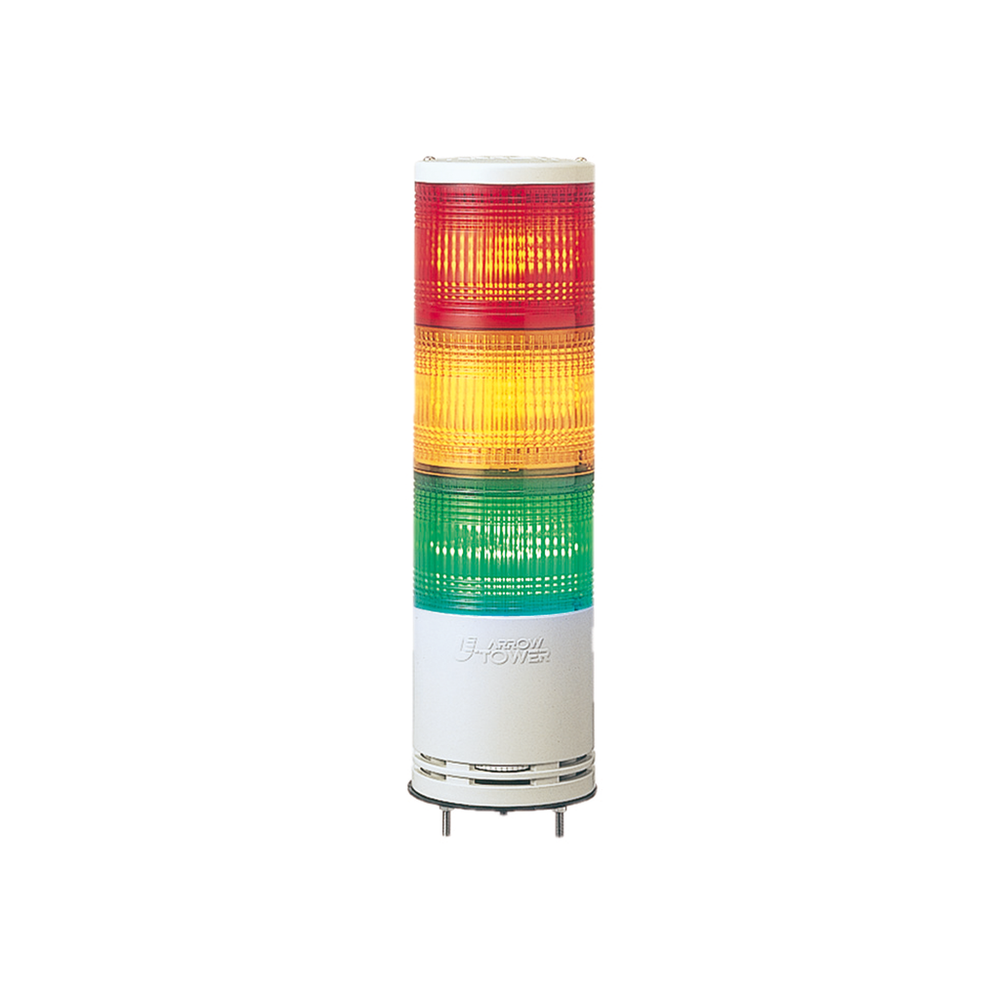

Schneider Electric XVC1B3SK

Complementary

• Awg Gauge
  • AWG 18 || AWG 22
• Cable Cross Section
  • 0.83-0.83 mm² || 0.33-0.33 mm²
• Cable Length
  • 500 mm
• Current Consumption
  • 350 mA
• Flashing Frequency
  • 0.7-3 Hz
• Height
  • 372 mm
• Marking
  • CE
• Material
  • polycarbonate illuminated unit || ABS (acrylonitrile butadiene-styrene) base unit || PBT + ABS (UL94-V0) top cover
• Net Weight
  • 1.1 kg
• Product Mounting
  • on base
• [Uimp] Rated Impulse Withstand Voltage
  • 0.8 kV

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -30-50 °C
• Ambient Air Temperature For Storage
  • -35-70 °C
• Electrical Shock Protection Class
  • class II EN/IEC 61140
• Ip Degree Of Protection
  • IP54 EN/IEC 60529
• Product Certifications
  • UL
• Protective Treatment
  • TC
• Standards
  • EN/IEC 61000-6-4 || EN/IEC 61000-6-3 || EN/IEC 61000-6-2

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1904008EN
• Environmental Disclosure
  • ENVPEP1904008EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Rohs Exemption Information
  • Yes

Specifications

• Beacon Or Indicator Bank Unit Type
  • 3 illuminated units
• Component Name
  • XVC
• Light Source
  • LED steady or flashing red || LED steady or flashing orange || LED steady or flashing green
• Mounting Diameter
  • 100 mm
• Noise Level
  • 60-85 dB continuous or intermittent tone)1 m
• Product Or Component Type
  • complete pre-wired monolithic tower light
• Range Of Product
  • Harmony XVC1
• Sound Signalling
  • buzzer
• Supply Circuit Type
  • DC
• [Us] Rated Supply Voltage
  • 24 V
