Schneider Electric XVBC4B5
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

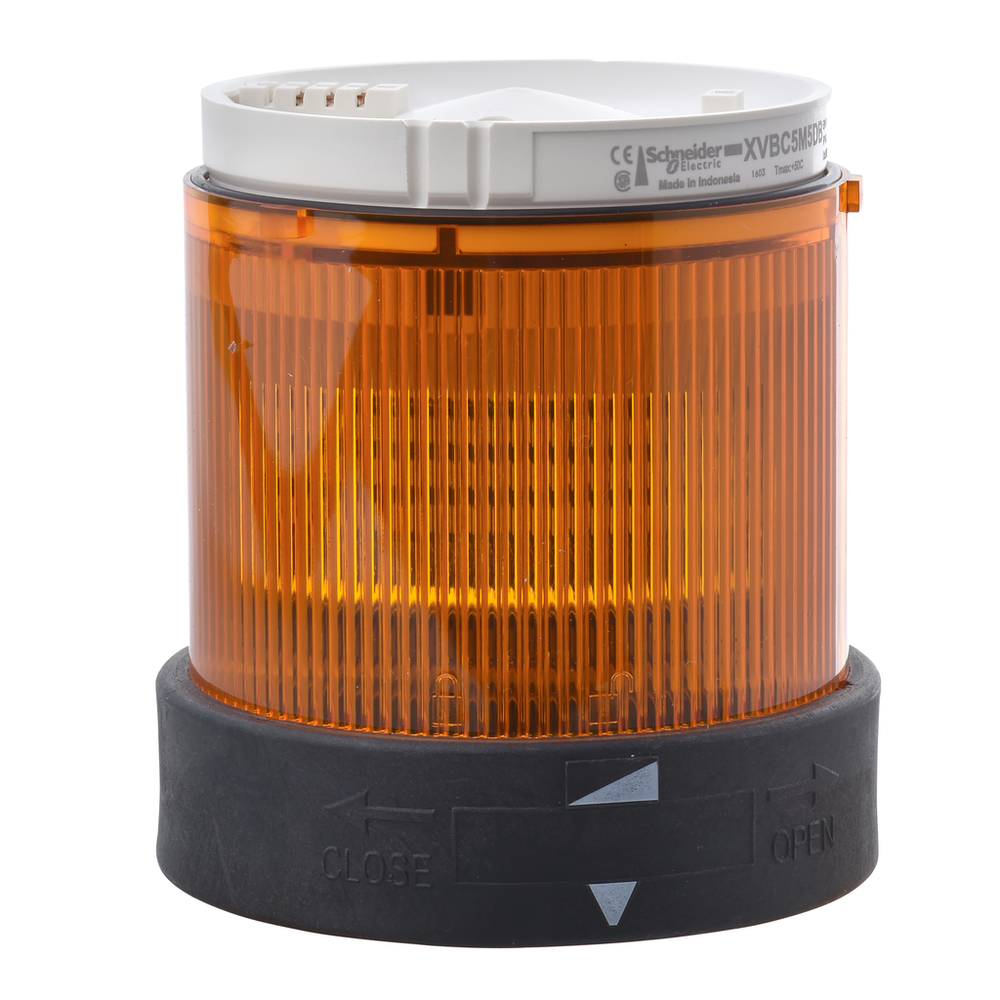

This orange illuminated unit is designed to be connected with base to create complete tower light. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.Indicator bank, Harmony XVB, illuminated unit, plastic, orange, 70mm, flashing, for bulb or LED, 24V AC, 24...48V DC
Schneider Electric XVBC4B5 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Assembly Style
- customer assembly, up to 5 units
- Cad Overall Depth
- 70 mm
- Cad Overall Height
- 63 mm
- Cad Overall Width
- 70 mm
- Connections - Terminals
- screw clamp terminals, <= 1 x 1.5 mm² with cable end
- Flashing Frequency
- 1-1 Hz
- Maximum Power Dissipation In W
- 7 W
- Net Weight
- 0.16 kg
- Nominal Voltage Limit
- 0.85...1.1 Un IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-50 °C incandescent || -25-50 °C LED
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class I on support tube IEC 61140 || class II on base unit IEC 61140
- Ip Degree Of Protection
- IP65 on fixing base XVBZ0. IEC 60529 || IP66 on base unit IEC 60529
- Nema Degree Of Protection
- Type 4X UL indoor)
- Pollution Degree
- 2
- Product Certifications
- CCC || EAC || CSA C22-2 No 14 || UL 508
- Protective Treatment
- TC
- Standards
- EN/IEC 60947-5-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP070907EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Beacon Or Indicator Bank Unit Type
- illuminated unit
- Bulb Type
- incandescent BA 15d || protected LED || incandescent
- Component Name
- XVBC
- Light Source
- bulb not included, orange
- Material
- polycarbonate
- Mounting Diameter
- 70 mm
- Product Or Component Type
- indicator bank
- Range Of Product
- Harmony XVB Universal
- Signalling Type
- flashing
- [Us] Rated Supply Voltage
- 24 V AC || 24...48 V DC
