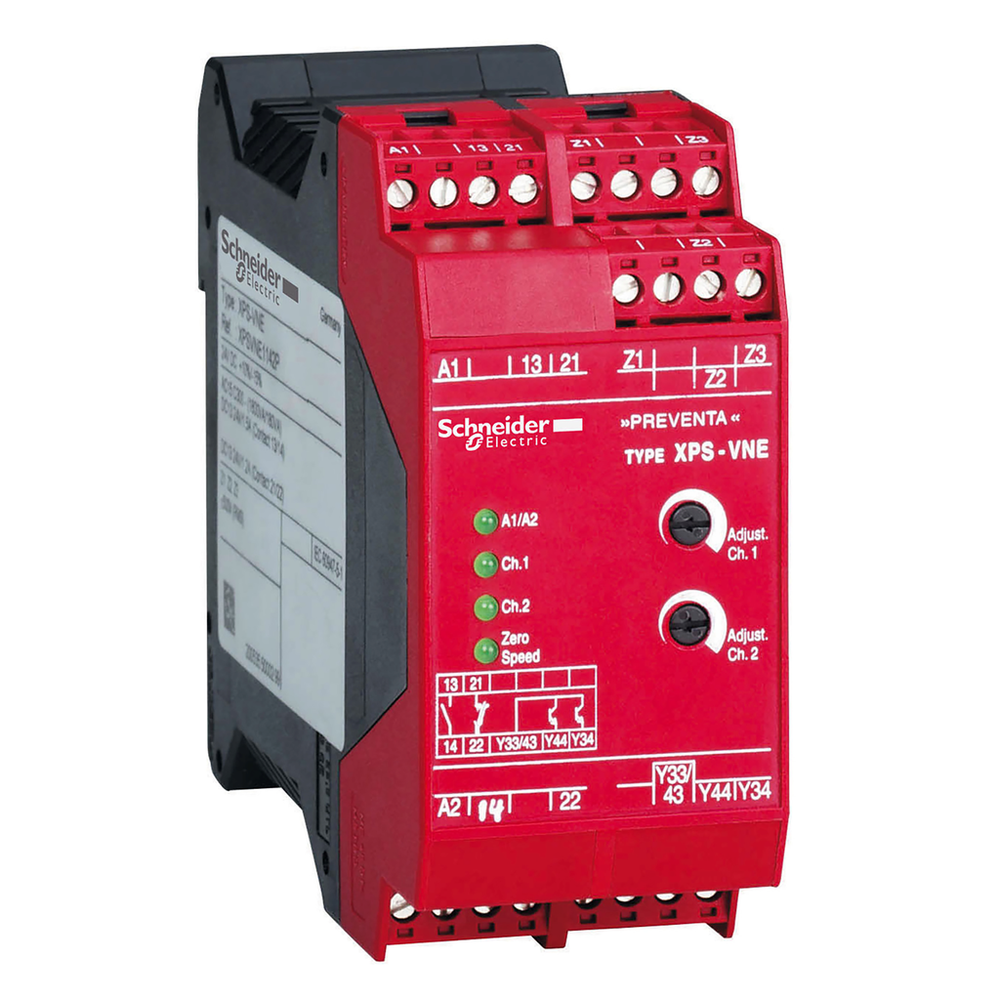

Schneider Electric XPSVNE1142P
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This XPSVNE safety module is for zero-speed detection. It meets the requirements of PL c/Category 2 conforming to EN/ISO 13849-1.and SILCL1 conforming to EN/IEC 61508 and EN/IEC 62061. Used in conjunction with XU2S single-beam photo-electric sensors (periodically tested), it establishes a category 2 light curtain conforming to IEC/EN 61496 parts 1 and 2. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has additional solid-state output for communication with PLCs about safety status of your process.module XPSVN - zero speed detection - 24 V DC for motor power supply <= 60 Hz
Schneider Electric XPSVNE1142P is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 4 A gG relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200
- Breaking Capacity
- 1.2 A 24 V DC-13)50 ms NC relay output circuit || 1.5 A 24 V DC-13)50 ms NO relay output circuit || 10 mA 48 V solid state output circuit || 20 mA 24 V solid state output circuit
- 180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output
- Connections - Terminals
- captive screw clamp terminals, removable terminal block flexible 0.2...1.5 mm² without cable end, 2 wires || captive screw clamp terminals, removable terminal block flexible 0.2...2.5 mm² without cable end, 1 wire || captive screw clamp terminals, removable terminal block flexible 0.25...1 mm² with cable end, without bezel, 2 wires || captive screw clamp terminals, removable terminal block flexible 0.25...2.5 mm² with cable end, with bezel, 1 wire || captive screw clamp terminals, removable terminal block flexible 0.25...2.5 mm² with cable end, without bezel, 1 wire || captive screw clamp terminals, removable terminal block flexible 0.5...1.5 mm² with cable end, with double bezel, 2 wires || captive screw clamp terminals, removable terminal block solid 0.2...1 mm² without cable end, 2 wires || captive screw clamp terminals, removable terminal block solid 0.2...2.5 mm² without cable end, 1 wire
- Depth
- 114 mm
- Height
- 99 mm
- Input Detection Threshold
- 0.01...0.1 V
- Input Voltage
- 500 Vrms
- [Ith] Conventional Free Air Thermal Current
- 2.5 A relay output
- Local Signalling
- 4 LEDs
- Minimum Output Current
- 10 mA relay output
- Minimum Output Voltage
- 17 V relay output
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 0.5 kg
- Power Consumption In W
- 3.5 W
- Product Destination
- for motor power supply <= 60 Hz
- Standards
- EN/IEC 60947-5-1 || EN/IEC 60204-1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV III IEC 60947-5-1 || 4 kV III DIN VDE 0110 parts 1 and 2
- [Ui] Rated Insulation Voltage
- 300 V 2)IEC 60947-5-1 || 300 V 2)DIN VDE 0110 parts 1 and 2
- Width
- 45 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -25-85 °C
- Ip Degree Of Protection
- IP20 terminals)EN/IEC 60529 || IP40 enclosure)EN/IEC 60529
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1406024EN
- Environmental Disclosure
- ENVPEP1406024EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Function Of Module
- monitoring 3-phase motor with star-delta starting || monitoring 3-phase motor with variable number of poles and star-delta starting || monitoring 3-phase motor + variable speed drive || monitoring 3-phase motor || monitoring XPS AK || monitoring star-delta motor starter and guard switch type XCS E || monitoring dc motor
- Number Of Additional Circuits
- 2 solid state outputs
- Output Type
- relay, 1 NO + 1 NC, volt-free
- Product Certifications
- CSA || UL || TÜV
- Product Or Component Type
- Preventa safety module
- Range Of Product
- Preventa Safety automation
- Safety Level
- can reach PL d/category 3 EN/ISO 13849-1 || can reach SILCL 2 EN/IEC 62061
- Safety Module Application
- for zero speed detection
- Safety Module Name
- XPSVNE
- Safety Reliability Data
- MTTFd = 124.1 years EN/ISO 13849-1 || DC > 99 % EN/ISO 13849-1 || PFHd = 9.26E-9 1/h EN/IEC 62061
- [Us] Rated Supply Voltage
- 24 V DC - 15...10 %
