Description

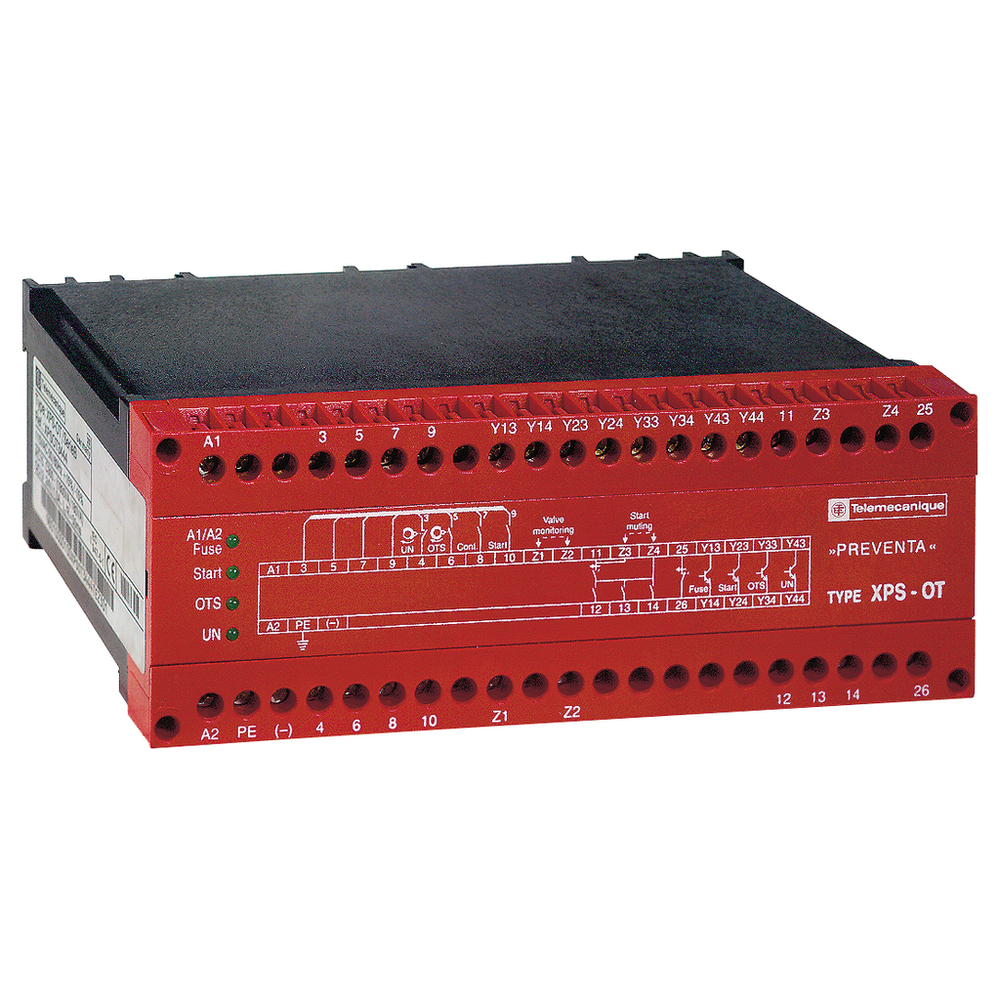

module XPSOT - stop at top dead center with automatic overtravel - 115 V AC
Schneider Electric XPSOT3444 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 4 A gG relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200
- Breaking Capacity
- 10 mA 48 V solid state output circuit || 20 mA 24 V solid state output circuit || 1.5 A 24 V DC-13)50 ms relay output
- 180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output
- Connections - Terminals
- captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² with cable end || captive screw clamp terminals, 2 x 2.5 mm² without cable end
- Depth
- 118 mm
- Enclosure Material
- polycarbonate
- Height
- 73 mm
- Input Protection Type
- internal, electronic
- [Ith] Conventional Free Air Thermal Current
- 2.5 A
- Local Signalling
- 4 LEDs
- Maximum Response Time On Input Open
- 20 ms
- Minimum Output Current
- 10 mA relay output
- Minimum Output Voltage
- 17 V relay output
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 1.1 kg
- Number Of Terminal Blocks
- 42
- Power Consumption In Va
- 12 VA
- Supply Frequency
- 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV III IEC 60647-5-1, DIN VDE 0110 part 1
- [Ui] Rated Insulation Voltage
- 300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1
- Width
- 200 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -25-85 °C
- Ip Degree Of Protection
- IP10 terminals)IEC 60529 || IP40 enclosure)IEC 60529
- Product Certifications
- CSA || UL || TÜV
- Standards
- IEC 692 || IEC 60947-5-1 || IEC 60204-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1408008EN
- Environmental Disclosure
- ENVPEP1408008EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Enclosure Type
- removable
- Function Of Module
- safety stop with automatic overtravel monitoring and control
- Number Of Additional Circuits
- 4 solid state outputs
- Output Type
- relay, 3 NO, volt-free
- Product Or Component Type
- Preventa safety module
- Range Of Product
- Preventa Safety automation
- Safety Level
- can reach PL e/category 4 ISO 13849-1 || can reach SILCL 3 IEC 62061
- Safety Module Application
- safety stop with automatic overtravel monitoring and control
- Safety Module Name
- XPSOT
- Safety Reliability Data
- MTTFd = 60.9 years ISO 13849-1 || DC = 0...99 % ISO 13849-1 || PFHd = 1.33E-8 1/h IEC 62061
- [Us] Rated Supply Voltage
- 115 V AC - 15...15 %
