Description

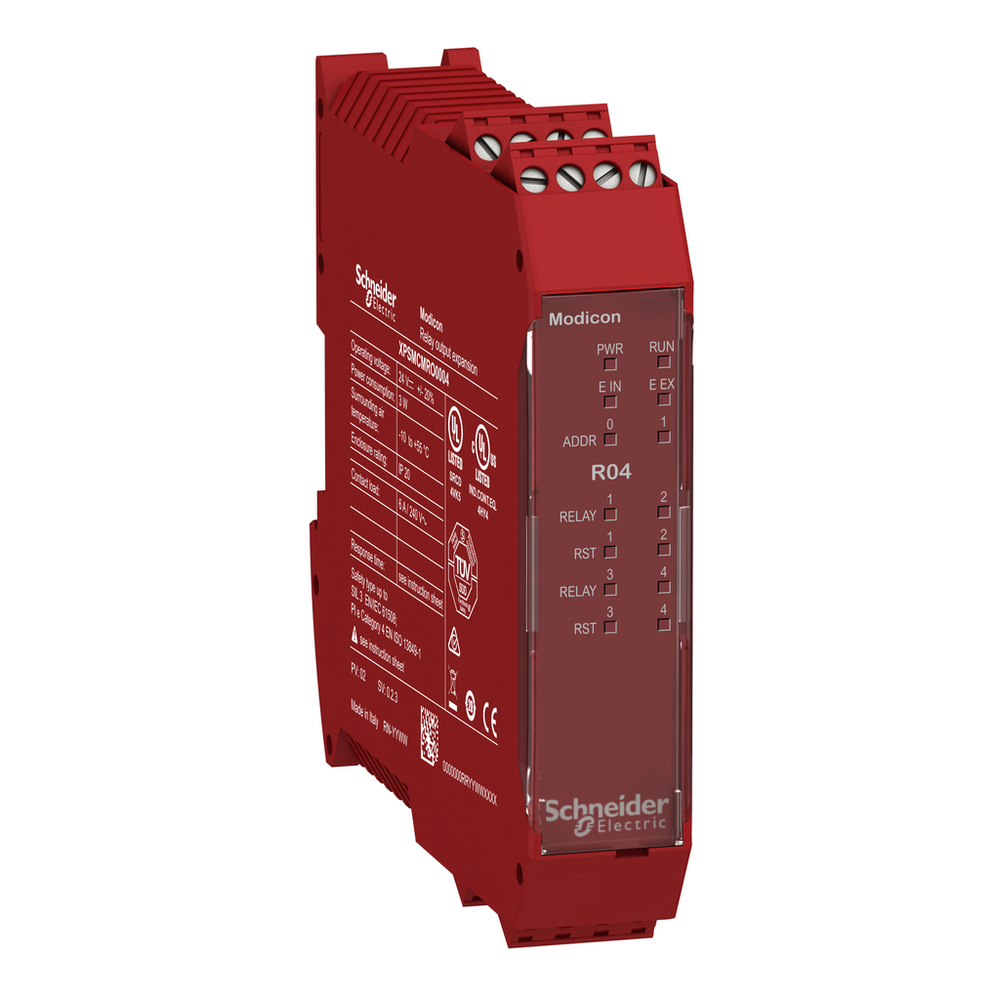

This Modicon MCM safe relay output expansion module has 4 start/restart interlock inputs, 4 relays and is fitted with captive screw clamp terminals. It is designed to monitor safety actuators for relay outputs, with a rated supply voltage of 24V DC and a maximum power dissipation of 3W. It is furnished with screw clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. The safe relay modules type XPSMCMER0004 use guided contact safety relays, each of which provides two N.O. contacts and one N.C. contact in addition to the N.C. feedback contact. This safe relay output expansion module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, inputs status, restart signal, output channels). The safe relay output modules type XPSMCMER0002 and XPSMCMER0004 do not require the backplane expansion connectors as they are directly wired to the selected OSSD. It weighs 0.3kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. The safe controller CPU Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessory for safe relay output module is a memory card. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.expansion module, Modicon MCM, 4 safety relay outputs, with backplane connection, screw
Schneider Electric XPSMCMRO0004 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 3.5 A, slow-blow
- Cable Cross Section
- 0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mm² - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end
- Connections - Terminals
- 2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block
- Depth
- 114.5 mm
- Height
- 99 mm
- Integrated Connection Type
- backplane expansion bus
- Local Signalling
- 1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 4 LEDs green/red RELAY K1...K4 relay contact || 4 LEDs yellow RST reset
- Maximum Power Dissipation In W
- 3 W
- Maximum Switching Current
- 6 A
- Maximum Switching Voltage
- 400 V AC || 250 V DC
- Minimum Switching Current
- 20 mA
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Net Weight
- 0.3 kg
- Number Of Terminal Blocks
- 4
- Output Type
- relay, 4 NO, volt-free
- Quality Labels
- CE
- Quantity Per Set
- 1
- Safety Level
- can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508 || SILCL 3 IEC 62061
- Switching Time
- 12 ms
- Switching Voltage
- 10 V DC
- Width
- 22.5 mm
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -20-85 °C
- Electrical Durability
- 20000000 cycles
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to EN/IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3
- Insulation
- 250 V AC between power supply and housing EN/IEC 61800-5-1
- Ip Degree Of Protection
- IP20
- Mechanical Durability
- 20000000 cycles
- Overvoltage Category
- II
- Pollution Degree
- 2
- Product Certifications
- TÜV || RCM || cULus
- Relative Humidity
- 10-95 %
- Safety Reliability Data
- B10d = 300000 AC-15 230 V, , <3 A EN/ISO 13849-1 || B10d = 750000 AC-15 230 V, , <1 A EN/ISO 13849-1 || B10d = 10000000 DC-13 24 V, , <2 A EN/ISO 13849-1
- Service Life
- 20 year(s)
- Shock Resistance
- 10 gn 16 ms 1000 shocks on each axis)EN/IEC 61496-1
- Standards
- IEC 62061 || EN/ISO 13849-1 || EN/IEC 61800-5-1 || EN/IEC 61508
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 61800-5-1
- Vibration Resistance
- +/-0.35 mm 10-55 Hz)EN/IEC 61496-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1409010EN
- Environmental Disclosure
- ENVPEP1409010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- XPSMCM
- Discrete Output Number
- 8-8 solid state 125 mA diagnostics)
- Electrical Connection
- screw terminal
- Function Of Module
- monitoring safety actuators relay output
- Number Of Outputs
- 4 relay
- Product Or Component Type
- safe relay output module
- Range Of Product
- Preventa Safety automation
- [Us] Rated Supply Voltage
- 24 V - 20...20 % DC
