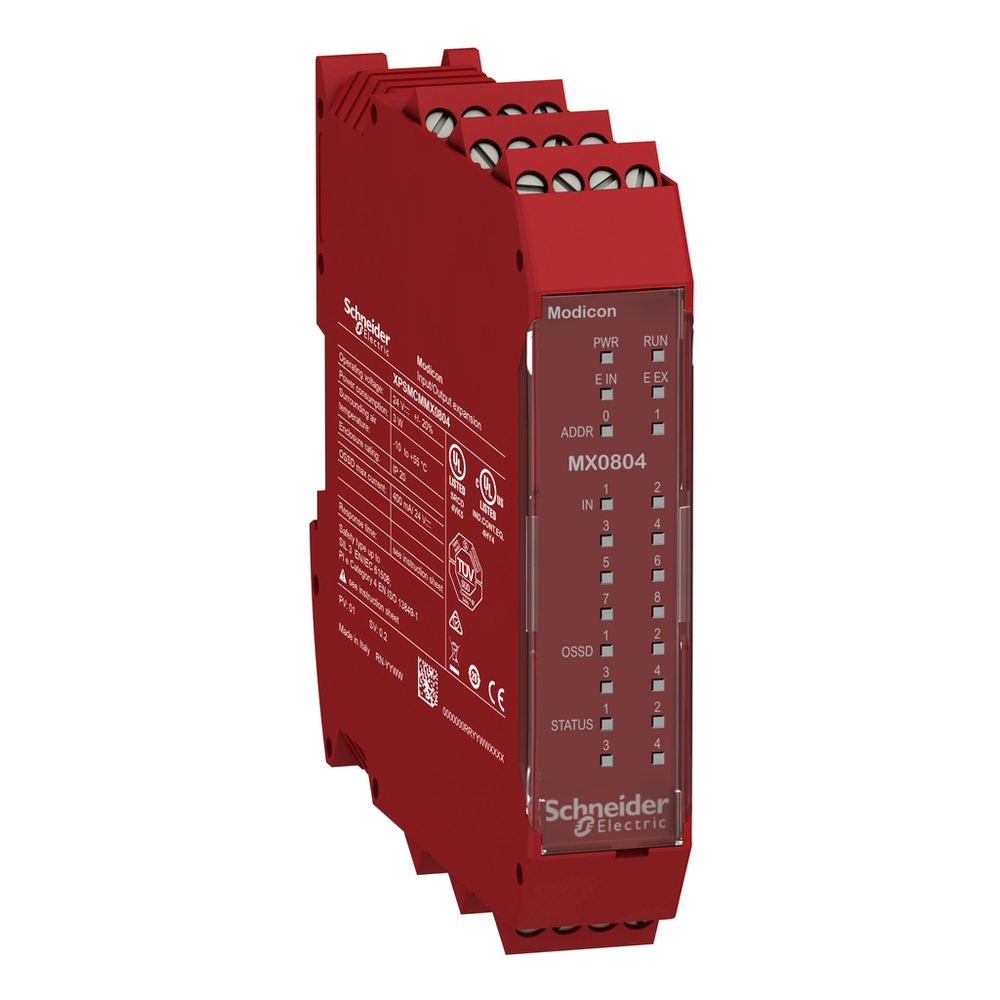

Schneider Electric XPSMCMMX0804
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Modicon MCM safe mixed I/O expansion module has 8 digital inputs, 2 start/restart interlock inputs, 4 single channel OSSD (400 mA output current), 4 test outputs, 2 status outputs and is fitted with captive screw clamp terminals. It is designed to monitor remotely your safe I/O. It is furnished with screw clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. This safe mixed I/O module figures configurable filters and delays for each single input, configurable output activation and de-activation delays, independent control of pairs of outputs, and configurable diagnostic output signals. This module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, input and output status). This safe I/O module is connected to the safety controller via the backplane expansion connector. It weighs 0.25kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This safe I/O module is certified by RCM, CULus and TÜV. It can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PLe conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL3 conforming to IEC 62061. This safe I/O module can only be configured with XPSMCMC10804 or XPSMCMC10804G safety controlles CPU. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.expansion module, Modicon MCM, 8 inputs 4 outputs, screw
Schneider Electric XPSMCMMX0804 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Cross Section
- 0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mm² - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end
- Connections - Terminals
- 2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block
- Depth
- 22.5 mm
- Discrete Input Voltage
- 24 V DC
- Discrete Output Current
- 400 mA || 100 mA
- Discrete Output Voltage
- 24 V DC
- Height
- 99 mm
- Integrated Connection Type
- backplane expansion bus
- Load Type
- resistive load
- Local Signalling
- 1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 8 LEDs yellow IN input status || 4 LEDs green/red OUT output status || 4 LEDs yellow STATUS output status
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Net Weight
- 0.25 kg
- Number Of Terminal Blocks
- 6
- Output Load
- 60 Ohm
- Power Consumption In W
- 3 W
- Power Dissipation In W
- 3 W
- Quality Labels
- CE
- Safety Level
- can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508 || SILCL 3 IEC 62061
- Width
- 114.5 mm
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -20-85 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to EN/IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3
- Insulation
- 250 V AC between power supply and housing EN/IEC 61800-5-1
- Ip Degree Of Protection
- IP20 enclosure)
- Overvoltage Category
- II
- Pollution Degree
- 2
- Product Certifications
- cULus || TÜV || RCM
- Relative Humidity
- 10-95 %
- Safety Reliability Data
- DC > 99 % || MTTFd = 166 years high || PFHd = 1.32E-8 1/h
- Service Life
- 20 year(s)
- Shock Resistance
- 10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
- Standards
- EN/IEC 61800-5-1 || EN/IEC 61508 || EN/ISO 13849-1 || IEC 62061
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 61800-5-1
- Vibration Resistance
- +/-0.35 mm 10-55 Hz)EN/IEC 61496-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1409010EN
- Environmental Disclosure
- ENVPEP1409010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- XPSMCM
- Discrete Input Type
- isolated
- Discrete Output Type
- PNP
- Electrical Connection
- screw terminal
- Function Of Module
- monitoring safety detection discrete input || monitoring safety dialogue discrete input || monitoring safety actuators discrete output
- Number Of Inputs
- 8.0 digital || 4.0 digital external device monitoring
- Number Of Outputs
- 4.0 test line control || 4.0 safety outputs OSSD contactor/drive connection || 4.0 configurable diagnostic connection
- Product Or Component Type
- safe mixed I/O expansion module
- Range Of Product
- Preventa Safety automation
- [Us] Rated Supply Voltage
- 24 V - 20...20 % DC
