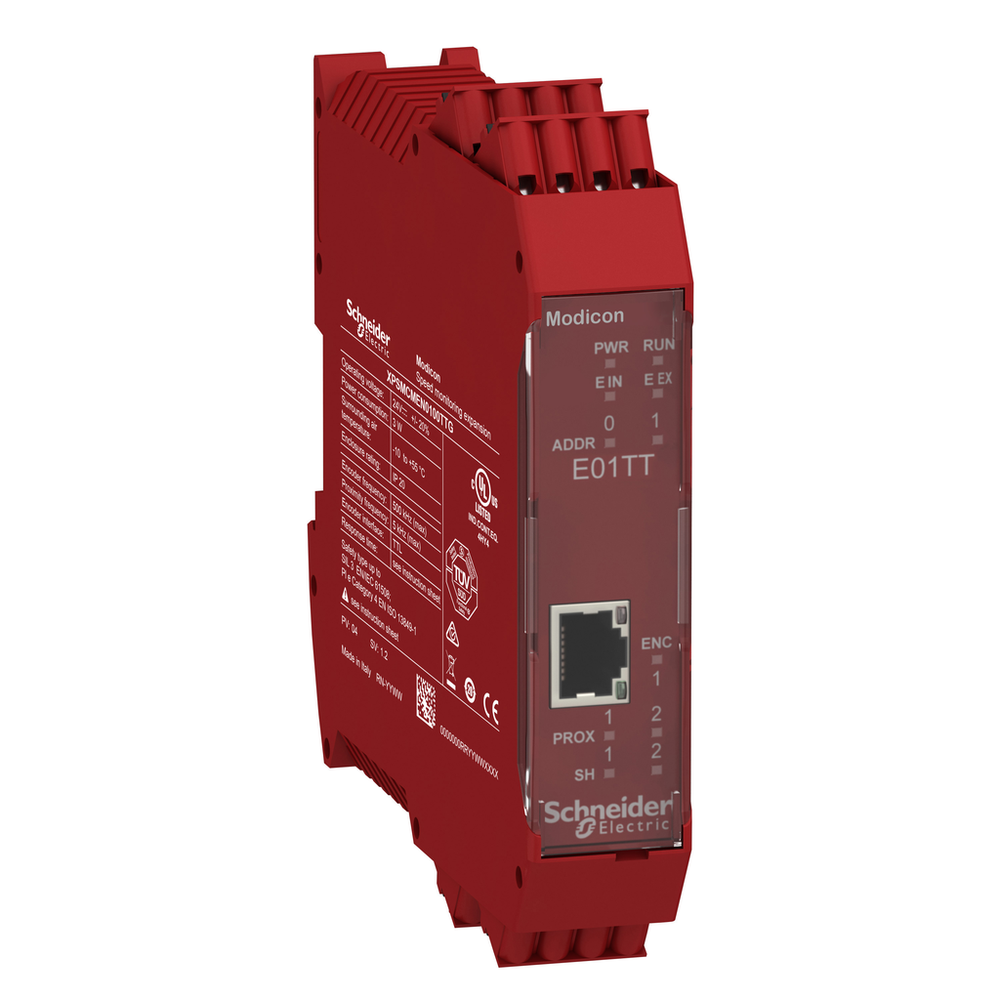

Schneider Electric XPSMCMEN0100TTG
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Modicon MCM safe speed monitoring module has 1 TTL encoder input (with RJ45 connector) and 2 proximity sensor inputs (connection via terminal) and is fitted with captive spring clamp terminals. It is designed to monitor zero speed control, max speed (limited speed), speed range and direction. It has a rated supply voltage of 24V DC. It offers up to four logically selectable limited speed thresholds (freely configurable via SoSafe Configurable software) for each logical intput (axis), and a maximum input frequency of 500kHz (for encoders) and 5kHz for proximity sensors. It completes your safety CPU with safe-speed monitoring function, ideal for cutting machines like band-saw, circular saw and grinding machines. This module figures LEDs on its front face, displaying the status (power supply, reset, internal or external errors, node address, encoder or proximity sensors connection status, speed monitoring status). The safe speed monitoring module is connected to the safety controller via the backplane expansion connector. It weighs 0.28kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. This module can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL 3 conforming to IEC 62061. The modular safety controllers Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The safe speed monitoring module instals on Omega 35mm DIN rail conforming to EN 50022, and is connected to the safety controller via the backplane expansion connector. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.Speed monitoring 1 TTL encoder expansion module with spring term
Schneider Electric XPSMCMEN0100TTG is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Cross Section
- 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1 mm² - AWG 20...AWG 18 flexible with cable end, with double bezel
- Connections - Terminals
- 1 spring clamp terminals, removable terminal block || 2 spring clamp terminals, removable terminal block
- Depth
- 22.5 mm
- Electrical Connection
- 1 connector RJ45 EIA/TIA-568-A
- Height
- 99 mm
- Integrated Connection Type
- backplane expansion bus
- Local Signalling
- 1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 1 LED yellow ENC encoder connection status || 2 LEDs yellow PROX proximity sensors connection status || 2 LEDs yellow SH speed monitoring status
- Maximum Input Frequency
- 5 kHz sensor || 500 kHz encoder TTL
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Net Weight
- 0.28 kg
- Number Of Terminal Blocks
- 4
- Power Consumption In W
- 3 W
- Power Dissipation In W
- 3 W
- Quality Labels
- CE
- Safety Level
- can reach category 4 EN/ISO 13849-1 || can reach PL = e EN/ISO 13849-1 || type 4 EN/IEC 61496-1 || SILCL 3 IEC 62061
- Sensor Type
- inductive proximity sensor
- Width
- 114.5 mm
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -20-85 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to EN/IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3
- Insulation
- 250 V AC between power supply and housing EN/IEC 61800-5-1
- Ip Degree Of Protection
- IP20 enclosure)
- Overvoltage Category
- II
- Pollution Degree
- 2
- Product Certifications
- TÜV || cULus || RCM
- Relative Humidity
- 10-95 %
- Service Life
- 20 year(s)
- Shock Resistance
- 10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
- Standards
- EN/IEC 61508 || IEC 62061 || EN/ISO 13849-1 || EN/IEC 61496-1 || EN/IEC 61800-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 61800-5
- Vibration Resistance
- +/-0.35 mm 10-55 Hz)EN/IEC 61496-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1409010EN
- Environmental Disclosure
- ENVPEP1409010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- XPSMCM
- Discrete Input Voltage
- 24 V DC
- Electrical Connection
- spring terminal
- Function Of Module
- speed monitoring
- Product Or Component Type
- safe speed monitoring module
- Range Of Product
- Preventa Safety automation
- [Us] Rated Supply Voltage
- 24 V - 20...20 % DC
