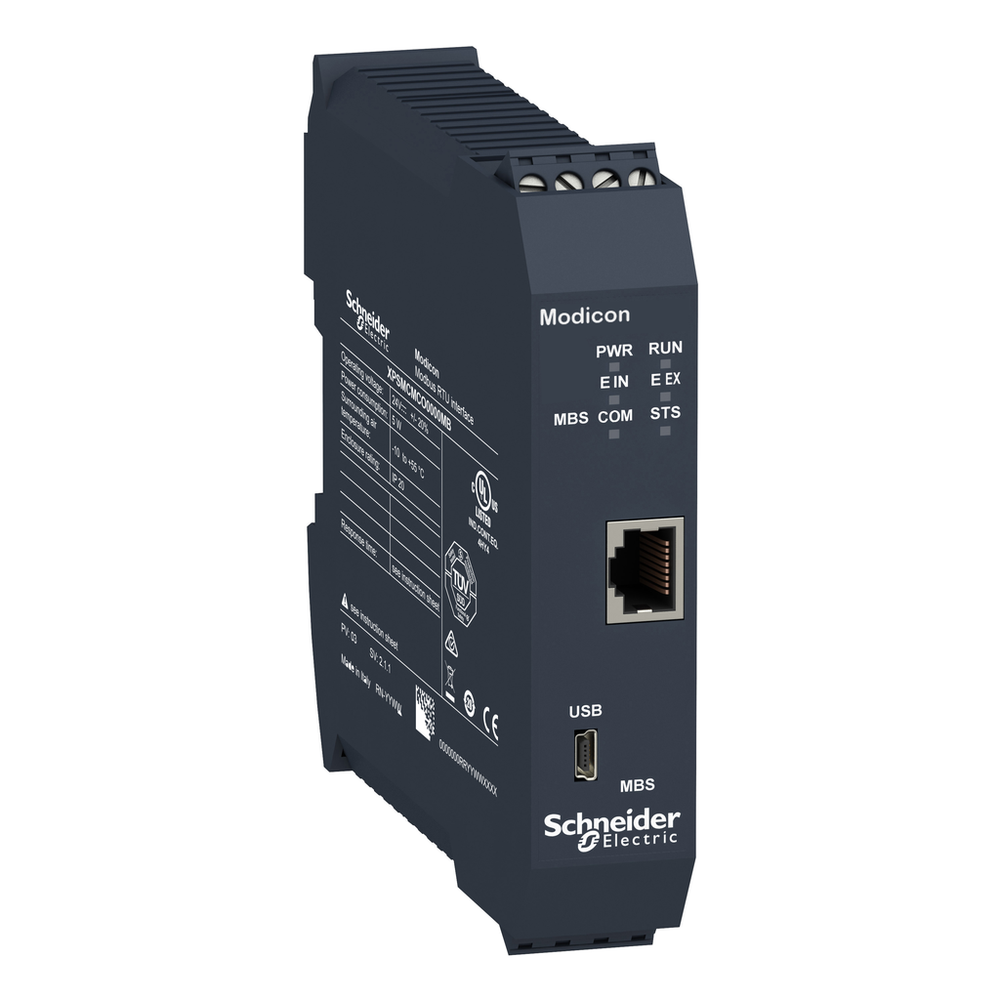

Schneider Electric XPSMCMCO0000MB
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Modicon MCM standard ("non-safe") communication module has one Modbus Serial RTU connection with a RJ45 connector. It is designed to monitor remotely your safety system with the commonly used Modbus serial protocol, without additional gateways. It is furnished with screw clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. The non-safe communication modules are designed for diagnostics connection and data communication purposes to machine field bus or network systems. Its transmission rate varies from 1.2kbit/s and 38.4kbit/s. This communication module is connected to the safety controller via the backplane expansion connector. It weighs 0.3kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. The maximum cable distance between two devices is 1000m. This Modicon MCM standard ("non-safe") communication module is certified by RCM, CULus and TÜV. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The communication module instals on Omega 35mm DIN rail conforming to EN 50022, and is connected to the safety controller via the backplane expansion connector. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.expansion module, Modicon MCM, Modbus SL diagnostic, screw
Schneider Electric XPSMCMCO0000MB is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Cable Cross Section
- 0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel || 0.2-1 mm² - AWG 24...AWG 18 solid without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end
- Communication Port Protocol
- Modbus serial
- Connections - Terminals
- 2 captive screw clamp terminals, removable terminal block
- Connector Type
- RJ45
- Current Consumption
- 0.125 mA
- Depth
- 114.5 mm
- Height
- 99 mm
- Local Signalling
- LED green PWR power ON || LED green RUN operating || LED red E IN internal error || LED red E EX external error || LED green/red NET connection state || LED green/red STS communication status
- Maximum Cable Distance Between Devices
- 1000 m
- Method Of Access
- server
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Net Weight
- 0.3 kg
- Number Of Port
- 1
- Power Dissipation In W
- 3 W
- Quality Labels
- CE
- Range Compatibility
- Preventa XPSMCM
- Transmission Rate
- 1.2 kbit/s || 2.4 kbit/s || 4.8 kbit/s || 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
- Width
- 22.5 mm
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -20-85 °C
- Electromagnetic Compatibility
- electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2 || susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to EN/IEC 61000-4-3 || susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3
- Insulation
- 250 V AC between power supply and housing EN/IEC 61800-5-1
- Ip Degree Of Protection
- IP20
- Operating Altitude
- 6561.68 ft (2000 m)
- Overvoltage Category
- II
- Pollution Degree
- 2
- Product Certifications
- cULus || RCM || TÜV
- Relative Humidity
- 10-95 %
- Service Life
- 20 year(s)
- Shock Resistance
- 10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
- Vibration Resistance
- +/-0.35 mm 10-55 Hz)EN/IEC 61496-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1409010EN
- Environmental Disclosure
- ENVPEP1409010EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Device Short Name
- XPSMCM
- Product Or Component Type
- non-safe communication module
- Range Of Product
- Modicon MCM
- [Us] Rated Supply Voltage
- 24 V - 20...20 % DC
