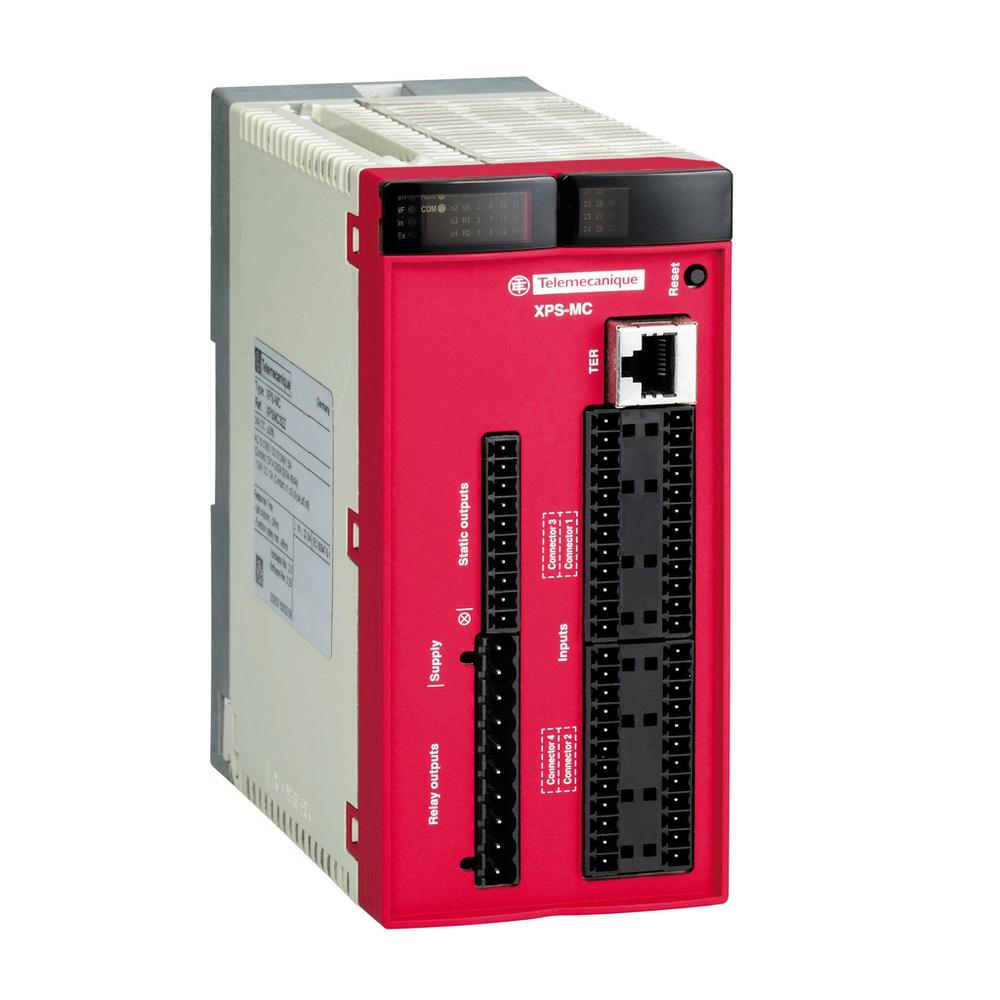

Schneider Electric XPSMC32Z
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This product is part of preventa XPCMC configurable safety controller range. It is a configurable safety controller. It is supplied with 24 V DC. It has 32 safety inputs. It conforms to Category 4 maximum conforming to EN 954-1/EN/ISO 13849-1, PLE safety level conforming to EN/ISO 13849-1 and SIL 3 level conforming to IEC 61508. It embeds 1 RJ45 port for a serial link communication with Modbus protocol. The transmission rate are 1200bps, 2400 bps, 4800bps, 9600bps or 19200bps. This product measures 153mm depth, 151.5mm height, and 74mm width. It weighs 0.84kg. This safety controller is designed for monitoring multiple safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This product is certified by CSA, UL and TÜV. It conforms to EN 954-1/EN/ISO 13849-1, EN/IEC 61496-1, IEC 61508, EN/IEC 60204-1, EN 1760-1/ISO 13856-1, EN 574/ISO 13851 and EN/IEC 60947-5-1 standards. The Safety controller XPSMC is configurable and addressable using software XPSMCWIN running on a PC and using a USB/RJ45 cable type TCSMCNAM3M002P to connect to the safety controller. It installs with a mounting plate for mounting on rail. Preventa XPSMC configurable safety controller is designed to provide a solution for safety applications requiring conformity to Performance Level PL e/Category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508. The configurable safety controller consists of 6 variants with 16 or 32 digital inputs and 8 digital outputs and communication possibilities of Modbus RTL Serial, Profibus DP and CANopen.safety controller, Harmony XPS MC, 24V DC, 32 inputs, 46 LEDs signalling
Schneider Electric XPSMC32Z is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 16 A gL power supply || 4 A gL relay output || 6 A fast blow relay output
- Breaking Capacity
- 2 A 24 V static output circuit || 1.5 A 24 V DC-13)50 ms relay output
- 180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output
- Data Format
- 1 start bit/8 data bits || 1 stop bit even or odd || 2 stop bits without parity || RTU (Remote Terminal Unit) mode
- Depth
- 153 mm
- Exchange Size
- 14 words
- Function Of Module
- dynamic monitoring of hydraulic valves on linear presses || monitoring safety stop at top dead centre on eccentric press || muting function of light curtains || position selector || safety mat monitoring || safety time delays || shaft/chain breaking monitor || zero speed detection || light curtain monitoring category 4 EN/IEC 61496 || two-hand control category 3 EN 574/ISO 13851 || eccentric press || emergency stop monitoring, with or without time delay, 1 or 2-channel wiring || enabling switch monitoring, 2 or 3 contacts || foot switch monitoring || guard monitoring for injection presses and blowing machines || guard monitoring with 1 or 2 limit switches || hydraulic press || magnetic switch monitoring
- Height
- 151.5 mm
- Input Protection Type
- external fuse 16 A
- [Ith] Conventional Free Air Thermal Current
- 16 A relay output || 6.5 A static output circuit
- Local Signalling
- 46 LEDs
- Maximum Line Resistance
- 100 Ohm <2000 m
- Method Of Access
- slave
- Minimum Output Current
- 10 mA relay output
- Minimum Output Voltage
- 17 V relay output
- Mounting Support
- mounting plate
- Net Weight
- 0.84 kg
- Number Of Addresses
- 1-247 Modbus
- Output Thermal Current
- 4 A for both outputs simultaneously || 6 A for 1 output and 2 A for the other relay output
- Output Type
- 2 relays, 2 NO contacts (4 NO total) || solid state, 6, volt-free
- Parity
- even Modbus || no Modbus || odd Modbus
- Power Consumption In W
- 12 W
- Response Time
- configurable : 20 ms or 30 ms with software XPSMCWIN
- Supported Modbus Function
- 01 8-bit output data/32-bit input data || 02 32-bit input data/8-bit output data || 03 information and errors
- Synchronisation Time Between Inputs
- depending on configuration selected
- [Uc] Control Circuit Voltage
- 28.8 V
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV III IEC 60647-5-1, DIN VDE 0110 part 1
- [Ui] Rated Insulation Voltage
- 300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1
- Width
- 74 mm
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -25-85 °C
- Ip Degree Of Protection
- IP20 conforming to EN/IEC 60529
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1406025EN
- Environmental Disclosure
- ENVPEP1406025EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Communication Port Protocol
- Modbus 1 RJ45, serial link 1200 bps, 2400 bps, 4800 bps, 9600 bps or 19200 bps
- Number Of Inputs
- 32
- Product Certifications
- CSA || UL || TÜV
- Product Or Component Type
- configurable safety controller
- Range Of Product
- Preventa Safety automation
- Safety Level
- can reach PL e/category 4 EN 954-1/EN/ISO 13849-1 || can reach SIL 3 IEC 61508
- Safety Module Name
- XPSMC
- Safety Use Category
- category 4 maximum EN 954-1/EN/ISO 13849-1 || PLE maximum EN/ISO 13849-1 || SIL 3 maximum IEC 61508
- Standards
- EN 954-1/EN/ISO 13849-1 || EN/IEC 61496-1 || EN/IEC 60947-5-1 || IEC 61508 || EN 1760-1/ISO 13856-1 || EN 574/ISO 13851 || EN/IEC 60204-1
- Type Of Start
- configurable
- [Us] Rated Supply Voltage
- 24 V DC - 20...20 %
