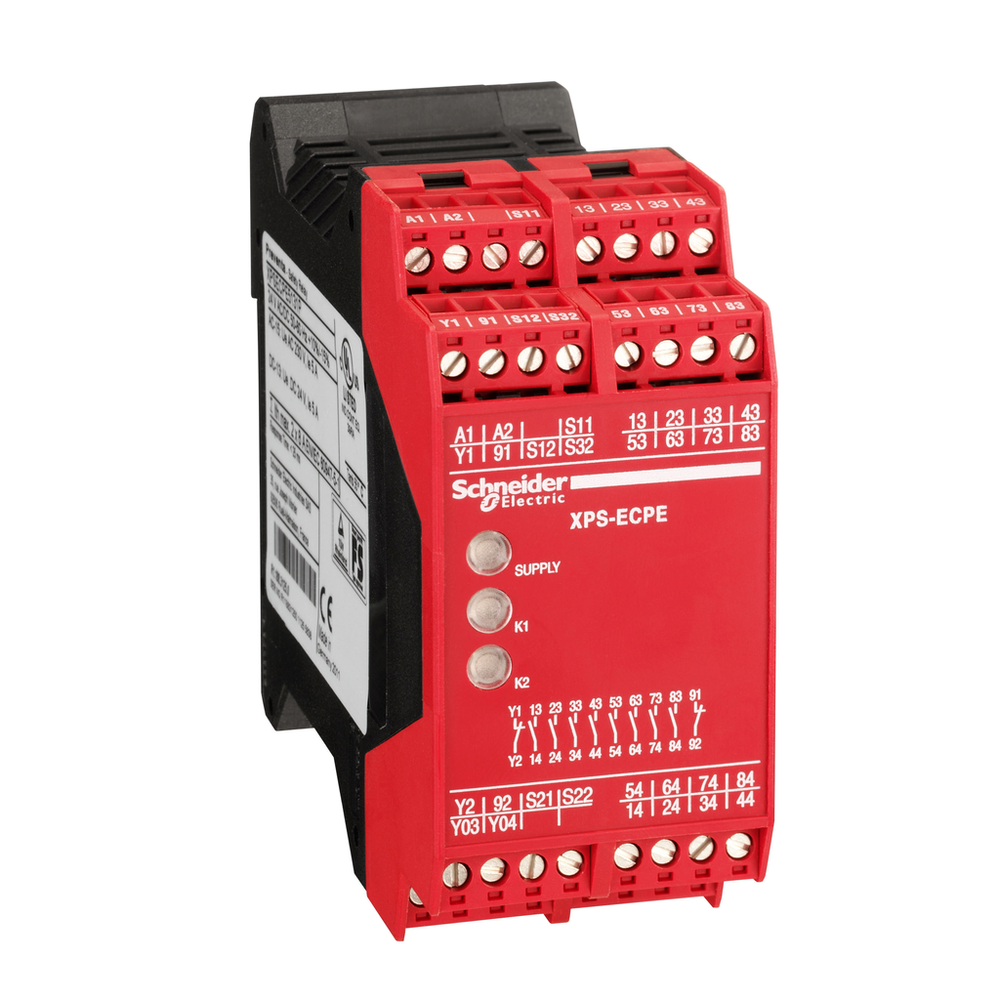

Schneider Electric XPSECPE5131C
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This XPSECPE safety module allows to expand the number of safety contacts available on XPS base modules. It is supplied with 24V AC/DC, has 4 safety circuits, 2 additional outputs and removable spring terminals. This safety module meets the requirements of PL e/Category 4 conforming to EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061 (when connected to the appropriate module). It allows extension of the number of safety contacts, are available as additions to Preventa XPS base modules (Emergency stop, limit switch, two-hand control, etc.). 24V AC/DC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has spring terminals for fast and reliable wiring of safety circuits.module XPSEC - increasing the number of safety contacts - 24 V AC DC
Schneider Electric XPSECPE5131C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 6 A gG relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200
- Breaking Capacity
- 360 VA holding AC-15 B300 relay output || 3600 VA inrush AC-15 B300 relay output
- 3 A 24 V DC-13)50 ms relay output || 20 mA 24 V solid state output circuit
- Connections - Terminals
- spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end || spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end || spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel || spring terminals, removable terminal block, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel || spring terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid without cable end || spring terminals, removable terminal block, 2 x 0.2...2 x 1 mm² flexible without cable end || spring terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel || spring terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel
- Input Protection Type
- internal, electronic
- [Ith] Conventional Free Air Thermal Current
- 24 A relay output
- Local Signalling
- 3 LEDs
- Maximum Response Time On Input Open
- 10 ms
- Minimum Output Current
- 10 mA relay output
- Minimum Output Voltage
- 5 V relay output
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 0.65 kg
- Output Thermal Current
- 6 A per relay relay output
- Power Consumption In Va
- 4 VA
- Supply Frequency
- 50/60 Hz
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV III EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2
- [Ui] Rated Insulation Voltage
- 300 V 2)EN/IEC 60947-5-1, DIN VDE 0110 parts 1 & 2
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP20 terminals)EN/IEC 60529 || IP40 enclosure)EN/IEC 60529
- Product Certifications
- TÜV || CSA || UL
- Standards
- EN/IEC 60947-5-1 || EN/IEC 60204-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1406024EN
- Environmental Disclosure
- ENVPEP1406024EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Function Of Module
- increasing the number of safety contacts
- Number Of Additional Circuits
- 2 NC + 1 solid state output
- Output Type
- relay, 8 NO, volt-free
- Product Or Component Type
- Preventa safety module
- Range Of Product
- Preventa Safety automation
- Safety Level
- can reach PL e/category 4 can reach the maximum safety level of module base EN/ISO 13849-1 || can reach SILCL 3 can reach the maximum safety level of module base EN/IEC 62061
- Safety Module Application
- increasing the number of safety contacts
- Safety Module Name
- XPSECPE
- Safety Reliability Data
- MTTFd > 100 years EN/ISO 13849-1 || DC = 0...99 % EN/ISO 13849-1 || PFHd = 2.47E-8 1/h EN/IEC 62061
- [Us] Rated Supply Voltage
- 24 V AC - 15...10 % || 24 V DC - 15...10 %
