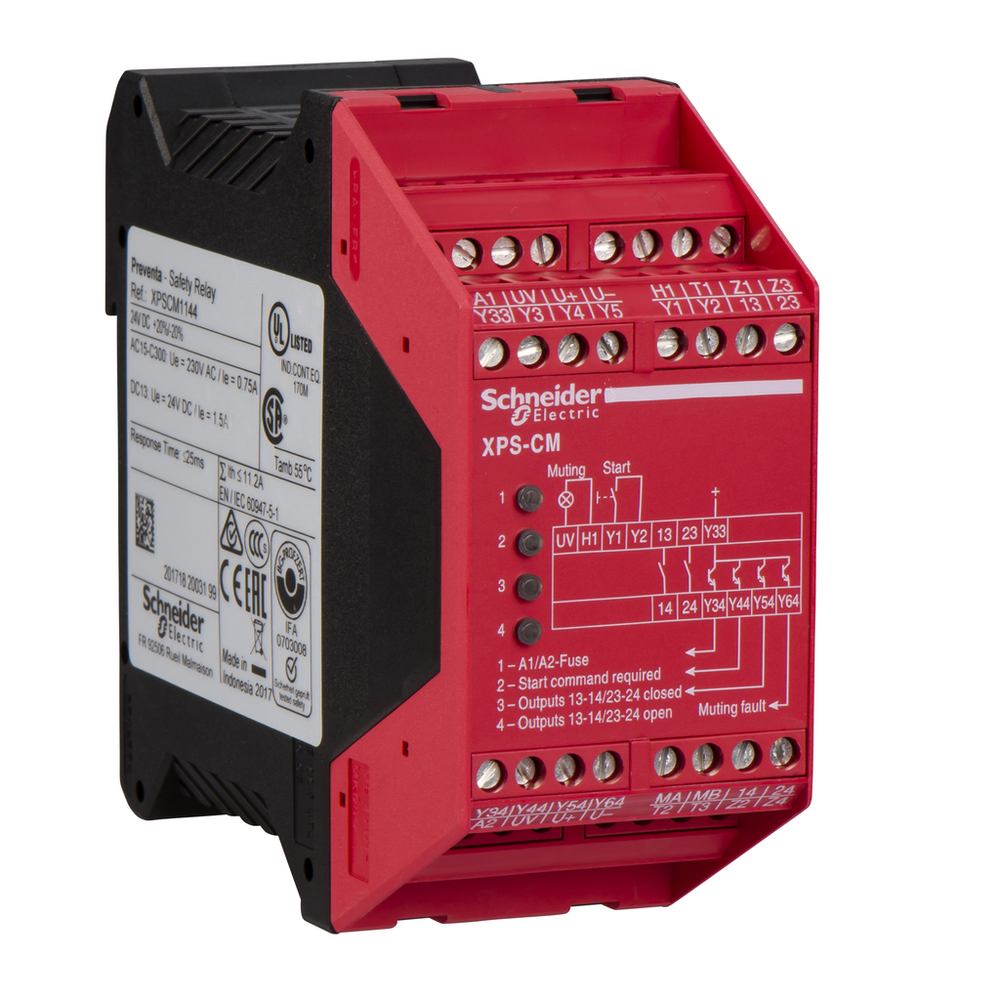

Schneider Electric XPSCM1144P

Complementary

• Associated Fuse Rating
  • 4 A gG relay output DIN VDE 0660 part 200 || 4 A gG relay output EN/IEC 60947-5-1 || 6 A fast blow relay output DIN VDE 0660 part 200 || 6 A fast blow relay output EN/IEC 60947-5-1
• Breaking Capacity
  • 180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output
  • 20 mA 24 V solid state output || 1.5 A 24 V DC-13)50 ms relay output
• Input Current
  • 200 mA muting function
• Local Signalling
  • 1 LED electronic internal fuse status || 1 LED restarting || 1 LED safety outputs closed || 1 LED safety outputs open || 1 incandescent lamp muting 4-6.5 W
• Maximum Line Resistance
  • 10 Ohm sensor power supply
• Maximum Response Time On Input Open
  • 25 ms
• Maximum Supply Current For Sensors
  • 200 mA
• Minimum Output Current
  • 10 mA relay output
• Minimum Output Voltage
  • 17 V relay output
• Muting Maximum Duration
  • 60 s - 10...30 %)
• Output Thermal Current
  • 5.6 A per relay || 11 A maximum
• Power Consumption In W
  • 15 W
• Protection Type
  • electronic internal fuse
• Sensor Power Supply
  • U+, U- 24-24 V DC
• Synchronisation Time Between Inputs
  • 3 s +/- 20 %) for the activation of the MA/MB muting signal
• [Uimp] Rated Impulse Withstand Voltage
  • 4 kV III DIN VDE 0110 parts 1 and 2 || 4 kV III EN/IEC 60947-5-1
• [Ui] Rated Insulation Voltage
  • 300 V 2)DIN VDE 0110 parts 1 and 2 || 300 V 2)EN/IEC 60947-5-1

Contractual warranty

• Warranty
  • 18 months

Environment

• Ambient Air Temperature For Operation
  • -10-55 °C
• Ambient Air Temperature For Storage
  • -25-85 °C
• Ip Degree Of Protection
  • IP20 IEC 60529 terminals) || IP40 IEC 60529 enclosure)

Offer Sustainability

• California Proposition 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• China Rohs Regulation
  • X
• Circularity Profile
  • ENVEOLI1406024EN
• Environmental Disclosure
  • ENVPEP1406024EN
• Eu Rohs Directive
  • Pro-active compliance (Product out of EU RoHS legal scope)
• Mercury Free
  • Yes
• Pvc Free
  • Yes
• Reach Regulation
  • Reference contains Substances of Very High Concern above the threshold
• Rohs Exemption Information
  • Yes
• Sustainable Offer Status
  • Green Premium product
• Weee
  • The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Specifications

• Connections - Terminals
  • captive screw clamp terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid or flexible without cable end || captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel || captive screw clamp terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel || captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1 mm² solid without cable end || captive screw clamp terminals, removable terminal block, 2 x 0.2...2 x 1.5 mm² flexible without cable end || captive screw clamp terminals, removable terminal block, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel || captive screw clamp terminals, removable terminal block, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel
• Function Of Module
  • built-in muting
• Input Compatibility
  • XC limit switch muting function || XU2M18PP340... muting function || XU2S18PP340... (infrared) sensor || XU9M18PP340... muting function
• Input Voltage
  • 24 V DCsensor || 24 V DC U+, U-)muting function
• Number Of Additional Circuits
  • 0
• Number Of Inputs
  • 2 MA, MB)muting function || 4 Z1, Z2, Z3, Z4)sensor
• Output Type
  • relay 2 NO 13-14, 23-24), volt-free
• Product Or Component Type
  • safety module
• Range Of Product
  • Telemecanique Safety light curtains XUSL
• Safety Level
  • can reach category 2 with the appropriate control system and correctly wired EN/ISO 13849-1 || can reach SILCL 1 with the appropriate control system and correctly wired EN/IEC 62061 || can reach PL = c with the appropriate control system and correctly wired EN/ISO 13849-1
• Safety Module Application
  • for monitoring of single beam photo-electric sensor
• Safety Module Name
  • XPSCM
• Safety Reliability Data
  • MTTFd = 16.6 years EN/ISO 13849-1 || DC = 95.5 % EN/ISO 13849-1 || PFH = 3.12E-7 1/h EN/IEC 61508 || PFHd = 3.12E-7 1/h EN/IEC 62061
• [Us] Rated Supply Voltage
  • 24 V DC - 20...20 %
