Description

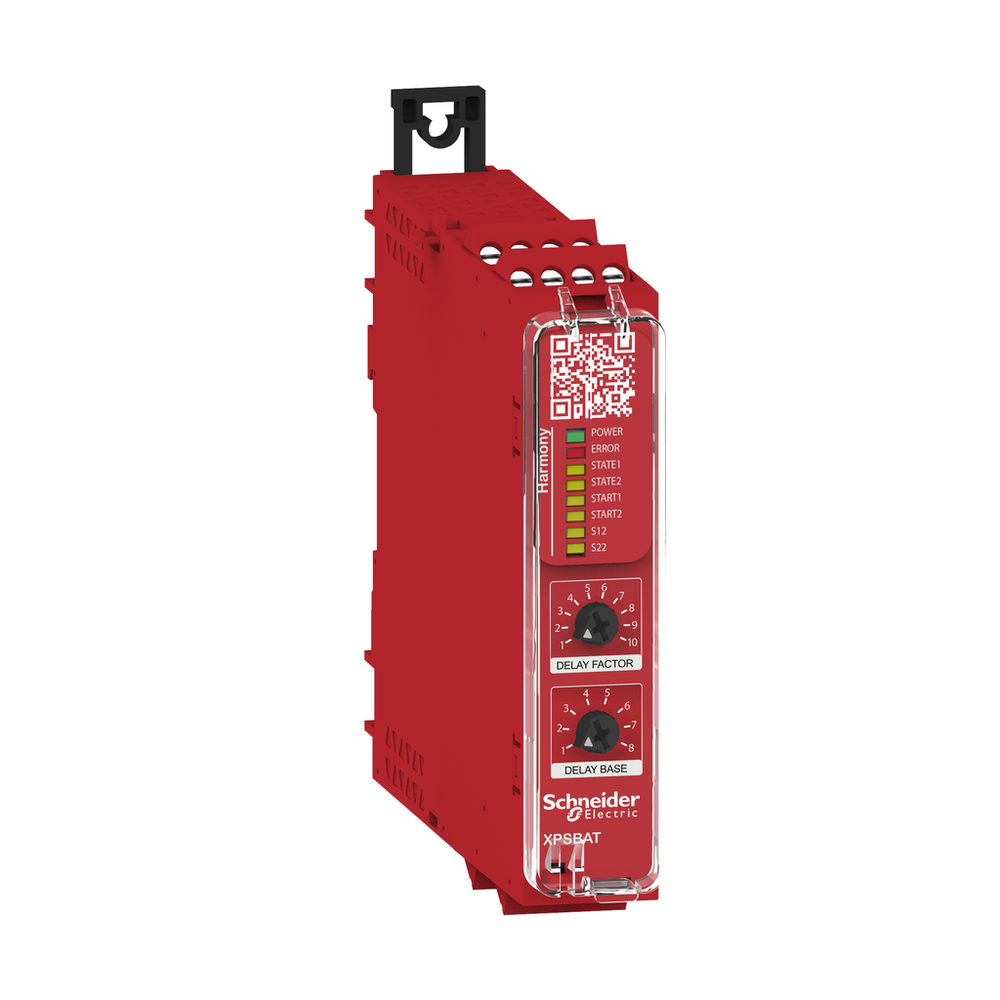

This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, RFID safety switch and Safety light curtain. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 2 safety inputs, 3 control outputs, 2 NO immediate, 3 NO configurable and 1 NC configurable safety output, 1 diagnostic output. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Basic offers the most optimised solution for applications with hardwired safety modules.safety module, Harmony XPS, time delayed output, for Estop, guard, OSSD, 24V AC or DC, screw
Schneider Electric XPSBAT12A1AP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 6 A gG NO relay output circuit IEC 60947-1
- Auxiliary Contact Composition
- 2 NO immediate || 1 NO configurable
- Depth
- 120 mm
- Height
- 100 mm
- [Ie] Rated Operational Current
- 5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact
- Input Compatibility
- normally closed circuit ISO 14119 || mechanical contact ISO 14119 || OSSD pair IEC 61496-1-2 || normally closed circuit ISO 13850 || 3-wire proximity sensors PNP
- Input/Output Type
- semiconductor output 24 V DC, 20 mA Z1, not safety-related
- Input Protection Type
- internal, electronic
- [Ith] Conventional Free Air Thermal Current
- 12 A
- Local Signalling
- LED green power power ON || LED red error error || LED yellow state 1 safety output instantaneous || LED yellow state 2 safety output delayed || LED yellow start 1 start || LED yellow start 2 start || LED yellow S12 safety input S12 || LED yellow S22 safety input S22
- Maximum Line Resistance
- 500 Ohm
- Maximum Response Time On Input Open
- 20 ms
- Minimum Output Current
- 20 mA relay output
- Minimum Output Voltage
- 24 V relay output
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 0.350 kg
- Number Of Inputs
- 2 positive safety input 24 V DC 5
- Number Of Outputs
- 3 on/off configurable pulsed output
- Power Consumption In Va
- 5 VA 24 V AC 50/60 Hz
- Power Consumption In W
- 2 W 24 V DC
- Synchronisation Time Between Inputs
- 0.5 s || 2 s
- Time Delay Range
- 0...900 s off
- Type Of Start
- automatic/manual/monitored
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV II EN/IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 2)EN/IEC 60947-1
- Width
- 22.5 mm
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -25-85 °C
- Ip Degree Of Protection
- IP20 terminals)EN/IEC 60529 || IP40 housing)EN/IEC 60529 || IP54 mounting area)EN/IEC 60529
- Product Certifications
- TÜV || cULus
- Relative Humidity
- 5-95 % non-condensing
- Standards
- IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional safety standard || IEC 61508-7 functional safety standard || ISO 13849-1 functional safety standard || IEC 62061 functional safety standard
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1811003EN
- Environmental Disclosure
- ENVPEP1811003EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Connections - Terminals
- removable screw terminal block, 0.2...2.5 mm² solid or flexible || removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor || removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel || removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
- Electrical Circuit Type
- NC pair || OSSD pair
- Function Of Module
- emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE)
- Product Or Component Type
- safety module
- Range Of Product
- Harmony Safety Automation
- Safety Level
- can reach PL e/category 4 for normally open relay contact ISO 13849-1 || can reach SILCL 3 for normally open relay contact IEC 62061 || can reach SIL 3 for normally open relay contact IEC 61508 || can reach PL c/category 1 for normally closed relay contact ISO 13849-1 || can reach SILCL 1 for normally closed relay contact IEC 62061 || can reach SIL 1 for normally closed relay contact IEC 61508
- Safety Module Application
- for emergency stop and protective guard applications || for OSSD monitoring
- Safety Module Name
- XPSBAT
- Safety Reliability Data
- MTTFd > 30 years ISO 13849-1 || Dcavg >= 99 % ISO 13849-1 || PFHd = 0.98E-09 for SS0 ISO 13849-1 || PFHd = 0.96E-09 for SS1 ISO 13849-1 || HFT = 1 IEC 62061 || PFHd = 0.98E-09 for SS0 IEC 62061 || PFHd = 0.96E-09 for SS1 IEC 62061 || SFF > 99% IEC 62061 || HFT = 1 IEC 61508-1 || PFHd = 0.98E-09 for SS0 IEC 61508-1 || PFHd = 0.96E-09 for SS1 IEC 61508-1 || SFF > 99% IEC 61508-1 || type = B IEC 61508-1
- [Us] Rated Supply Voltage
- 24 V AC - 15...10 % || 24 V DC - 20...20 %
