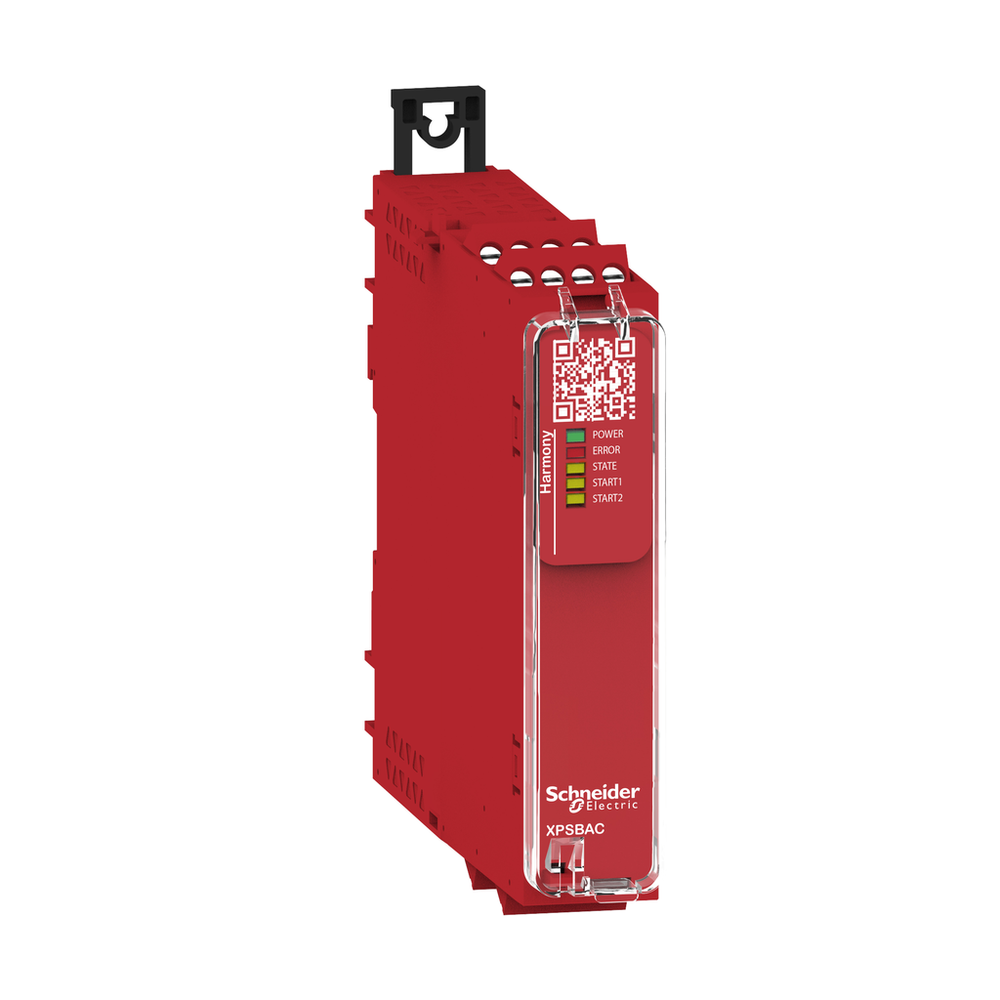

Schneider Electric XPSBAC14AP
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This safety relay is designed for monitoring Emergency stop and Guard switch. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This basic safety modules embeds pre-defined safety functions. This safety relay embeds 1 control output, 4 NO safety outputs, and 2 NC diagnostic outputs. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO13849-1, SILCL 3 conforming to IEC62061, SIL 3 conforming to IEC61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC 60947-5-1, IEC 61508-1, IEC 61508-2/-3, ISO 13849-1, IEC 62061 functional safety standards, is certified by cULus, TÜV. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Basic offers the most optimised solution for applications with hardwired safety modules.safety module, Harmony XPS, estop or guard, connected to supply terminals 24V AC or DC , no inputs, screw
Schneider Electric XPSBAC14AP is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 10 A gG NO relay output circuit IEC 60947-1
- Auxiliary Contact Composition
- 4 NO + 1 NC
- Depth
- 120 mm
- Height
- 100 mm
- [Ie] Rated Operational Current
- 5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact || 3 A AC-1 for normally closed relay contact || 1 A AC-15 for normally closed relay contact || 3 A DC-1 for normally closed relay contact || 1 A DC-13 for normally closed relay contact
- Input Compatibility
- normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850
- Input Protection Type
- internal, electronic
- [Ith] Conventional Free Air Thermal Current
- 6 A
- Local Signalling
- LED green power power ON || LED red error error || LED yellow state status || LED yellow start1 start input || LED yellow start2 start input
- Minimum Output Current
- 10 mA relay output
- Minimum Output Voltage
- 5 V relay output
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 0.200 kg
- Number Of Inputs
- 0
- Number Of Outputs
- 0
- Power Consumption In Va
- 3.5 VA 24 V AC 50/60 Hz
- Power Consumption In W
- 1.5 W 24 V DC
- Response Time
- 150 ms at 24 V AC || 80 ms at 24 V DC
- Synchronisation Time Between Inputs
- unlimited
- Terminal Identifier
- power supply
- Type Of Start
- automatic/manual/monitored
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV II EN/IEC 60947-1
- [Ui] Rated Insulation Voltage
- 300 V 2)EN/IEC 60947-1
- Width
- 22.5 mm
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Ip Degree Of Protection
- IP20 terminals)EN/IEC 60529 || IP40 housing)EN/IEC 60529 || IP54 mounting area)EN/IEC 60529
- Product Certifications
- TÜV || cULus
- Relative Humidity
- 5-95 % non-condensing
- Standards
- IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional safety standard || IEC 61508-7 functional safety standard || ISO 13849-1 functional safety standard || IEC 62061 functional safety standard
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1811003EN
- Environmental Disclosure
- ENVPEP1811003EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Connections - Terminals
- removable screw terminal block, 0.2...2.5 mm² solid or flexible || removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor || removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel || removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel
- Electrical Circuit Type
- NC pair
- Function Of Module
- emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches
- Product Or Component Type
- safety module
- Range Of Product
- Harmony Safety Automation
- Safety Level
- can reach PL e/category 4 for normally open relay contact ISO 13849-1 || can reach SILCL 3 for normally open relay contact IEC 62061 || can reach SIL 3 for normally open relay contact IEC 61508 || can reach PL c/category 1 for normally closed relay contact ISO 13849-1 || can reach SILCL 1 for normally closed relay contact IEC 62061 || can reach SIL 1 for normally closed relay contact IEC 61508
- Safety Module Application
- for emergency stop and protective guard applications
- Safety Module Name
- XPSBAC
- Safety Reliability Data
- MTTFd > 30 years for normally open relay contact ISO 13849-1 || Dcavg >= 99 % for normally open relay contact ISO 13849-1 || PFHd = 0.95E-09 for normally open relay contact ISO 13849-1 || HFT = 1 for normally open relay contact IEC 62061 || PFHd = 0.95E-09 for normally open relay contact IEC 62061 || SFF > 99% for normally open relay contact IEC 62061 || HFT = 1 for normally open relay contact IEC 61508-1 || PFHd = 0.95E-09 for normally open relay contact IEC 61508-1 || SFF > 99% for normally open relay contact IEC 61508-1 || type = B for normally open relay contact IEC 61508-1 || MTTFd > 30 years for normally closed relay contact ISO 13849-1 || DC > 60 % for normally closed relay contact ISO 13849-1 || PFHd = 0.95E-09 for normally closed relay contact ISO 13849-1 || HFT=0 for normally closed relay contact IEC 62061 || PFHd = 0.95E-09 for normally closed relay contact IEC 62061 || SFF > 60% for normally closed relay contact IEC 62061 || HFT=0 for normally closed relay contact IEC 61508-1 || PFHd = 0.95E-09 for normally closed relay contact IEC 61508-1 || SFF > 60% for normally closed relay contact IEC 61508-1 || type = B for normally closed relay contact IEC 61508-1
- [Us] Rated Supply Voltage
- 24 V AC - 15...10 % || 24 V DC - 20...20 %
