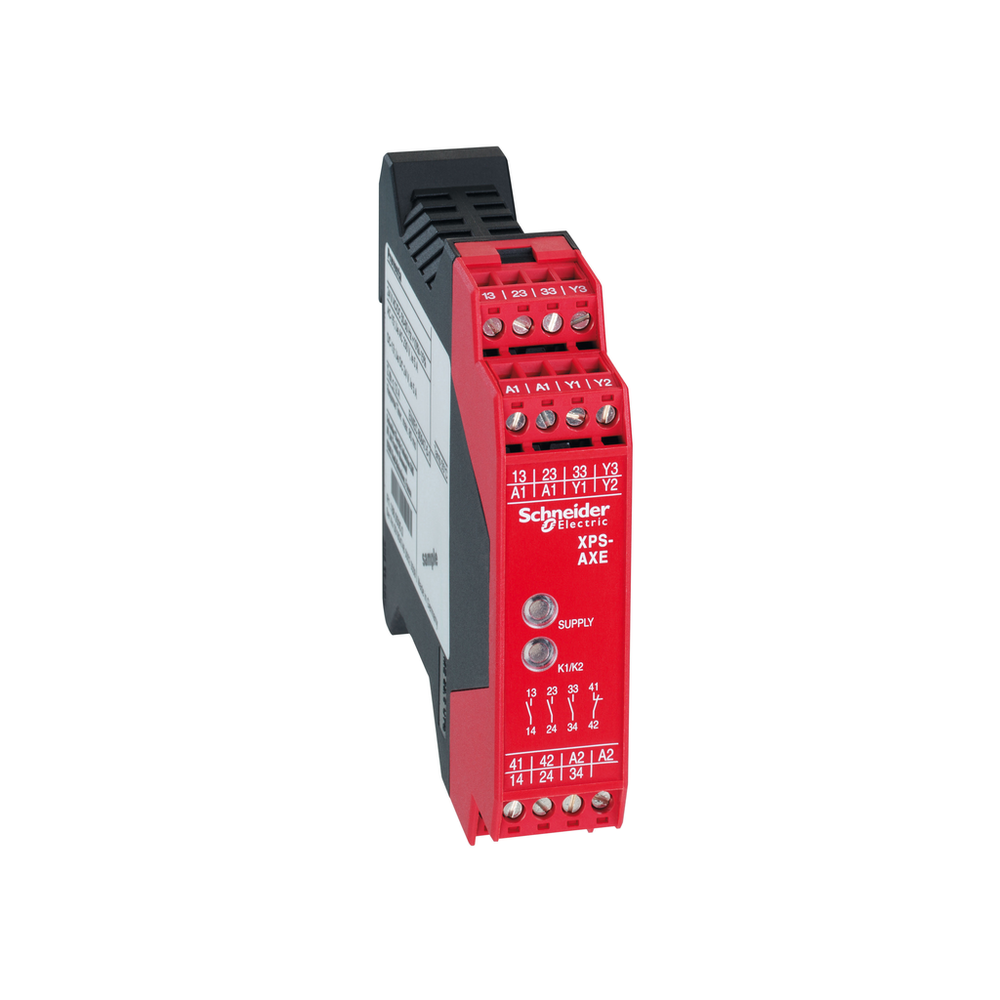

Schneider Electric XPSAXE5120C
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This XPSAXE safety module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1. 24V AC/DC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has spring terminals for fast and reliable wiring of safety circuits.module XPSAXE - stop and switch monitoring - 24 V DC/AC
Schneider Electric XPSAXE5120C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 6 A gG instantaneous outputs
- Breaking Capacity
- 1.5 A 24 V DC-13)50 ms relay output
- 3600 VA inrush AC-15 B300 relay output || 360 VA holding AC-15 B300 relay output
- Local Signalling
- 2 LEDs
- Maximum Power Consumption In Va
- 4 VA DC
- Maximum Response Time On Input Open
- 80 ms
- Minimum Output Current
- 10 mA relay output
- Minimum Output Voltage
- 17 V relay output
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 0.229 kg
- Output Thermal Current
- 6 A instantaneous and time delay outputs
- Supply Frequency
- 50/60 Hz
- Synchronisation Time Between Inputs
- < 0.5 s
- [Uc] Control Circuit Voltage
- 24 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV III IEC 60947-5-1 || 4 kV III DIN VDE 0110 part 1
- [Ui] Rated Insulation Voltage
- 300 V 2)IEC 60947-5-1 || 300 V 2)DIN VDE 0110 part 1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -25-75 °C
- Ip Degree Of Protection
- IP20EN/IEC 60529 || IP40EN/IEC 60529
- Product Certifications
- BG || CSA || UL
- Standards
- EN/ISO 13850 || EN 1088/ISO 14119 || EN/IEC 60204-1 || EN/IEC 60947-5-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1406024EN
- Environmental Disclosure
- ENVPEP1406024EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Connections - Terminals
- spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end || spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end || spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel || spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel || spring terminals, removable terminal block, 2 x 0.5...2 x 1 mm² flexible with cable end, with double bezel || spring terminals, removable terminal block
- Number Of Additional Circuits
- 1 NC
- Output Type
- relay instantaneous opening, 3 NO, volt-free
- Product Or Component Type
- Preventa safety module
- Range Of Product
- Preventa Safety automation
- Safety Level
- can reach PL e/category 4 EN/ISO 13849-1 || can reach SILCL 3 EN/IEC 62061
- Safety Module Application
- for emergency stop and switch monitoring
- Safety Module Name
- XPSAXE
- Safety Reliability Data
- DC > 99 % EN/ISO 13849-1 || MTTFd = 457 years EN/ISO 13849-1 || PFHd = 3E-8 1/h EN/IEC 62061
- [Us] Rated Supply Voltage
- 24 V DC - 15...10 % || 24 V AC
