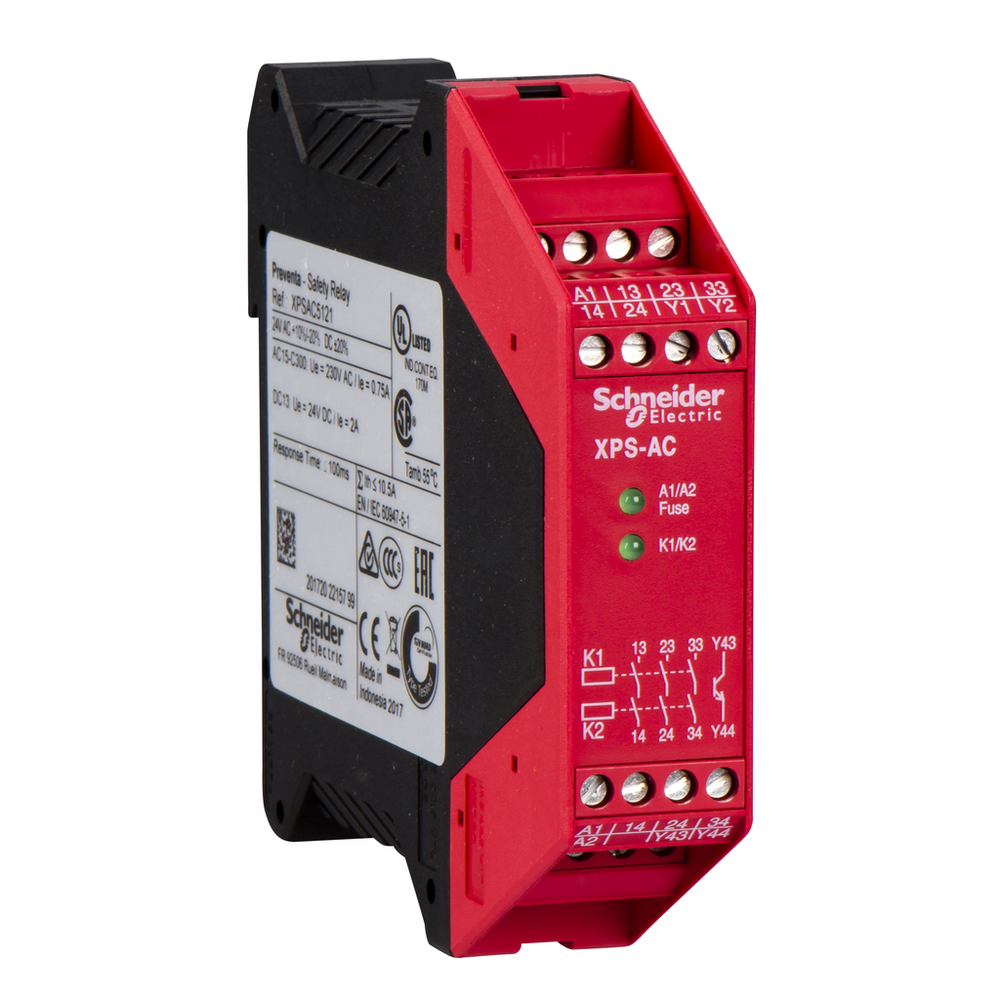

Schneider Electric XPSAC5121
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This XPSAC safety module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of Performance Level PL e/Category 4 conforming to standard EN/ISO 13849-1 and SILCL3 conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring emergency stop circuits conforming to standards EN/ISO 13850 and EN/IEC 60204-1. 24V AC/DC supply allows direct supply via an auxiliary transformer, like ABT7 or ABL6, allowing saving at installation time. It has additional solid-state output for communication with PLCs about safety status of your process.module XPSAC - Emergency stop - 24 V AC DC
Schneider Electric XPSAC5121 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 4 A gG or gL relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200 || 6 A fast blow relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200
- Breaking Capacity
- 1.5 A 24 V DC-13)50 ms relay output
- 180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output
- Current Consumption
- 40 mA 24 V DC on power supply || 90 mA 24 V AC on power supply
- [Ith] Conventional Free Air Thermal Current
- 10.5 A
- Local Signalling
- 2 LEDs
- Maximum Power Consumption In Va
- 2.5 VA AC
- Maximum Power Consumption In W
- 1.2 W DC
- Maximum Response Time On Input Open
- 100 ms
- Minimum Output Current
- 10 mA relay output
- Minimum Output Voltage
- 16 V relay output
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 0.16 kg
- Output Thermal Current
- 6 A per relay relay output
- Supply Frequency
- 50/60 Hz
- [Uc] Control Circuit Voltage
- 24 V
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV III IEC 60947-5-1 || 4 kV III DIN VDE 0110 part 1
- [Ui] Rated Insulation Voltage
- 300 V 2)IEC 60947-5-1 || 300 V 2)DIN VDE 0110 part 1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -10-55 °C
- Ambient Air Temperature For Storage
- -25-85 °C
- Ip Degree Of Protection
- IP20 terminals)EN/IEC 60529 || IP40 enclosure)EN/IEC 60529
- Product Certifications
- UL || CSA || TÜV
- Standards
- EN/IEC 60947-5-1 || EN/ISO 13850 || EN 60204-1 || EN 1088/ISO 14119
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1406024EN
- Environmental Disclosure
- ENVPEP1406024EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Connections - Terminals
- captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² flexible without cable end || captive screw clamp terminals, 1 x 0.14...1 x 2.5 mm² solid without cable end || captive screw clamp terminals, 1 x 0.25...1 x 1.5 mm² flexible with cable end, with bezel || captive screw clamp terminals, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel || captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² flexible without cable end || captive screw clamp terminals, 2 x 0.14...2 x 0.75 mm² solid without cable end || captive screw clamp terminals, 2 x 0.25...2 x 1 mm² flexible with cable end, without bezel || captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² flexible with cable end, with double bezel
- Function Of Module
- emergency stop || switch monitoring
- Number Of Additional Circuits
- 1 solid state output
- Output Type
- relay instantaneous opening, 3 NO, volt-free
- Product Or Component Type
- Preventa safety module
- Range Of Product
- Preventa Safety automation
- Safety Level
- can reach PL e/category 4 EN/ISO 13849-1 || can reach SILCL 3 EN/IEC 62061
- Safety Module Application
- for emergency stop and switch monitoring
- Safety Module Name
- XPSAC
- Safety Reliability Data
- MTTFd = 210.4 years EN/ISO 13849-1 || DC > 99 % EN/ISO 13849-1 || PFHd = 3.56E-9 1/h EN/IEC 62061
- Type Of Start
- unmonitored
- [Us] Rated Supply Voltage
- 24 V AC - 20...10 % || 24 V DC - 20...20 %
