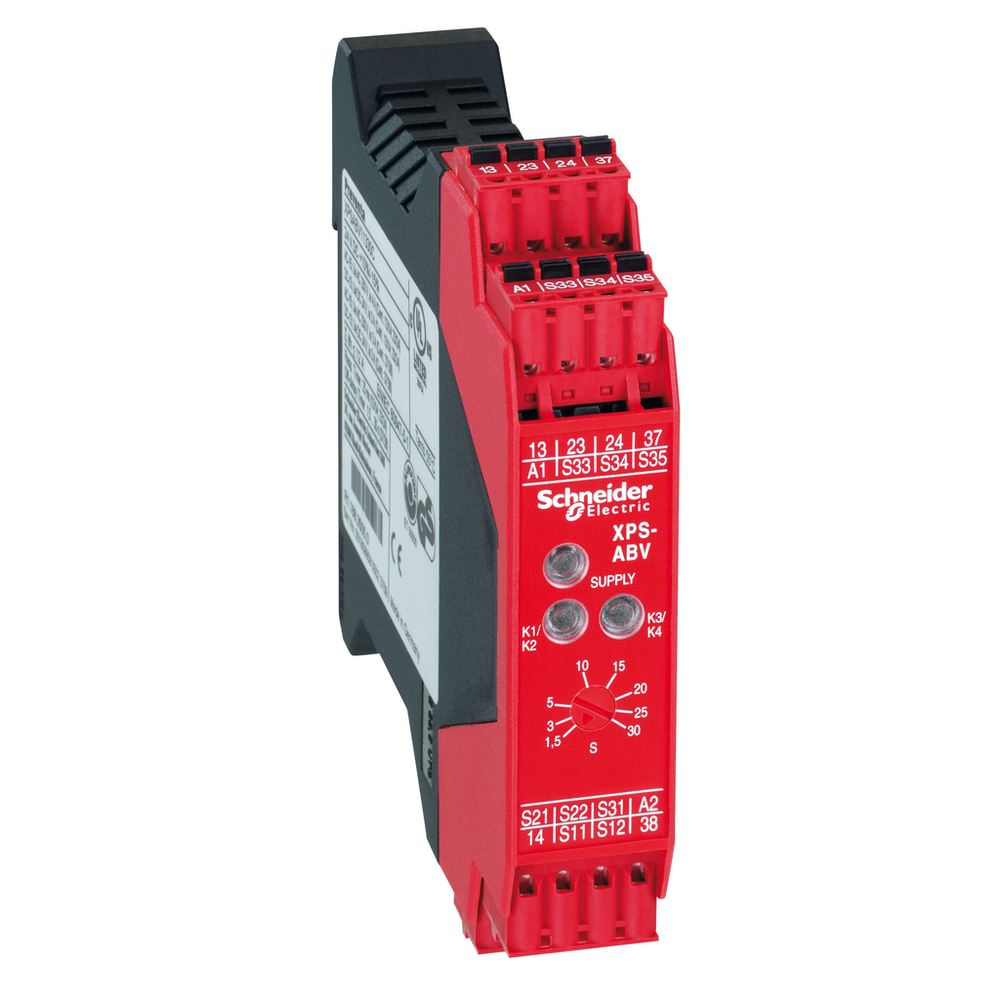

Schneider Electric XPSABV11330C
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This XPSABV safety module monitors emergency shutdown pushbuttons and limit switches. It meets the requirements of PL e/Category 4 (instantaneous safety outputs), PL d/Category 3 (time delayed safety outputs) conforming to EN/ISO 13849-1. It meets also the requirements of SILCL3 (instantaneous safety outputs) and SILCL2 (time delayed safety outputs) conforming to EN/IEC 61508 and EN/IEC 62061. It can be used for monitoring Emergency stop circuits conforming to EN/ISO 13850 and EN/IEC 60204-1 standards, and electrical monitoring of switches in protection devices conforming to EN/ISO 14119 standard. It has removable terminals for easier and better control wires tightening, thus improving installation reliability. It has spring terminals for fast and reliable wiring of safety circuits.module XPSABV - stop and switch monitoring - 24 V AC/DC
Schneider Electric XPSABV11330C is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Associated Fuse Rating
- 6 A gG instantaneous and time delay outputs
- Breaking Capacity
- 1.5 A 24 V DC-13)50 ms relay output
- 3600 VA inrush AC-15 B300 || 360 VA holding AC-15 B300
- Input Protection Type
- internal, electronic
- [Ith] Conventional Free Air Thermal Current
- 12 A
- Local Signalling
- 3 LEDs
- Maximum Power Consumption In W
- 3 W
- Maximum Response Time On Input Open
- 200 ms
- Minimum Output Current
- 10 mA relay output
- Minimum Output Voltage
- 17 V relay output
- Mounting Support
- 35 mm symmetrical DIN rail
- Net Weight
- 0.275 kg
- Output Thermal Current
- 6 A instantaneous and time delay outputs
- Synchronisation Time Between Inputs
- < 0.5 s
- Time Delay Range
- 1.5...30 s || 0.15...3 s
- [Uc] Control Circuit Voltage
- 24 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV III IEC 60947-5-1 || 4 kV III DIN VDE 0110 part 1
- [Ui] Rated Insulation Voltage
- 300 V 2)IEC 60947-5-1 || 300 V 2)DIN VDE 0110 part 1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-55 °C
- Ambient Air Temperature For Storage
- -25-75 °C
- Ip Degree Of Protection
- IP20EN/IEC 60529 || IP40EN/IEC 60529
- Product Certifications
- UL || CSA || BG
- Standards
- EN/IEC 60947-5-1 || EN/ISO 13850 || EN/IEC 60204-1 || EN 1088/ISO 14119
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1406024EN
- Environmental Disclosure
- ENVPEP1406024EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Connections - Terminals
- spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² solid without cable end || spring terminals, removable terminal block, 1 x 0.2...1 x 2.5 mm² flexible without cable end || spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, without bezel || spring terminals, removable terminal block, 1 x 0.25...1 x 2.5 mm² flexible with cable end, with bezel || spring terminals, removable terminal block, 2 x 0.5...2 x 1 mm² flexible with cable end, with double bezel || spring terminals, removable terminal block
- Number Of Additional Circuits
- 0
- Output Type
- relay instantaneous opening, 2 NO, volt-free || relay time delay opening, 1 NO, volt-free
- Product Or Component Type
- Preventa safety module
- Range Of Product
- Preventa Safety automation
- Safety Level
- can reach PL d/category 3 time delay safety outputs EN/ISO 13849-1 || can reach PL e/category 4 instantaneous safety outputs EN/ISO 13849-1 || can reach SILCL 3 instantaneous safety outputs EN/IEC 62061 || can reach SILCL 2 time delay safety outputs EN/IEC 62061
- Safety Module Application
- for emergency stop and switch monitoring
- Safety Module Name
- XPSABV
- Safety Reliability Data
- MTTFd = 53 years instantaneous safety outputs EN/ISO 13849-1 || MTTFd = 53 years time delay safety outputs EN/ISO 13849-1 || DC > 99 % instantaneous safety outputs EN/ISO 13849-1 || DC = 60...90 % time delay safety outputs EN/ISO 13849-1 || PFHd = 3E-8 1/h instantaneous safety outputs EN/IEC 62061 || PFHd = 2E-7 1/h time delay safety outputs EN/IEC 62061
- [Us] Rated Supply Voltage
- 24 V DC - 15...10 %
