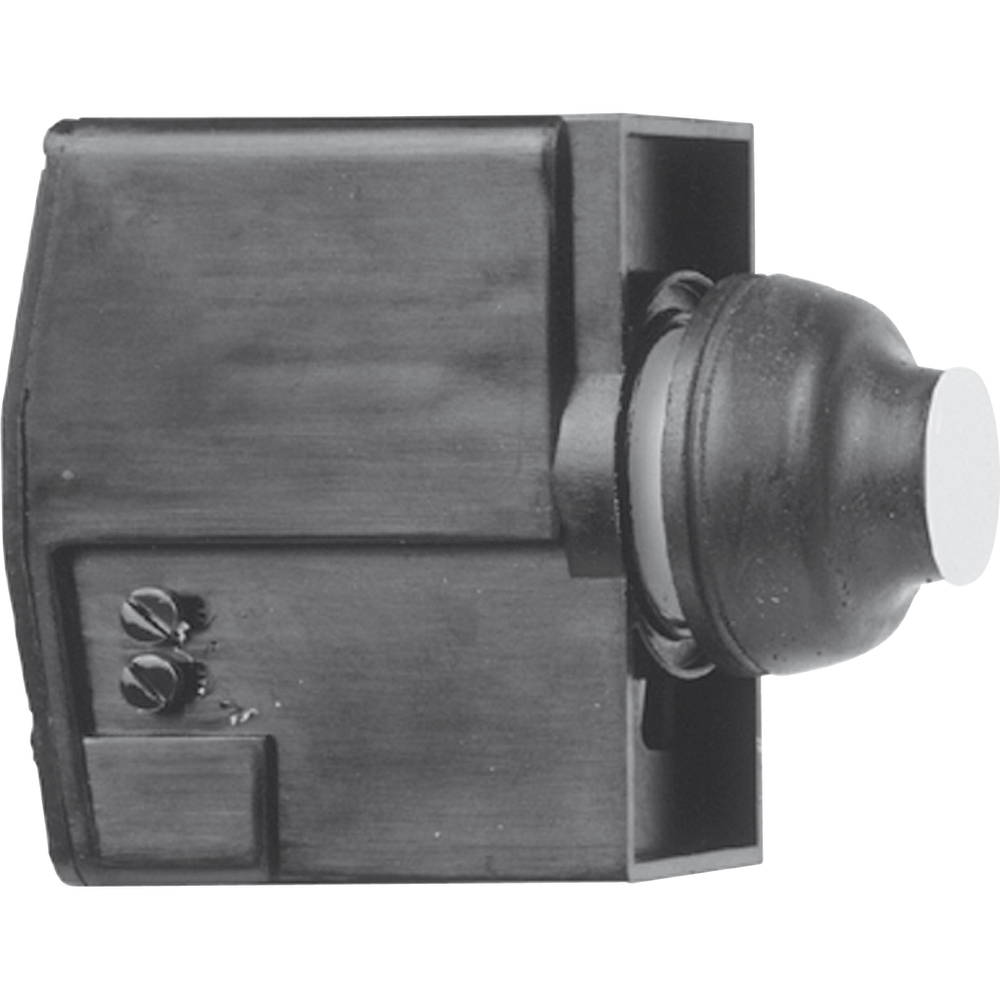

Schneider Electric XEAB15361
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Booted push button, Harmony XAC, control circuit, black, booted, 1NO + 1NC at start of travel, 1NO at end of travel, 0...15V DC
Schneider Electric XEAB15361 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Connections - Terminals
- terminal connectors, 1 x 2.5 mm² || terminal connectors, 2 x 1.5 mm²
- Contacts Type And Composition
- 1 NC + 1 NO at start of travel || 1 NO at end of travel
- Current Consumption
- < 15 mA
- [Ithe] Conventional Enclosed Thermal Current
- 6 A
- Mechanical Durability
- 1000000 cycles
- Net Weight
- 0.065 kg
- Operating Force
- 4 N at start of travel || 9 N at end of travel
- Rated Power In Va
- 30 VA AC-15 1000000 cycles 110 V 50/60 Hz IEC 60947-5-1 appendix C || 30 VA AC-15 1000000 cycles 230 V 50/60 Hz IEC 60947-5-1 appendix C || 30 VA AC-15 1000000 cycles 48 V 50/60 Hz IEC 60947-5-1 appendix C
- Rated Power In W
- DC-13 12 W 110 V inductive IEC 60947-5-1 appendix C 1000000 cycles || DC-13 48 W 48 V inductive IEC 60947-5-1 appendix C 1000000 cycles
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -40-70 °C
- Ip Degree Of Protection
- IP65 conforming to IEC 60529
- Standards
- IEC 60947-5-1
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Control Circuit Type
- DC
- Control Station Name
- XACM || XACB
- Electrical Circuit Type
- control circuit
- Operating Travel
- 11 mm
- Product Or Component Type
- booted push-button
- Range Of Product
- Harmony XAC
- [Us] Rated Supply Voltage
- 0...-15 V
