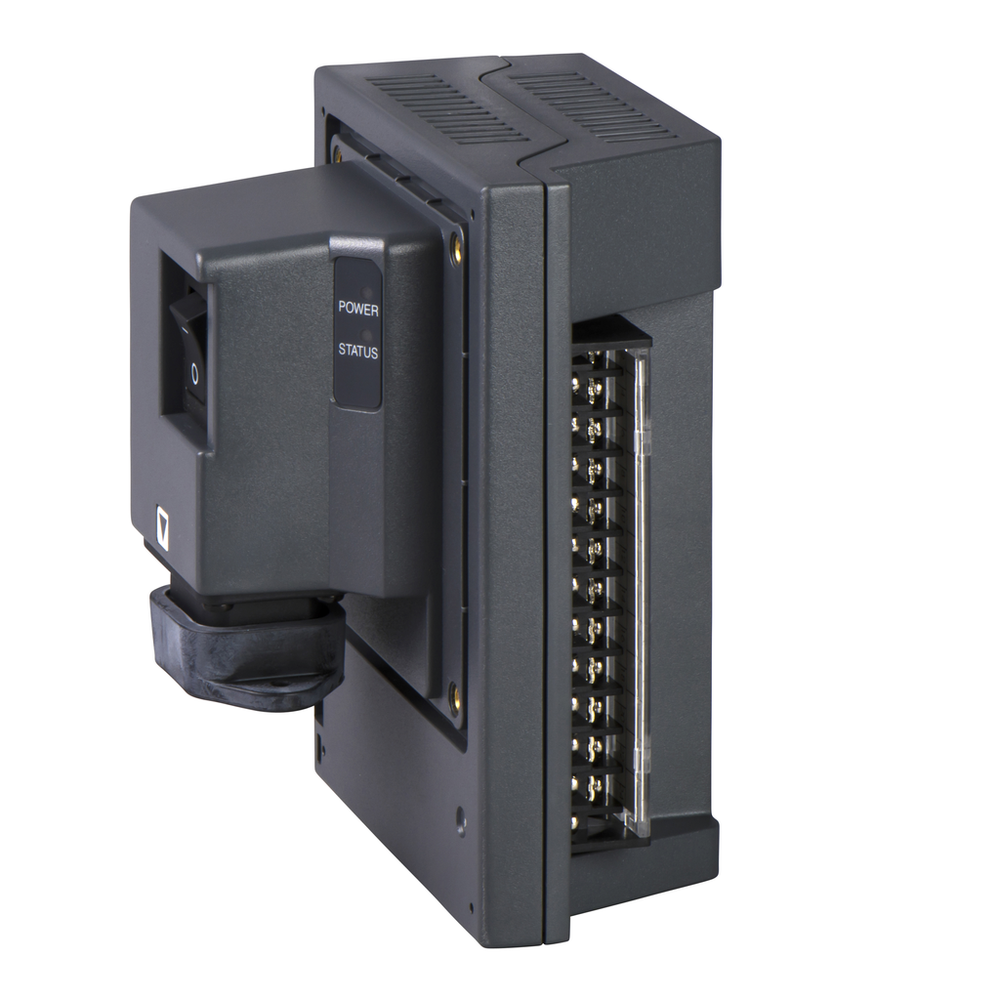

Schneider Electric XBTZGJBOX
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
This Magelis XBTZ is a junction box for XBTGH touchscreen advanced hand-held panel. It enables 24V dc power supply to XBTGH terminal and connection of various safety inputs/outputs. It also enables connection on multiprotocol serial link (9-way SUB-D) or Ethernet TCP/IP (RJ45). It can be mounted on 35 mm symmetrical DIN rail.junction box for advanced hand-held terminal
Schneider Electric XBTZGJBOX is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Electrical Connection
- 1 connector 24-pin connector hand-held panel || 1 connector RJ45 Ethernet TCP/IP || 1 male connector SUB-D 9 RS232C/RS422/RS485 <= 115.2 kbits/s COM1 serial link || screw terminal block 24 inputs/outputs
- Enclosure Material
- PPT
- Fixing Mode
- by 4 M4 screws 1.5 to 10 mm thick panel || clip-on 35 mm symmetrical DIN rail
- Inrush Current
- 30 A
- Marking
- CE
- Port Ethernet
- 10BASE-T/100BASE-TX
- Power Consumption In W
- 6.3 W
- Supply Voltage Limits
- 19.2-28.8 V
- [Us] Rated Supply Voltage
- 24 V DC
Contractual warranty
- Warranty
- 18 months
Environment
- Ambient Air Temperature For Operation
- 0-50 °C
- Ambient Air Temperature For Storage
- -20-60 °C
- Immunity To Microbreaks
- 10 ms
- Ip Degree Of Protection
- IP20 rear panel) || IP65 front panel)
- Operating Altitude
- <= 6561.68 ft (2000 m)
- Product Certifications
- cULus || C-tick
- Relative Humidity
- 0-90 % without condensation or dripping water
- Resistance To Electromagnetic Fields
- 10 V/m IEC 61000-4-3
- Resistance To Electrostatic Discharge
- 6 kV IEC 61000-4-2 level 3
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 level 3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Standards
- FCC Class A || EN 61131-2 || IEC 61000-6-2 || UL 508
- Vibration Resistance
- 1 gn 9-150 Hz) || 3.5 mm 5-9 Hz)
Offer Sustainability
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI1404005EN
- Environmental Disclosure
- ENVPEP1404005EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free
- Yes
- Reach Free Of Svhc
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Product Or Component Type
- junction box
- Product Specific Application
- for XBTGH advanced hand-held panel
- Range Of Product
- Magelis XBTGH
