Description

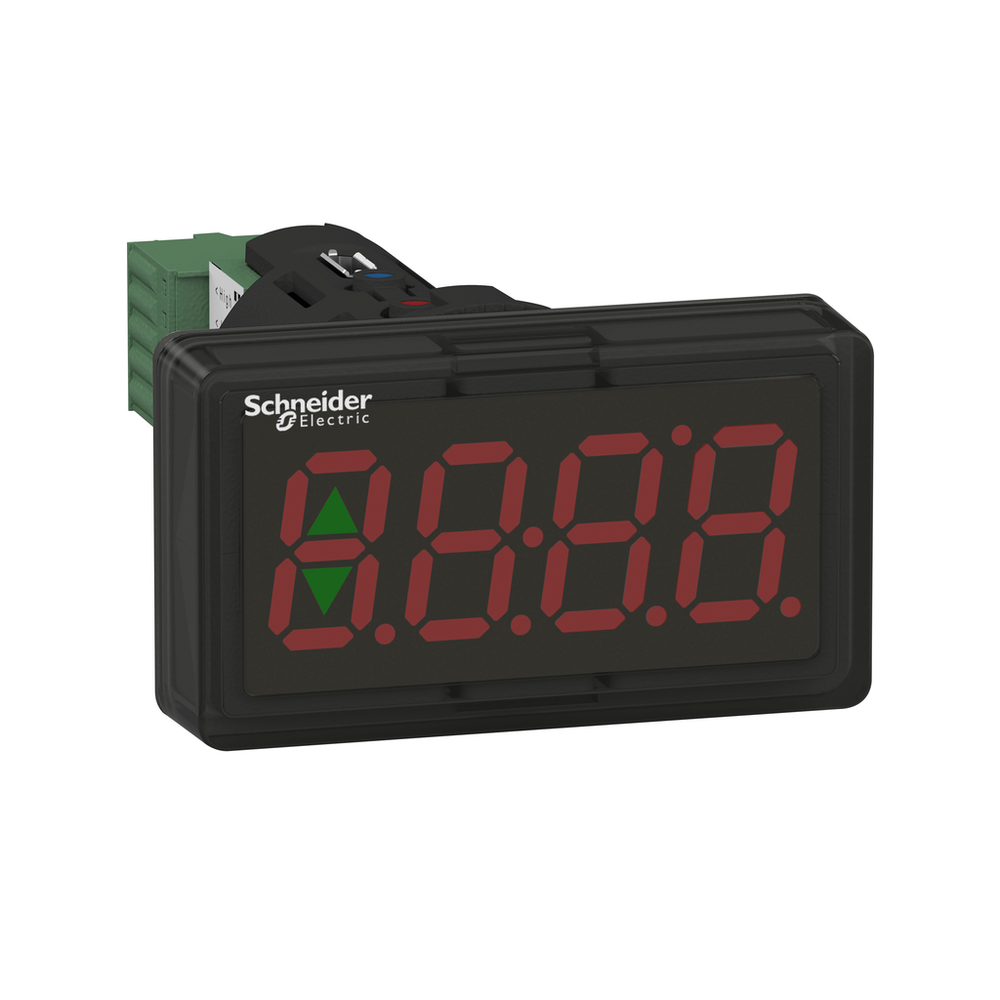

This display module provides a versatile interface for your machines It is impact resistant (strength), dust resistant (strength), water resistant (strength), corrosion resistant (strength), and vibration resistant (strength) thanks to its IP65, making it ideal for operation in harsh (heavy) environmentsDisplay module, Harmony XB5, Digital panel meter, plastic, black, 22mm, 4 digit red LED display, 4...20mA input
Schneider Electric XBH1AA0R4 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Complementary
- Accuracy
- +/- 0.15 % of the measuring range + 1 digit
- Analogue Input Range
- 4...20 mA DC
- Brightness
- fixed
- Connections - Terminals
- spring terminals, 1 x 0.2...1 mm² AWG 24...AWG 17)
- Counting Capacity
- -999...9999
- Depth
- 78.2 mm
- Discrete Output Current
- 0.5 A
- Discrete Output Voltage
- 30 V DC
- Display Colour
- red
- Display Type
- 7 segments LED
- Flame Retardance
- UL94-V1
- Height
- 29.5 mm
- Housing Material
- plastic
- Maximum Voltage Drop
- 6 V
- Mounting Diameter
- 22.5 mm
- Net Weight
- 0.032 kg
- Solid State Output Type
- 2 x power MOSFET
- Temperature Drift
- 50 ppm/°C
- Tightening Torque
- 1.3 N.m +/- 0.2 N.m || 11.5 lb.in +/- 1.8 lb.in
- Width
- 51.5 mm
Environment
- Ambient Air Temperature For Operation
- -20-60 °C
- Ambient Air Temperature For Storage
- -20-85 °C
- Ip Degree Of Protection
- IP65 IEC 60529 front panel)
- Standards
- IEC 61326-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
Offer Sustainability
- Eu Rohs Directive
- Under investigation
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Specifications
- Display Digits
- 4 - 14 mm
- Product Or Component Type
- display module
- Range Of Product
- Harmony XB5
